410 DIN Programming for the Y Axis
5.6 Linear and Circular Movements in the Y Axis

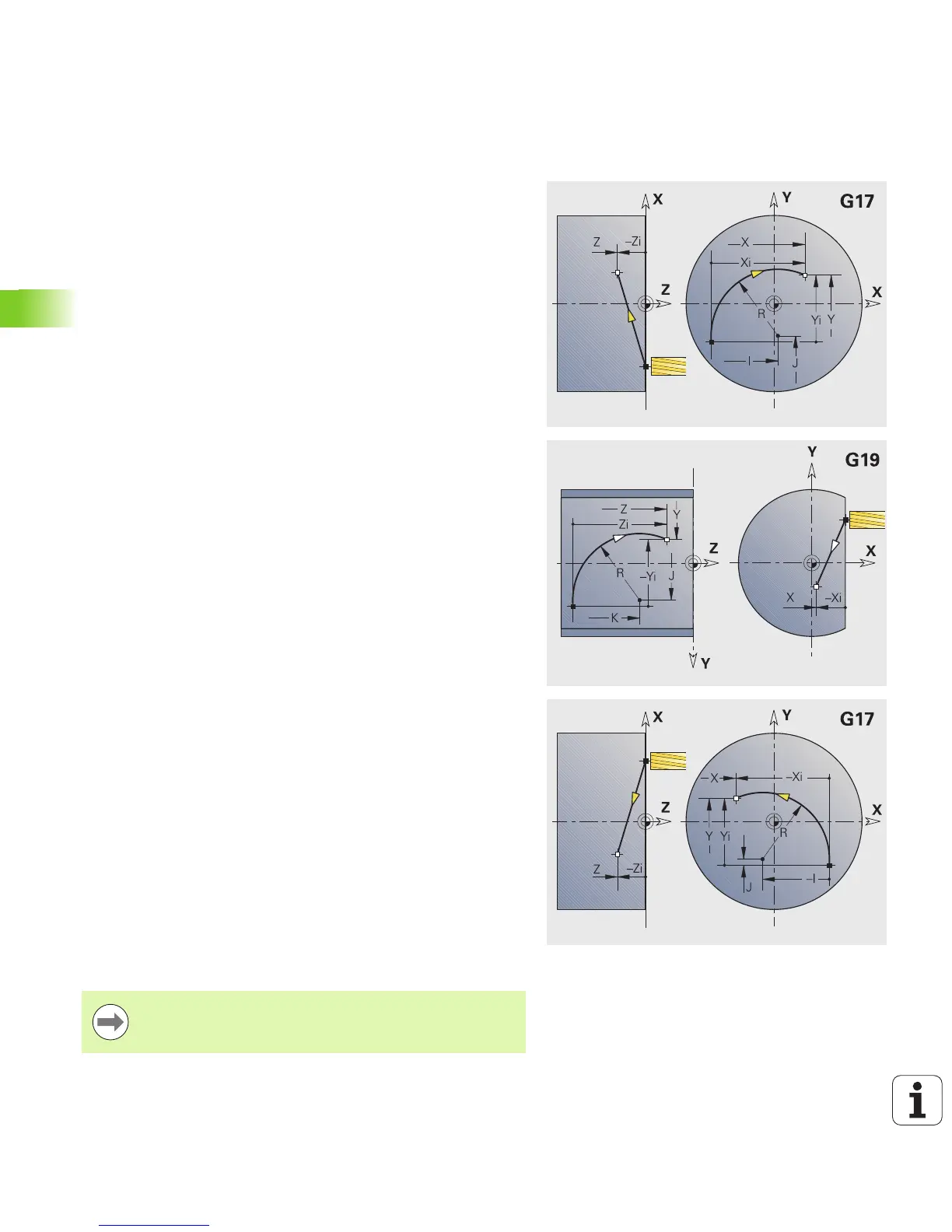

Milling: Circular movement G12, G13—absolute
center coordinates
G12/G13 moves the tool in a circular arc at the feed rate to the “end
point.”
The execution of G12/G13 varies depending on the working plane:
G17 Interpolation in the XY plane
Infeed in Z direction
Center definition: with I, J
G18 Interpolation in the XZ plane
Infeed in Y direction
Center definition: with I, K
G19 Interpolation in the YZ plane
Infeed in X direction
Center definition: with J, K
If you do not program the center, MANUALplus automatically
calculates the possible solutions for the center and chooses that point
as the center which results in the shortest arc.
Parameters
X Final point (diameter)
Y Final point
Z Final point
I Absolute center point (radius)
J Absolute center point
K Absolute center point
R Radius
Q Point of intersection. Final point if the line segment intersects
a circular arc (default: 0):
Q=0: Near point of intersection
Q=1: Far point of intersection
B Chamfer/rounding. Defines the transition to the next contour
element. When entering a chamfer/rounding, program the
theoretical end point.
No entry: Tangential transition
B=0: No tangential transition
B>0: Rounding radius
B<0: Chamfer width
E Special feed factor for the chamfer/rounding (default: 1)
Special feed rate = active feed rate * E (0 < E <= 1)
Programming X, Y, Z: Absolute, incremental or modal or
“?”
