116 smart.Turn Units
2.9 Units—Milling, Face

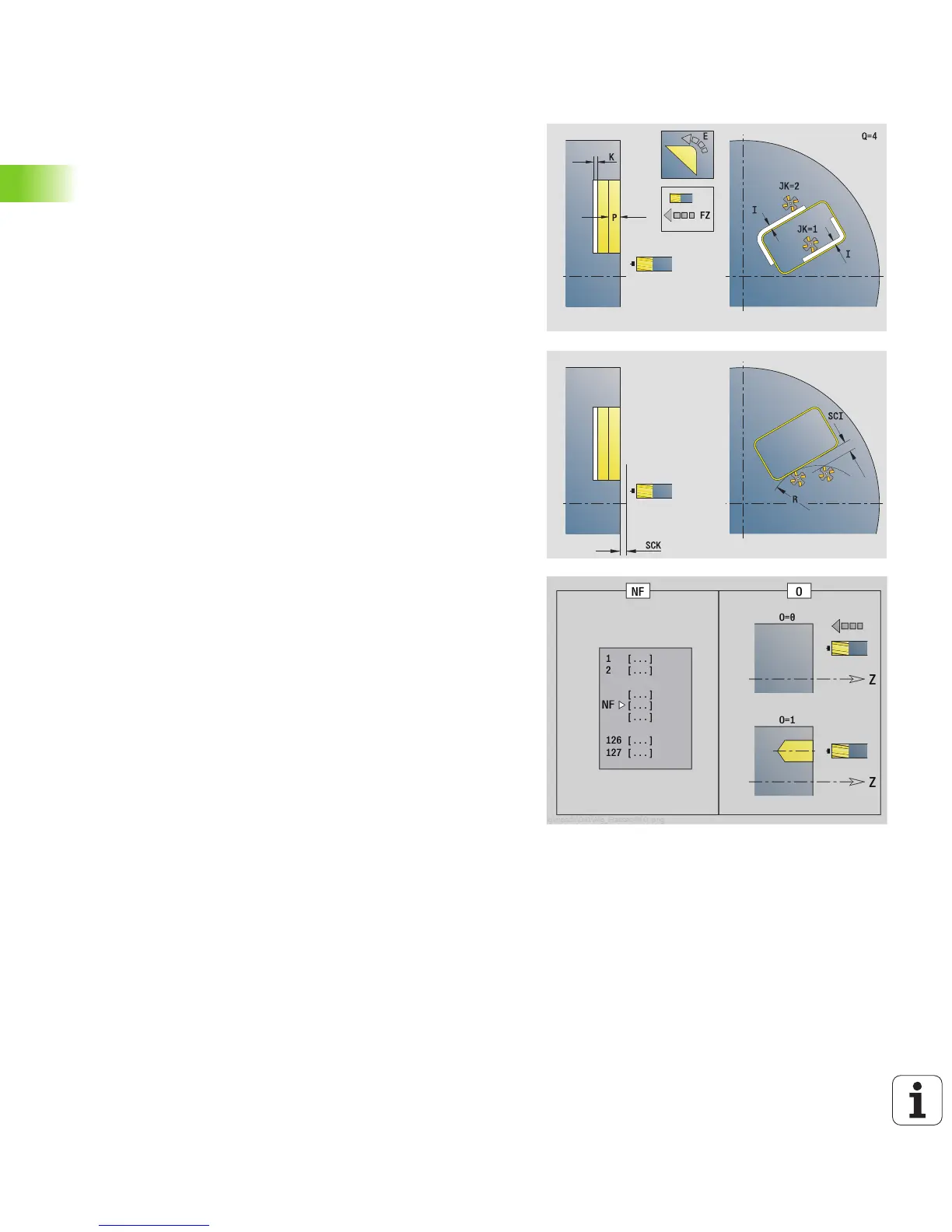

Cycle form
JK Milling location
0: On the contour
1: Within the contour
2: Outside the contour
H Mill cutting direction
0: Up-cut milling
1: Climb milling
P Maximum approach (maximum infeed)
I Contour-parallel oversize
K Infeed-direction oversize
FZ Infeed rate
E Reduced feed rate
R Approach radius
O Plunging behavior
0: Straight (vertical plunge)—The cycle moves the tool to
the starting point; the tool plunges at feed rate and mills
the contour.
1: In predrilling—The cycle positions the tool above the
hole; the tool plunges and mills the contour.
NF Position mark (only if O=1)
