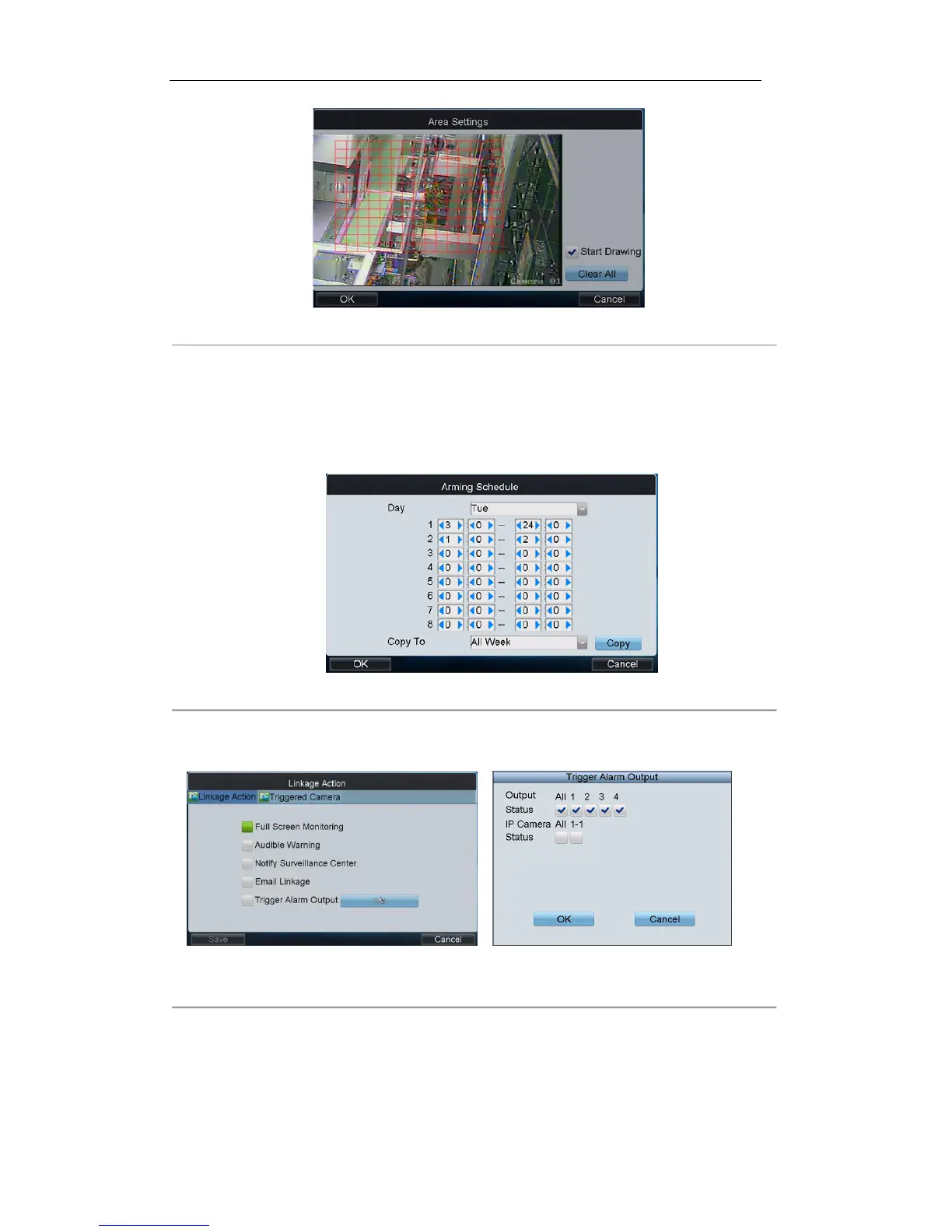

Figure 4. 14 Area Settings
6. Click Start Drawing, and then use the mouse to click two points on the live view screen to draw area for
motion detection.
7. To clear the motion detection area (s), click Clear All.
8. Click the Set button beside Arming Schedule to configure the arming schedule of motion detection for the
current camera.
Figure 4. 15 Arming Schedule
9. Click the Set button beside Linkage Action to configure the linkage method. If the Trigger Alarm Output is
selected, you should click the Set button to configure the triggered alarm output (s).
Figure 4. 16 Linkage Action
10. After having configured the above setting and if you want to configure the other cameras with the same
settings, choose the camera and click Copy. You can also select All to copy the current settings to all cameras.
11. Click Apply to save the current settings and Cancel to return to the previous interface.

HIKVISION DS-1100KI Specifications

General

Split keyboard	No
Keyboard layout	-
Device interface	RS-232 + RS-485 + RJ-45
Recommended usage	Office
Keyboard form factor	Mini
Connectivity technology	Wired
Display type	TFT
Product color	Black
Keyboard style	Straight
Ergonomic design	Yes
Product type	Control panel
Housing material	Plastic
Quantity per pack	1 pc(s)
USB 2.0 ports quantity	1
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Operating voltage	12 V
Power source type	DC

Weight and Dimensions

Depth	110 mm
Width	435 mm
Height	193 mm
Keyboard weight	2000 g
Keyboard dimensions (WxDxH)	435 x 110 x 193 mm
