Cable Group No. Funcon Color Terminal
Name
Descripon
D6 Yellow/Grey BUTTON Exit Door
Wiring
D7 Doorbell White/Brown BELL+ Doorbell
Wiring
D8 White/Blue BELL-
4.2 External Device Wiring
Wire the external device.

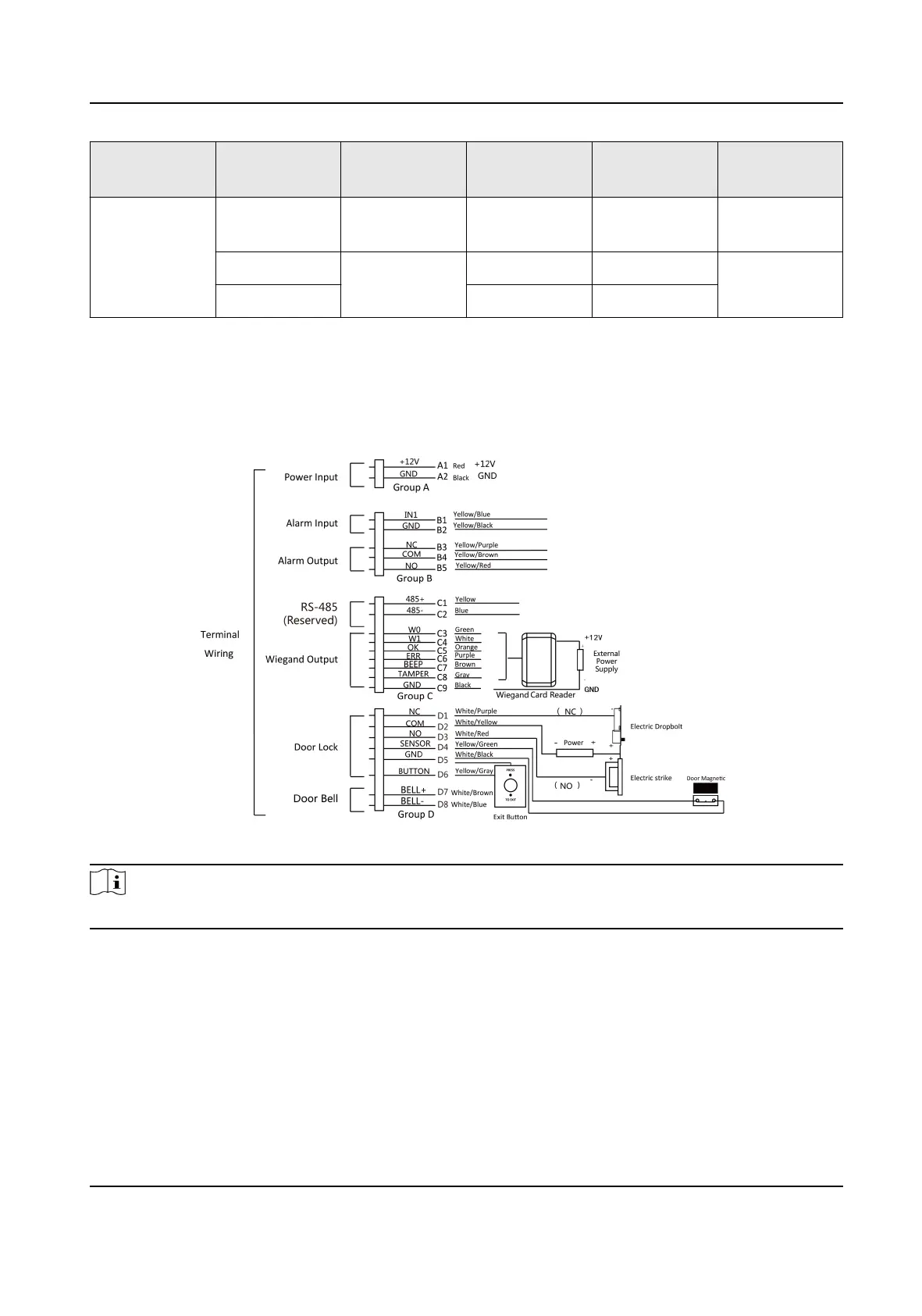

The wiring diagram is as follows.
Figure 4-2 External Device Wiring
Note
The external power supply and the access control terminal should use the same GND cable.
DS-K1T804B Series Fingerprint Access Control Terminal User Manual
9
