HIKVISION ERT-F204 Series User Manual

ERT-F2xxx DVR User Manual
UM ERT-F2xxx 030118NA 12

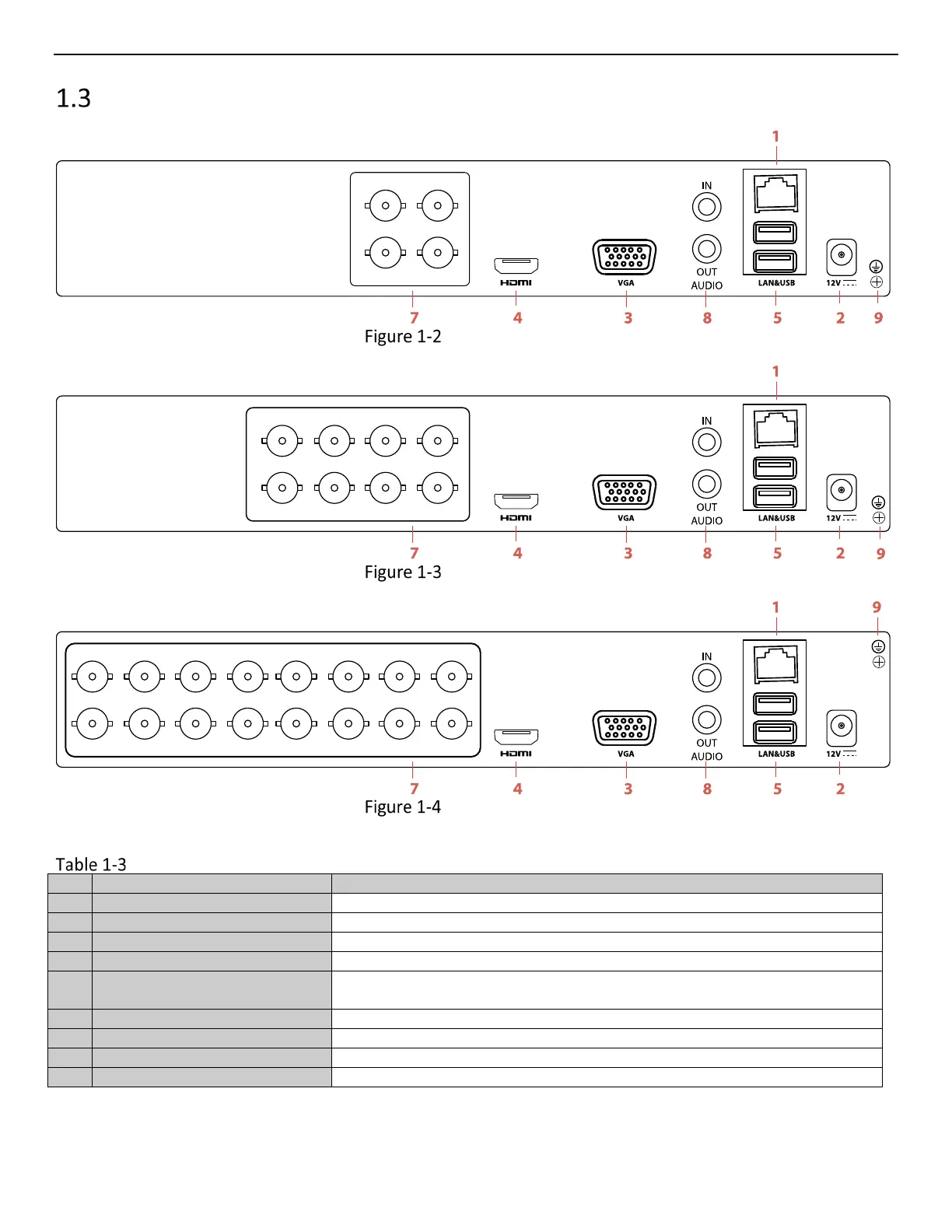

Rear Panels
ERT-204 Rear Panel
ERT-208 Rear Panel
ERT-216 Rear Panel
Description of Rear Panels
No.
Item
Description
1
LAN Network Interface
1 10 /100 /1000 Mbps self-adaptive Ethernet interface
2
Power Supply
12 VDC power supply
3
VGA Interface
DB9 connector for VGA output to display local video output and menu
4
HDMI Interface
HDMI video output connector
5 USB Interface
Universal Serial Bus (USB) ports for additional devices such as USB
mouse and USB Hard Disk Drive (HDD)
6
---
---
7
Analog Camera Inputs
BNC connectors
8
Audio I/O
RCA connectors
9
Ground
Ground (needs to be connected when DVR starts up)
