ERT-F2xxx DVR User Manual
UM ERT-F2xxx 030118NA 54

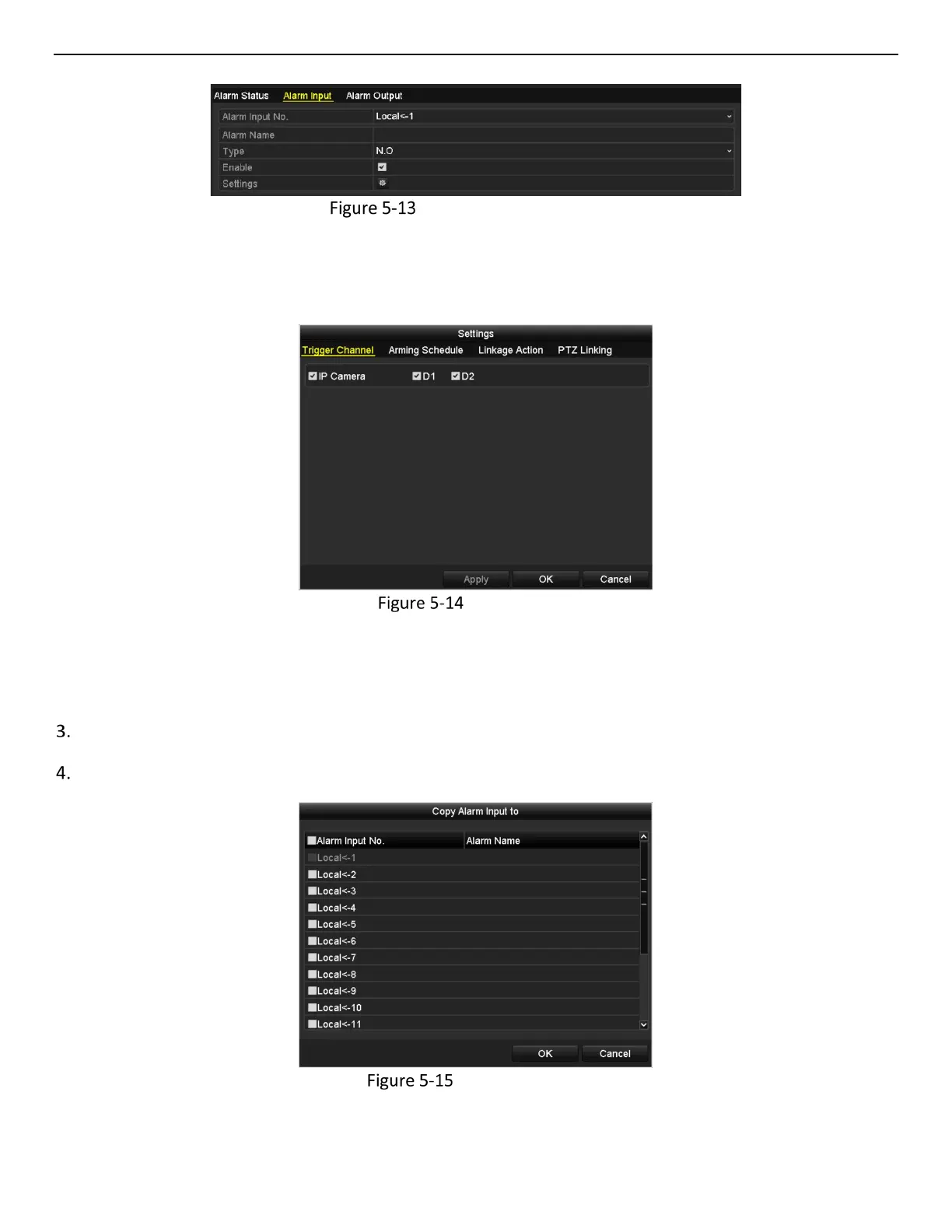

Alarm Settings- Alarm Input
• Select Alarm Input number and configure alarm parameters.
• Choose N.O. (normally open) or N.C. (normally closed) for alarm type.
• Check the Enable checkbox.
• Click Settings.
Alarm Settings
• Choose the alarm triggered recording channel.
• Check the checkbox to select channel.
• Click Apply to save settings.
• Click OK to back to the upper level menu.
Repeat the above steps to configure other alarm input parameters.
If the settings can also be applied to other alarm inputs, click Copy and choose the alarm input number.
Copy Alarm Input
