Hill-Rom Century+ P1400 - Manual Operation

General Operation
Chapter 1: Introduction
Page 1 - 20 Century+™ Bed Service Manual (man241)
Manual Operation
Head Function—Manual Operation
You can raise or lower the head function using a Hill-Rom P2217 IV rod (A)
as a crank (see figure 1-9 on page 1-20). Access the head drive screw assembly
(B) from the head end of the bed.

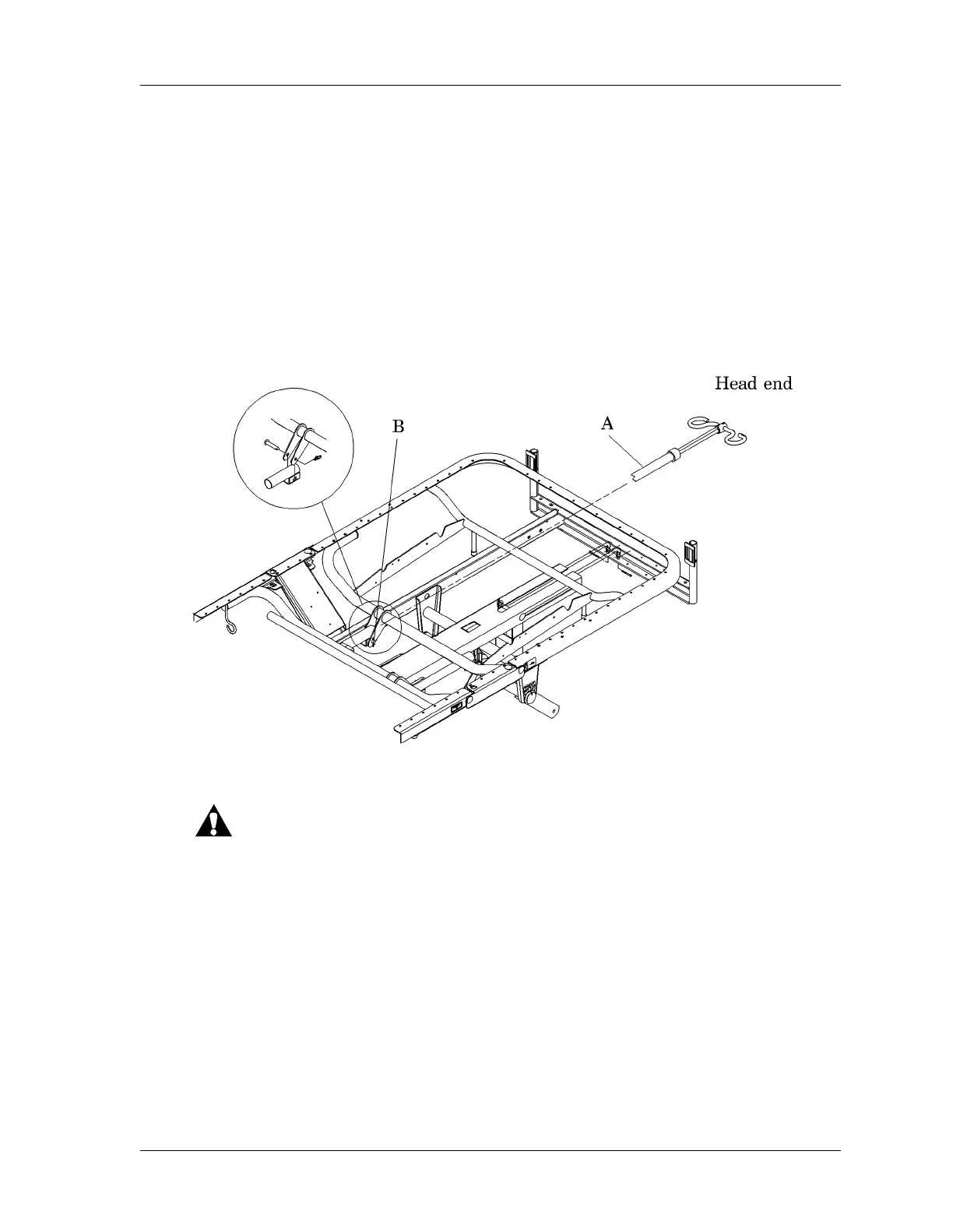

Figure 1-9. Head Function—Manual Operation
WARNING:
Unplug the bed from its power source, and disconnect the motor before
inserting the IV rod for manual operation. Failure to do so could result in
personal injury or equipment damage.
1. Unplug the bed from its power source.
2. Disconnect the head drive motor.
3. Extend the IV rod, and insert the lower end through the head end of the bed
to engage the roll pin of the head drive screw.
m241_122
