2.5 The Knee Down Function Does Not Work
1. The knee down function does not work when it is activated from either the
left siderail or the right siderail.
Yes No
↓→Go to step 19.
2. Perform the following steps:
a. Set your VOM to measure volts DC.
SHOCK HAZARD:
Use extreme care when checking live voltage. Do not touch live
terminals, wires, or ground. Failure to use caution could result in
serious electrical shock injury.
b. At P200 (A) (see figure 2-8 on page 2-35), check the voltage between
VSS (pin 21) and the knee down function (pin 6) (see figure 3-1 on
page 3-3, and figure 3-4 on page 3-5).

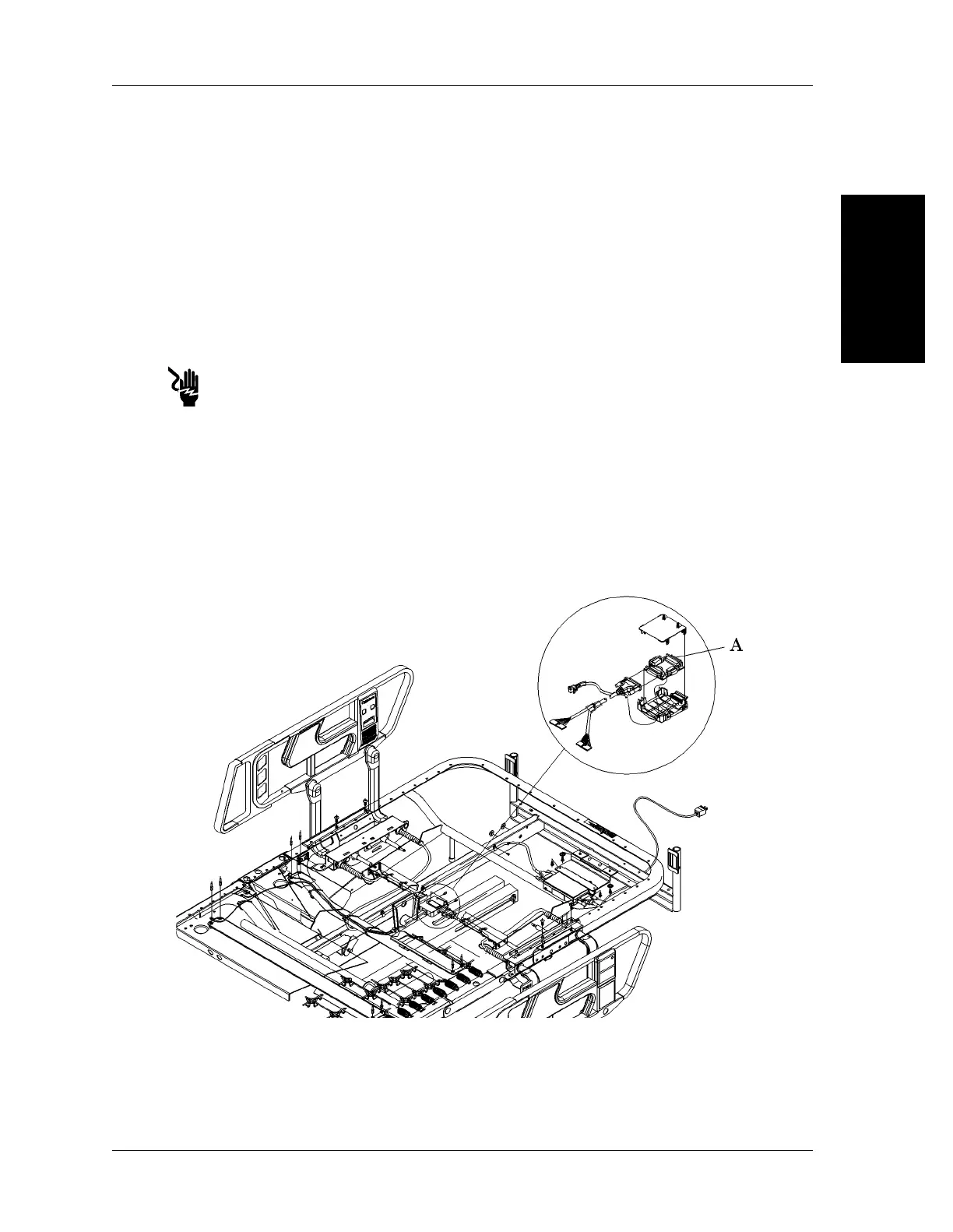

Figure 2-8. P200 Location
c. Activate the knee down switch.
m241_111
