Hilow Function—Manual Operation
You can raise or lower the bed using the Hill-Rom P2217 IV rod (A) as a crank
(see figure 1-11 on page 1-23). Access the hilow drive screw (B) from the head
end of the bed.

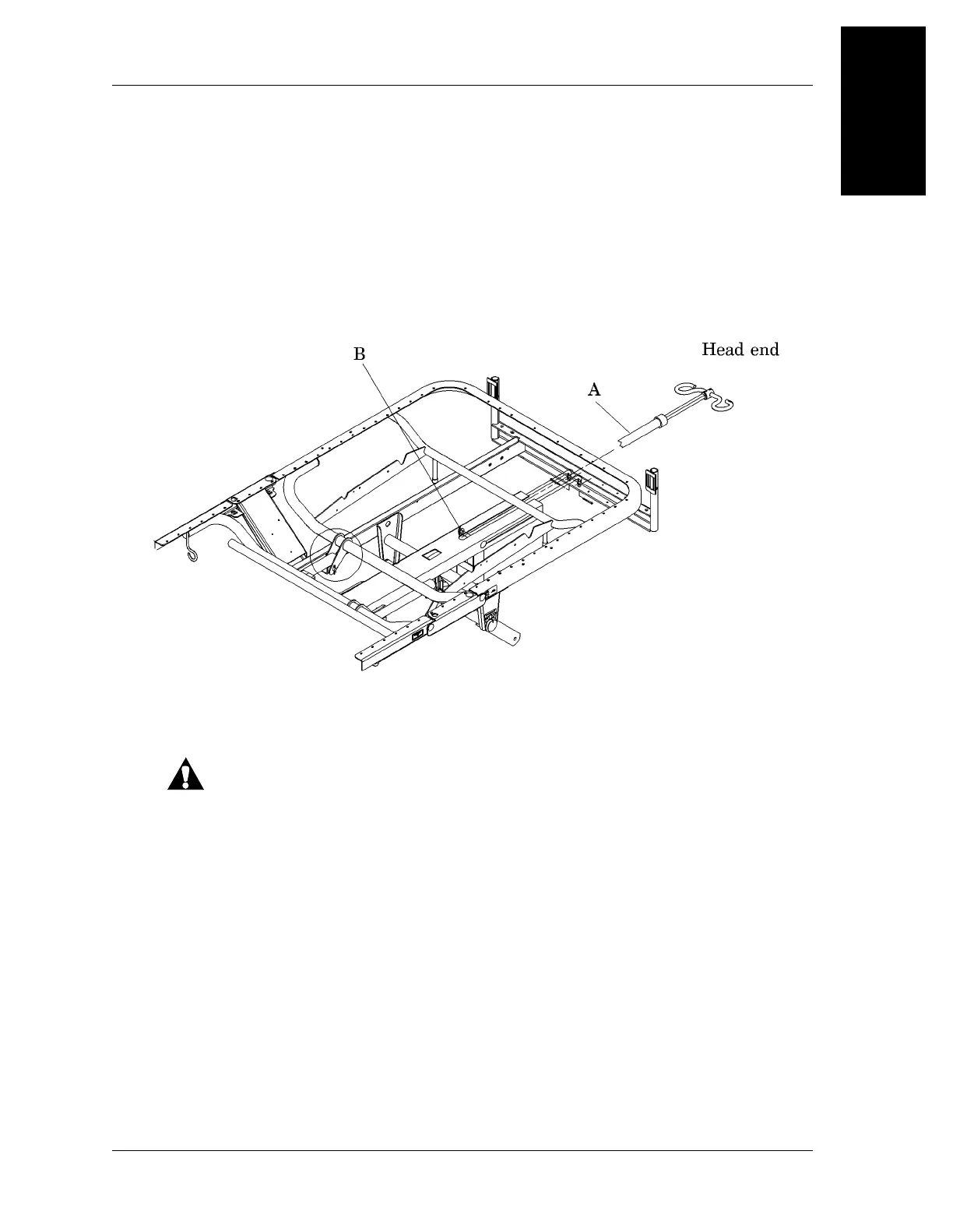

Figure 1-11. Hilow Function—Manual Operation
WARNING:
Unplug the bed from its power source, and disconnect the motor before
inserting the IV rod for manual operation. Failure to do so could result in
personal injury or equipment damage.
1. Unplug the bed from its power source.
2. Disconnect the hilow drive motor.
3. Extend the IV rod, and insert the lower end through the head end of the bed
to engage the roll pin of the hilow drive screw.
4. Turn the IV rod clockwise or counterclockwise to raise or lower the hilow
function as desired.
m241_132
