Hillrom Welch Allyn Connex Spot Monitor Service Manual

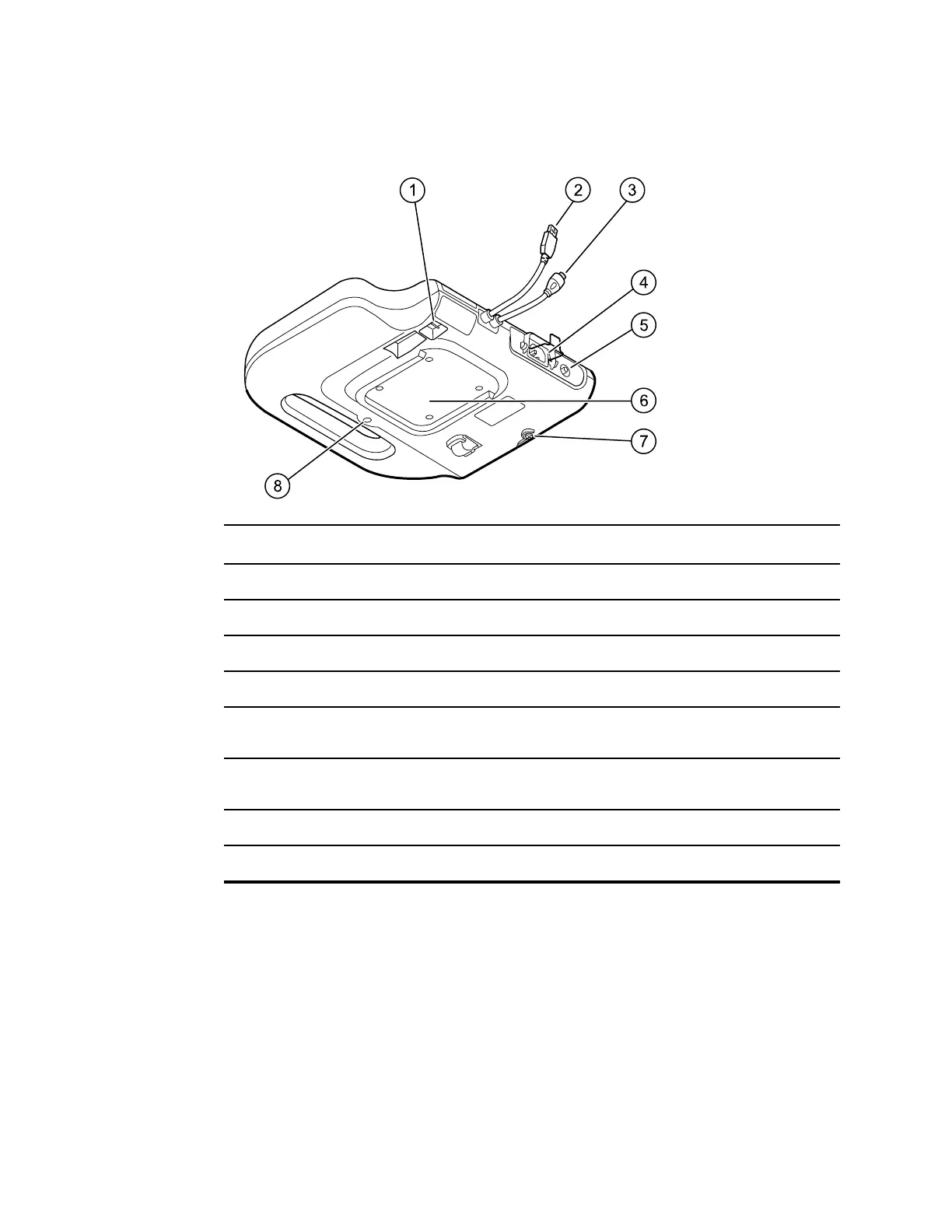

Back-Bottom-Right view
No. Feature Description
1 USB ports (2) Connect optional accessories
2 USB cable Connects APM work surface to monitor
3 APM power cable Connects APM work surface to monitor
4 Power connection Provides an external AC power connection
5 Ground lug (equipotential terminal) Provided for electrical safety testing and for connecting a
potential-equalization conductor
6 Recess for mounting Secures the APM work surface when it is mounted on the
APM stand (with 4 screws)
7 Battery cover screw Secures APM work surface battery cover
8 APM light Illuminates accessory bins and path for APM stand
22 Controls, indicators, and connectors Welch Allyn® Connex® Spot Monitor
