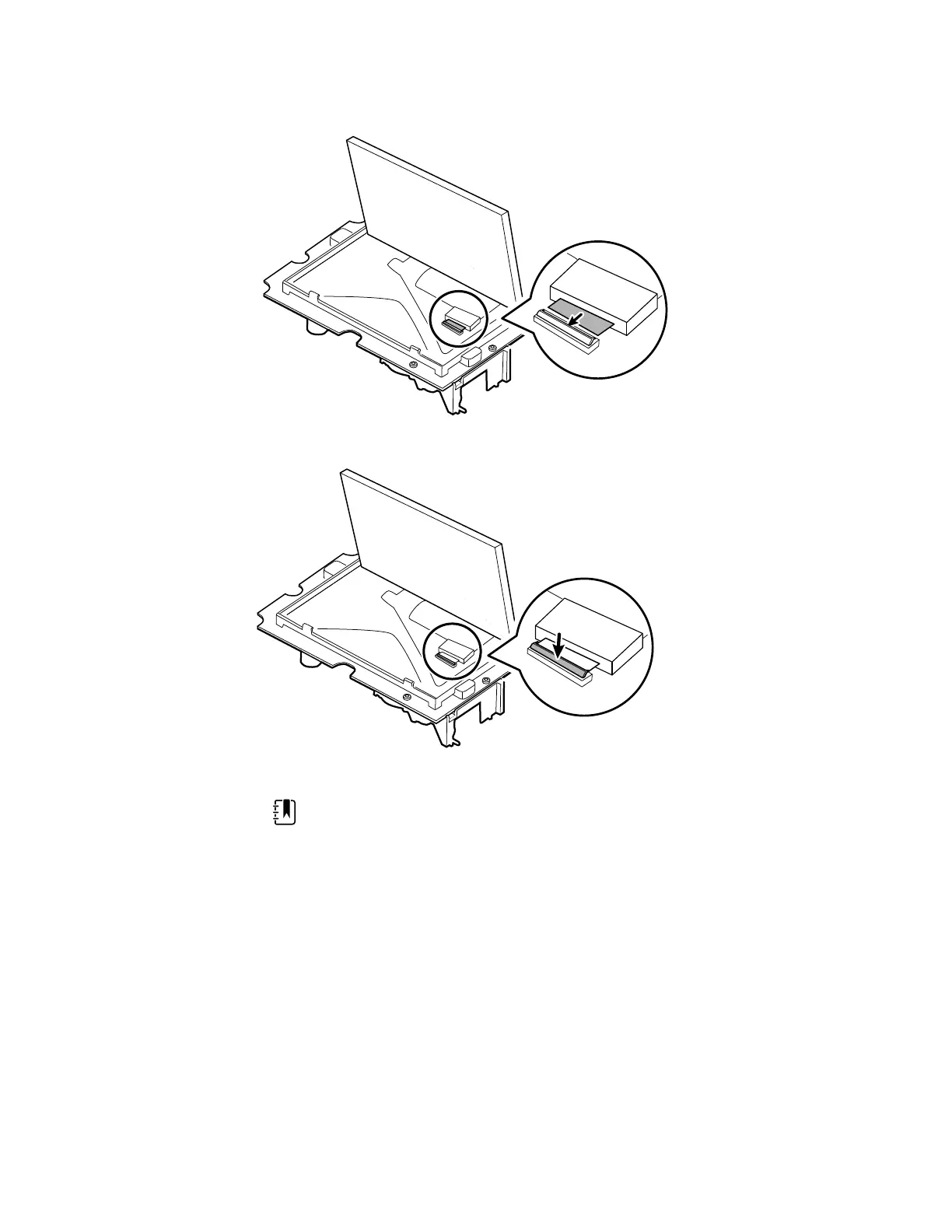

2. With two fingers, press down the bale to secure the LCD flex cable.
3. Apply the Gaff tape (removed during disassembly) to the connector bale and the LCD flex.
NOTE Do not allow the tape to touch the board or the ferrite to
touch the end of the flex cable when assembled.
4. For the TFC-K9700RTWV55 serial number, insert the small touchscreen flex cable into the hole
on the main PCA board.
Service manual Disassembly and repair 69
