Hillrom Welch Allyn Connex Spot Monitor Service Manual

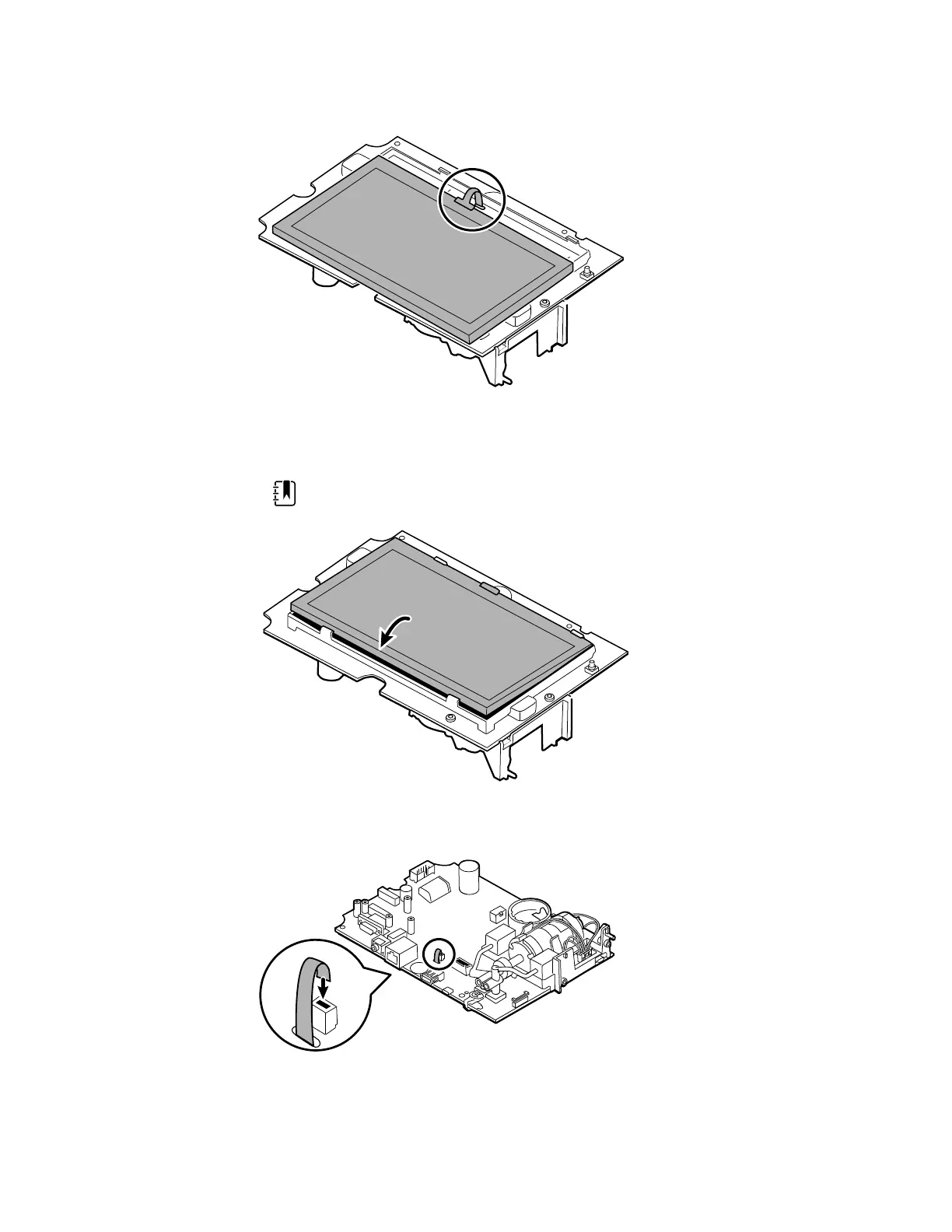

5. Place the LCD at an angle under the tabs on the flex cable side of the LCD.
6. Lower the LCD into place and carefully move the tabs on the opposite side just enough to
catch and secure the LCD in the frame.
NOTE Ensure that the tabs hold the LCD securely.
7. Turn over the main PCA board.
8. For the TFC-K9700RTWV55 serial number, insert the flex cable into its connector.
70 Disassembly and repair Welch Allyn® Connex® Spot Monitor
