4.1 Comparator Function
43
4
Chapter 4 Applied Measurement
9

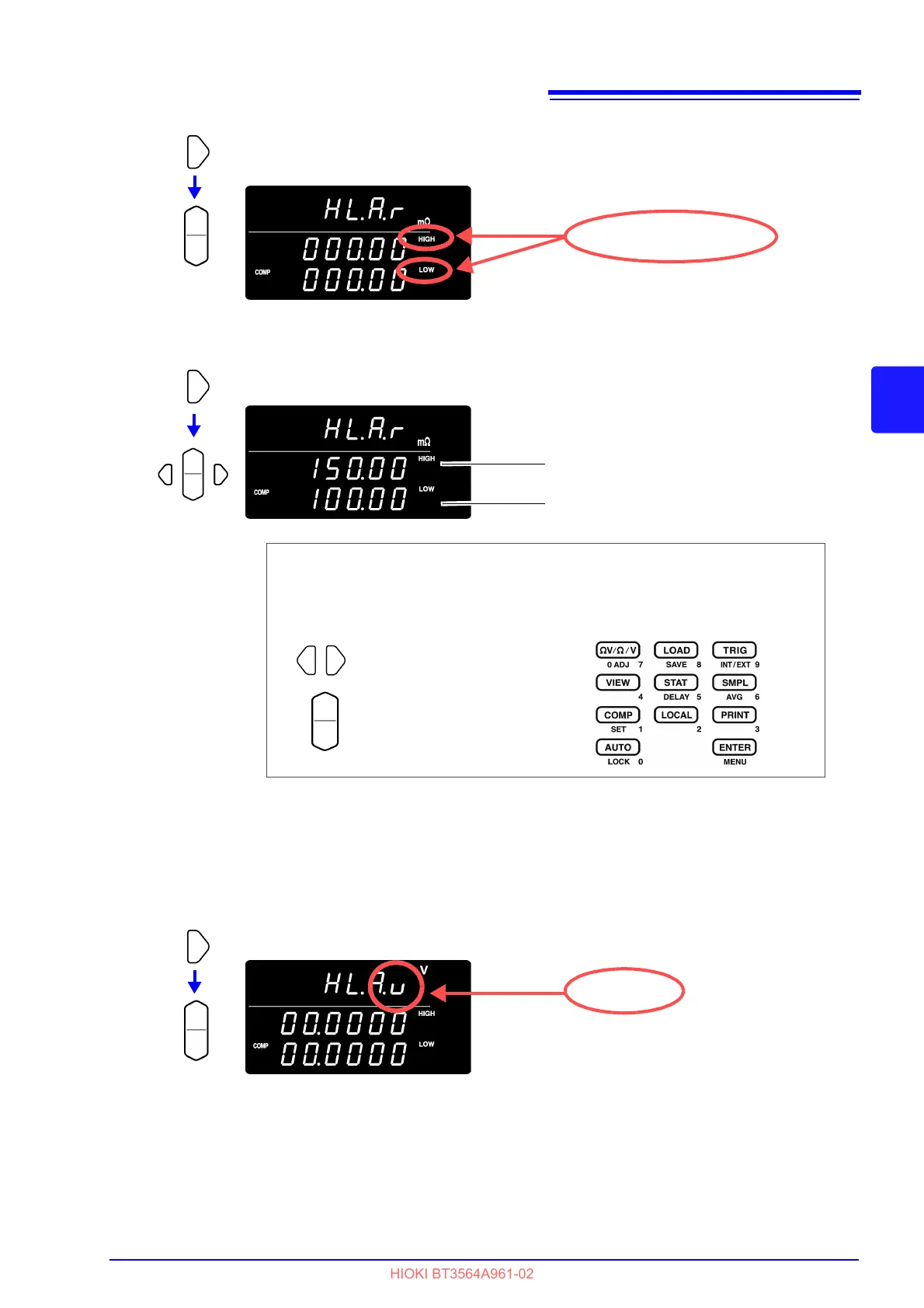

Press so that the indicated position blinks, and select the comparison method for
the comparator (for this example, HIGH/LOW).
HIGH, LOW ..... Compare by upper and lower thresholds (default setting)
REF, % ............ Compare by reference value and tolerance
10
Switch to the upper/lower threshold setting display, and specify the thresholds.
To enter the current measured value: AUTO key
(Press on a screen other than the upper/lower threshold setting display.)
To enter the result of statistical calculation value: STAT key
(Press on a screen other than the upper/lower threshold setting display.)
See " Upper and Lower Thresholds Setting (by Reference Value and Tolerance)" ( p.52).
11
Press so that the indicated position blinks, and select voltage.
r............. Resistance (default setting)
u ............ Voltage
HIGH and LOW flashing
Or
numeric key-
pads
For this example,
Upper threshold: 150 m

Upper threshold: 100 m
Select a digit
Select numerical value
Select a digit to change by mov-
ing the blinking location, then se-
lect the new numerical value.
When using the RANGE keys: when using the numeric keypads:
Press the numeric keys corre-
sponding to the digits to be en-
tered.
u flashing
