Hitachi PXR-D

5-9 ● Creating a User Pattern
3
2
1
2011.07.07 12:45
Manage messages
Create user
pattern
Calibrate touch
screen coordinates
Aux. function menu
Back
Manual
Status: Stop Com=0
Start
up
Shut
down
Comm
On/Off
Copy data
Select Languages
Edit Standard
pattern
Create Messages

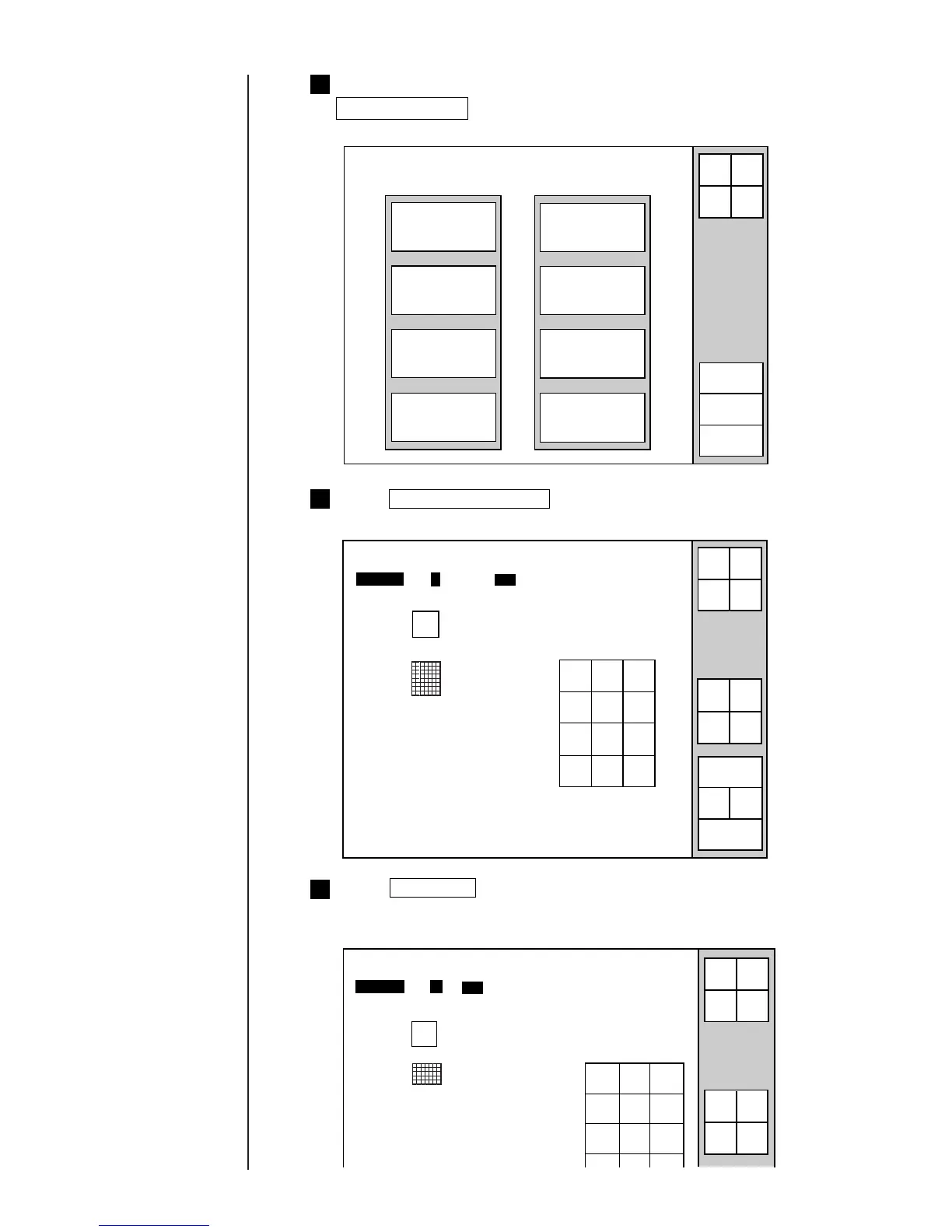

Verify that the printer is in "Stop," or "Standby" state. Choose
Auxiliary function from the menu.
The "Auxiliary function menu" screen then opens.
Press Create user pattern .
The "Create user pattern" screen then opens.
→
↓
↑
←
→
↓
↑
←
Invert
next
Invert
dot
Create user pattern
2011.07.07 12:45
Char. size ［２］(1:5×5 2:5×8 3:7×10 4:12×16 5:18×24 6:24×32)
Inter-char. space ［２］(dots: 0〜3)
Pattern
（ ）
Select
Clear
Back
Save
Manual
↓
↑
Incre-
ment
Decre-
ment
Status: Stop Com=0
Start
up
Shut
down
Comm
On/Off
Press Decrement .
The character size is set to 5 x 5.
The matrix size is set to 5 x 5.
→
↓
↑
←
Invert
dot
Create user pattern
2011.07.07 12:45
Char. size ［１］(1:5×5 2:5×8 3:7×10 4:12×16 5:18×24 6:24×32)
Inter-char. space ［２］(dots: 0〜3)
Pattern
（ ）
Manual
↓
↑
Status: Stop Com=0
Start
up
Shut
down
Comm
On/Off
→
↓
↑
←
Incre-
ment
Decre-
ment
Operations for
modifying the setting
contents
(See Section 2.1.3,
Operations for
modifying the setting
contents. )
