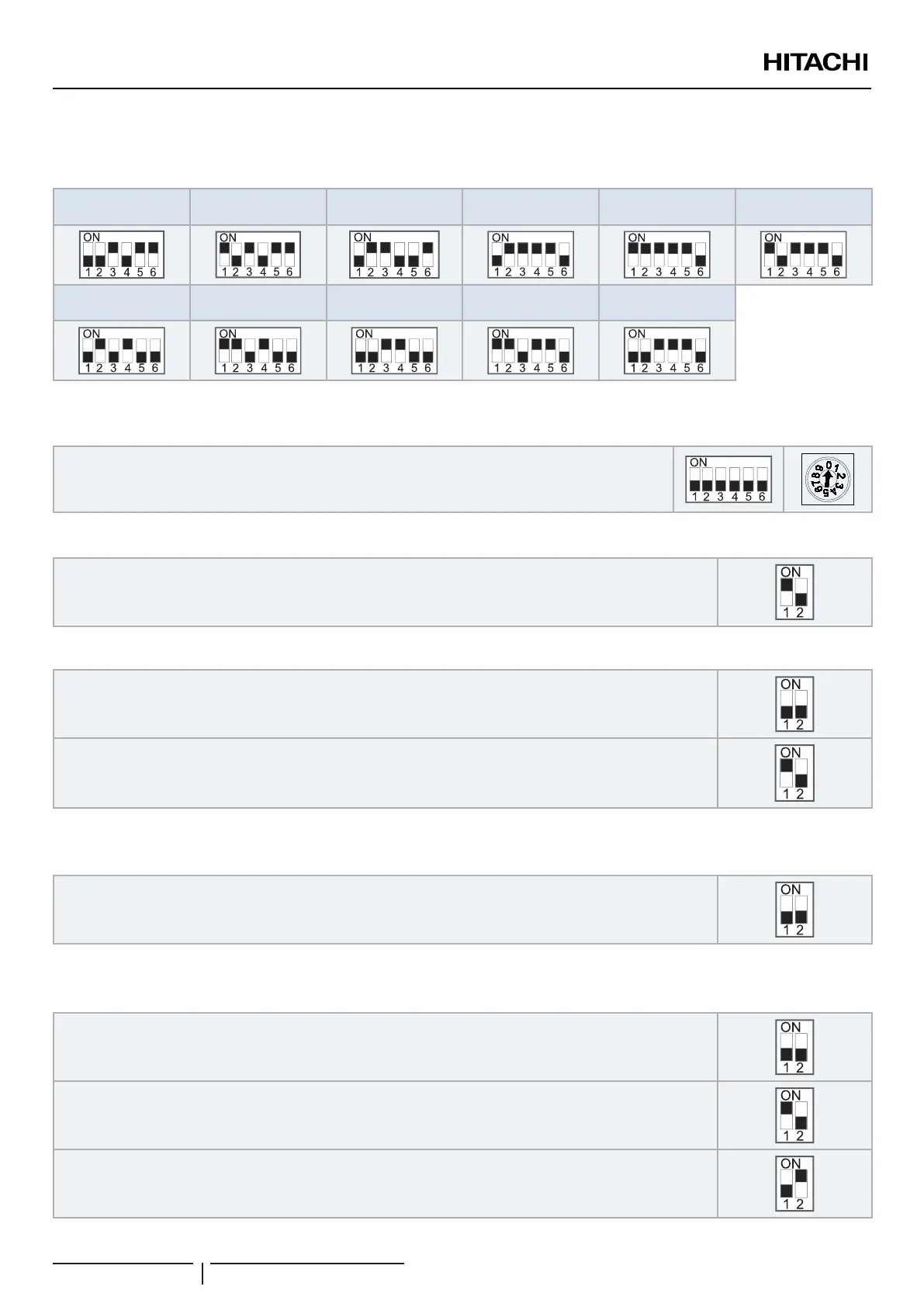

DSW3: Capacity Setting (No setting is required)
Outdoor unit Factory setting
RAS-2WHVRP1
RASM-2VRE
RAS-2.5WHVRP1
RAS-3WHVRP1
RASM-3VRE
RAS-4WHVNPE
RASM-4VNE
RAS-5WHVNPE
RASM-5VNE
RAS-6WHVNPE
RASM-6VNE
RAS-4WHNPE
RASM-4NE
RAS-5WHNPE
RASM-5NE
RAS-6WHNPE
RASM-6NE
RAS-8WHNPE RAS-10WHNPE
DSW4 / RSW1: No setting is required (Do not change)
Setting before shipment
DSW5: End terminal resistance (No setting is required)
Setting before shipment
DSW6: No setting is required (Do not change)
Factory setting (for RAS-(2/2.5/3)WHVRP1 and RASM-(2/3)VRE)
Factory setting (for RAS-(4-10)WH(V)NPE and RASM-(4-6)(V)NE)
DSW7: No setting is required (Only RAS-(2/2.5/3)WHVRP1 and RASM-(2/3)VRE)) (Do not change)
Factory setting
DSW302: Piping Length Setting (Only RAS-(2/2.5/3)WHVRP1 and RASM-(2/3)VRE) (Setting is required)
Setting before shipment
Pipe length (<5m)
Pipe length (≥30m)
ELECTRICAL AND CONTROL SETTINGS
PMML0575 rev.2 - 03/2022
86
