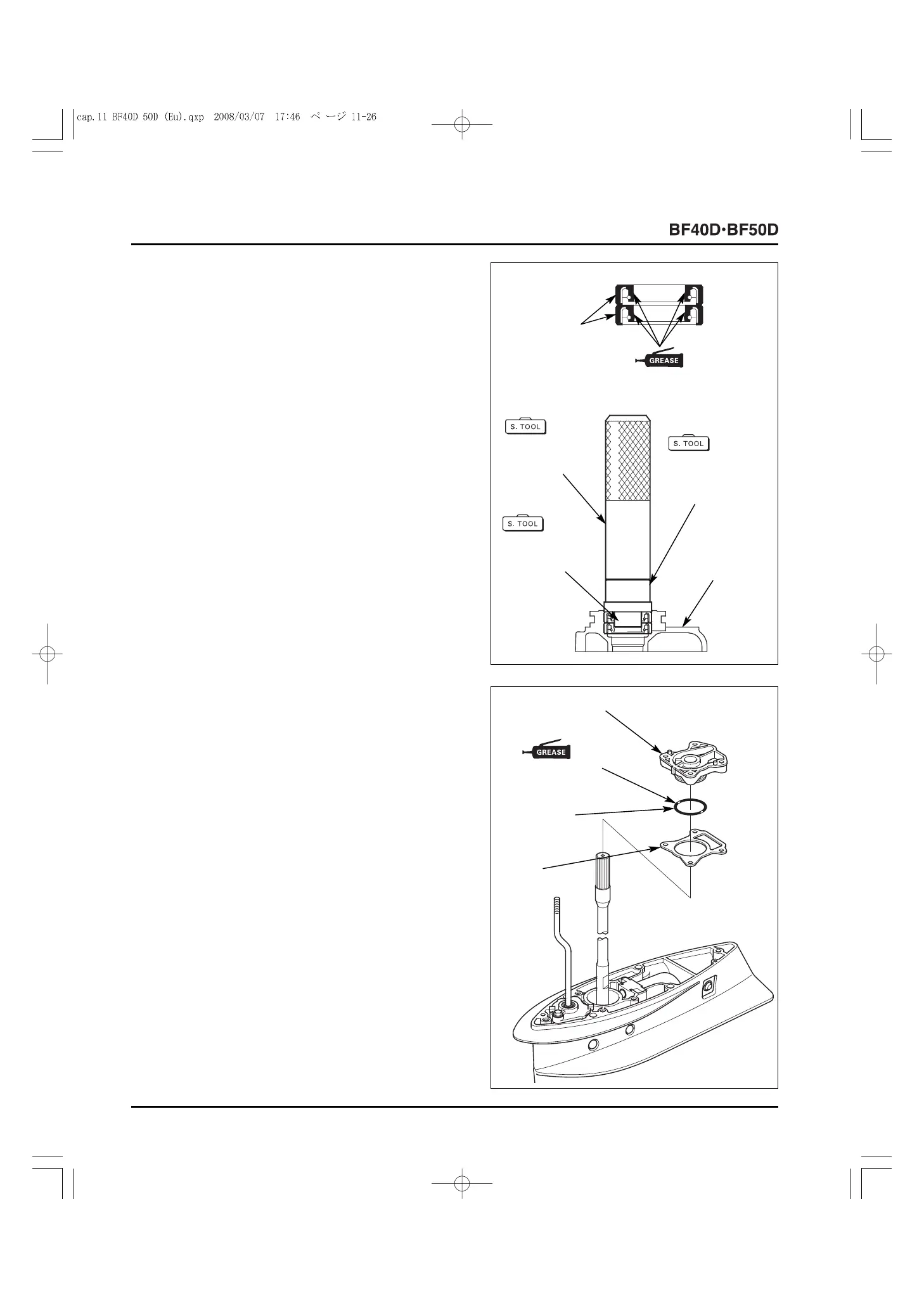

9) Apply soapy water to the outer surface of a new 17 x 30 x
7 mm water seal.
10) Drive the 17 x 30 x 7 mm water seals one by one into the
water pump housing using the special tools. Note the
installation direction of the water seals.
Apply marine grease to the water seal mating surfaces
before installation.
TOOLS:
Driver 07749-0010000
Attachment, 28 x 30 mm 07946-1870100
Pilot, 17 mm 07746-0040400
11) After installation, apply marine grease to the water seal
lips.
[4]
DRIVER
07749-0010000
[7]
PILOT, 17 mm
07746-0040400
[5]
ATTACHMENT,
28 x 30 mm
07946-1870100
[2] <WATER SEAL INSTALLATION DIRECTION>
[6]
WATER PUMP
HOUSING
[3] (Apply marine grease to the water
seal mating surfaces and the lips.)
[1]
17 x 30 x 7 mm
WATER SEALS
12) Apply marine grease to the outer surface of a new 41.7 x
3.5 mm O-ring and install it on the water pump housing.
13) Install a new water pump gasket and the water pump
housing on the gear case assembly.
[1]
WATER PUMP
HOUSING
[4]
WATER
PUMP
GASKET
[3]
41.7 x 3.5 mm
O-RING
[2]
(MARINE GREASE)
To Next Page
