c. REASSEMBLY
1) Apply gear oil to the outer surface of a new needle bearing.
2) Drive the 7/8 x 1-1/8 x 1 needle bearing into the gear case
up to the mark made on the special tool during vertical
shaft/bevel gear removal using the same tools used for
removal.
TOOLS:
Driver handle, 15 x 280 mm 07949-3710001
Attachment, 24 x 26 mm 07746-0010700
Pilot, 22 mm 07746-0041000
3) After installation, check that the bottom surface of the
needle bearing is flush with the bottom of the gear case.

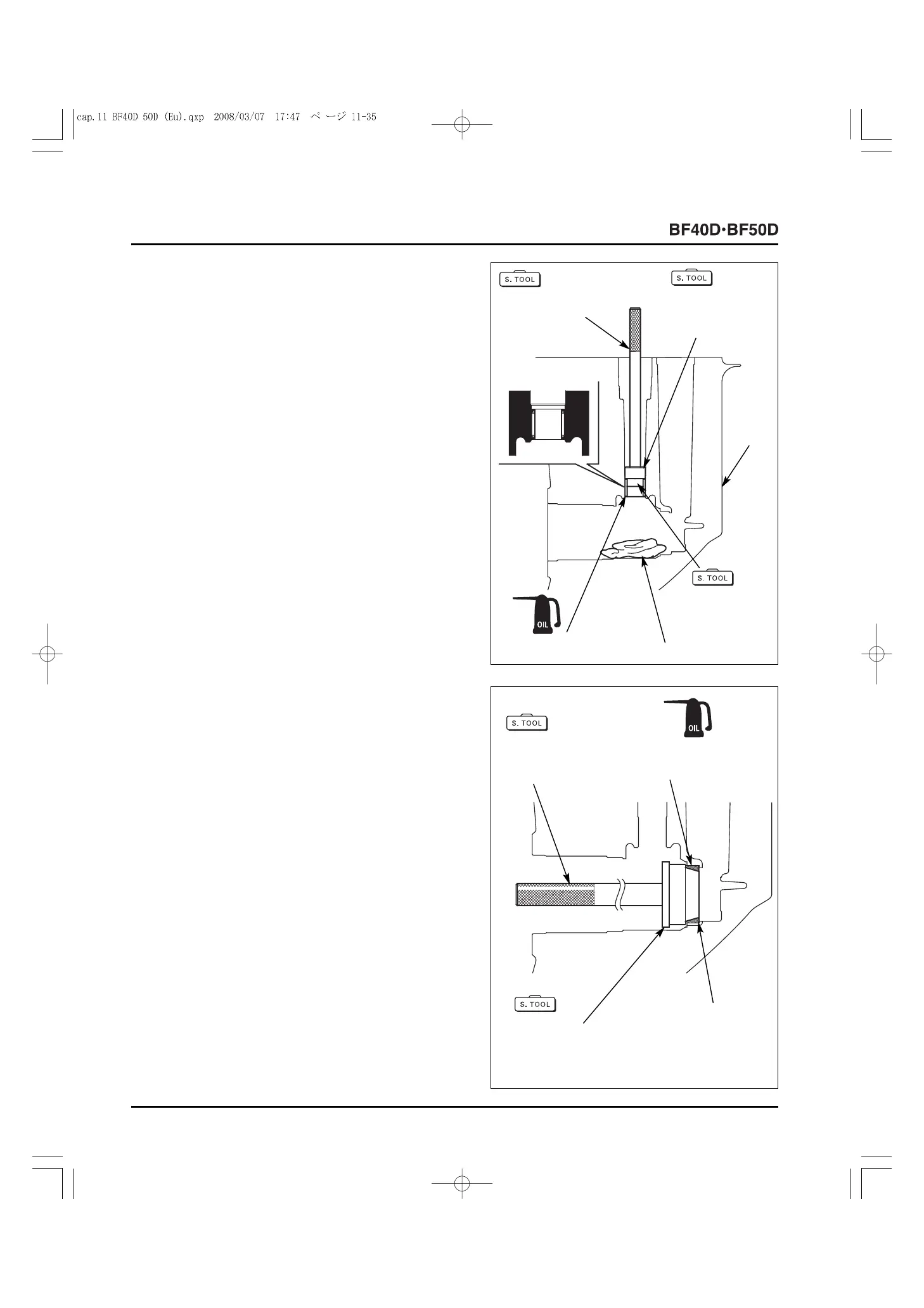

[1]
DRIVER HANDLE,
15 x 280 mm
07949-3710001
[4]
PILOT, 22 mm
07746-0041000
[3]
GEAR
CASE
[5]
SHOP TOWEL
[2]
ATTACHMENT,
24 x 26 mm
07746-0010700
4) Install a new forward bevel gear shim in the gear case
assembly.
• When the gear case or bearing is replaced with a new
one, perform shim adjustment and select the appropriate
shim accordingly (P. 11-43).
5) Apply gear oil to the outer surface of a new bearing [outer
race].
6) Install the 32 x 58 x 17 mm bearing [outer race] in the gear
case assembly using the special tools as shown.
• Install the bearing [outer race] with the larger I.D. side
toward the forward bevel gear.
TOOLS:
Driver handle, 15 x 280 mm 07949-3710001
Attachment, 62 x 68 mm 07746-0010500
[1]
DRIVER HANDLE,
15 x 280 mm
07949-3710001
[4]
ATTACHMENT,
62 x 68 mm
07746-0010500
[2] 32 x 58 x 17 mm
BEARING
[OUTER RACE]
[6]
7/8 x 1-1/8 x 1
NEEDLE BEARING
[3]
FORWARD BEVEL
GEAR SHIM
