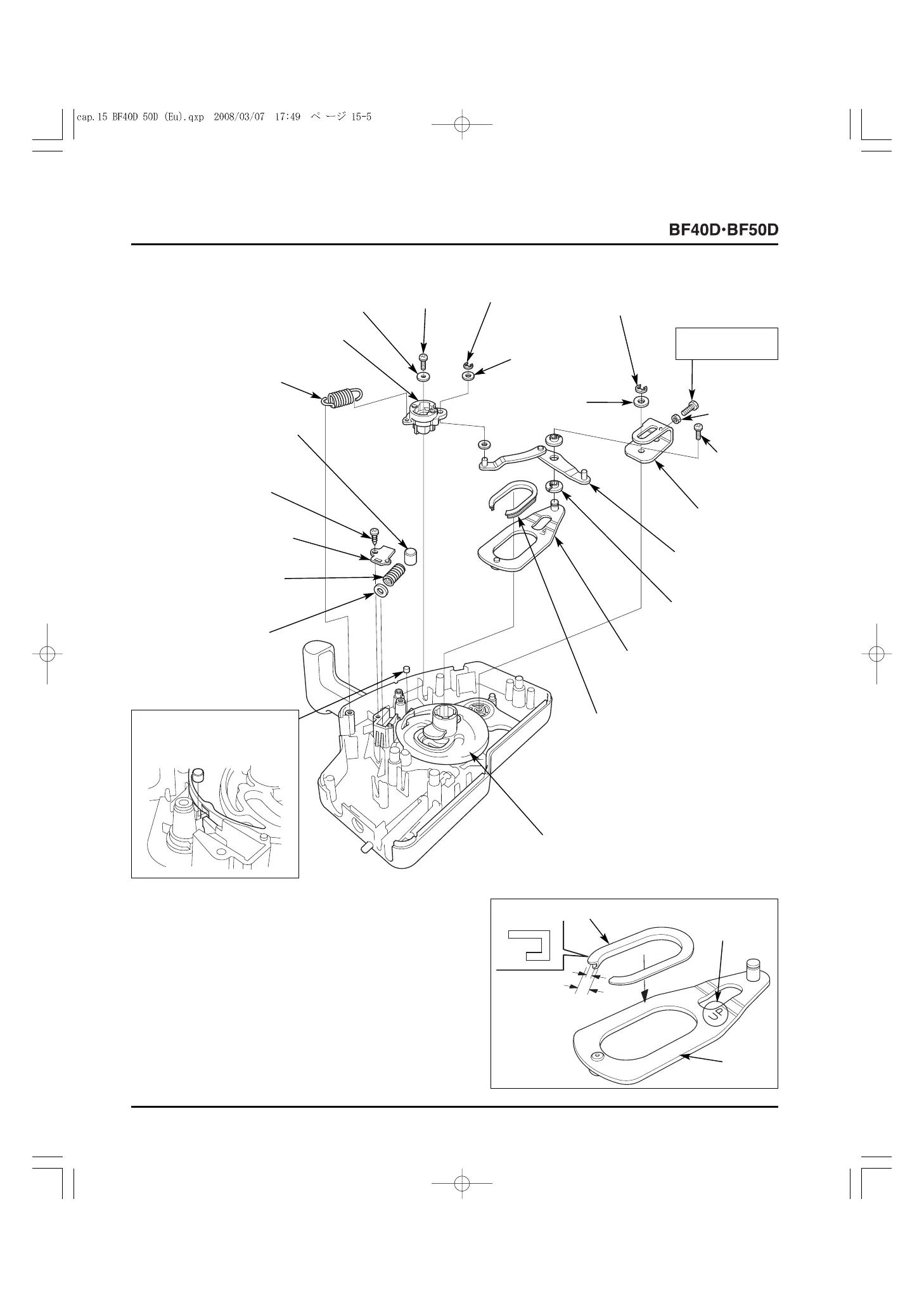

• SLIDING PLATE
• SLIDING PLATE/COLLAR
INSTALLATION:
Install the sliding plate with the “UP” mark facing up.
Attach the sliding plate collar to the sliding plate with its wider
side toward the “UP” mark of the sliding plate.
[1] SLIDING PLATE COLLAR
[16]
SLIDING PLATE
COLLAR
[1]
FAST IDLE SPRING
[23]
13 x 13 mm FAST IDLE
DETENT ROLLER
[22]
5 x 10 mm SELF-
TAPPING SCREW
[21]
SPRING SETTING PLATE
[19]
6 mm WASHER
[2]
FAST IDLE WHEEL
[3]
5 mm WASHER
[4]
5 x 10 mm
SCREW
[5]
4 mm E-CLIP
[8]
7 mm E-CLIP
[6]
6 mm
WASHER (2)
[7]
8 mm WASHER
[10]
5 mm HEX
NUT
[11]
6 x 10 mm
SCREW
[20]
12.7 x 23.9 mm FAST IDLE
DETENT SPRING
[17]
CONTROL WHEEL
[12]
LINK JOINT
BRACKET
[13]
LINK JOINT ARM
[14]
LINK JOINT
COLLAR (2)
[15]
SLIDING PLATE
[2]
“UP” MARK
[18]
6 x 6 mm PIN
INSTALLATION:
Install in the concave area of
the control wheel as shown.
[3]
SLIDING
PLATE
[9]
5 x 16 mm HEX
BOLT
ADJUSTMENT:
P. 3-20
