Honeywell 35 Series Network Video Recorder User Guide

The Security Question interface is displayed.

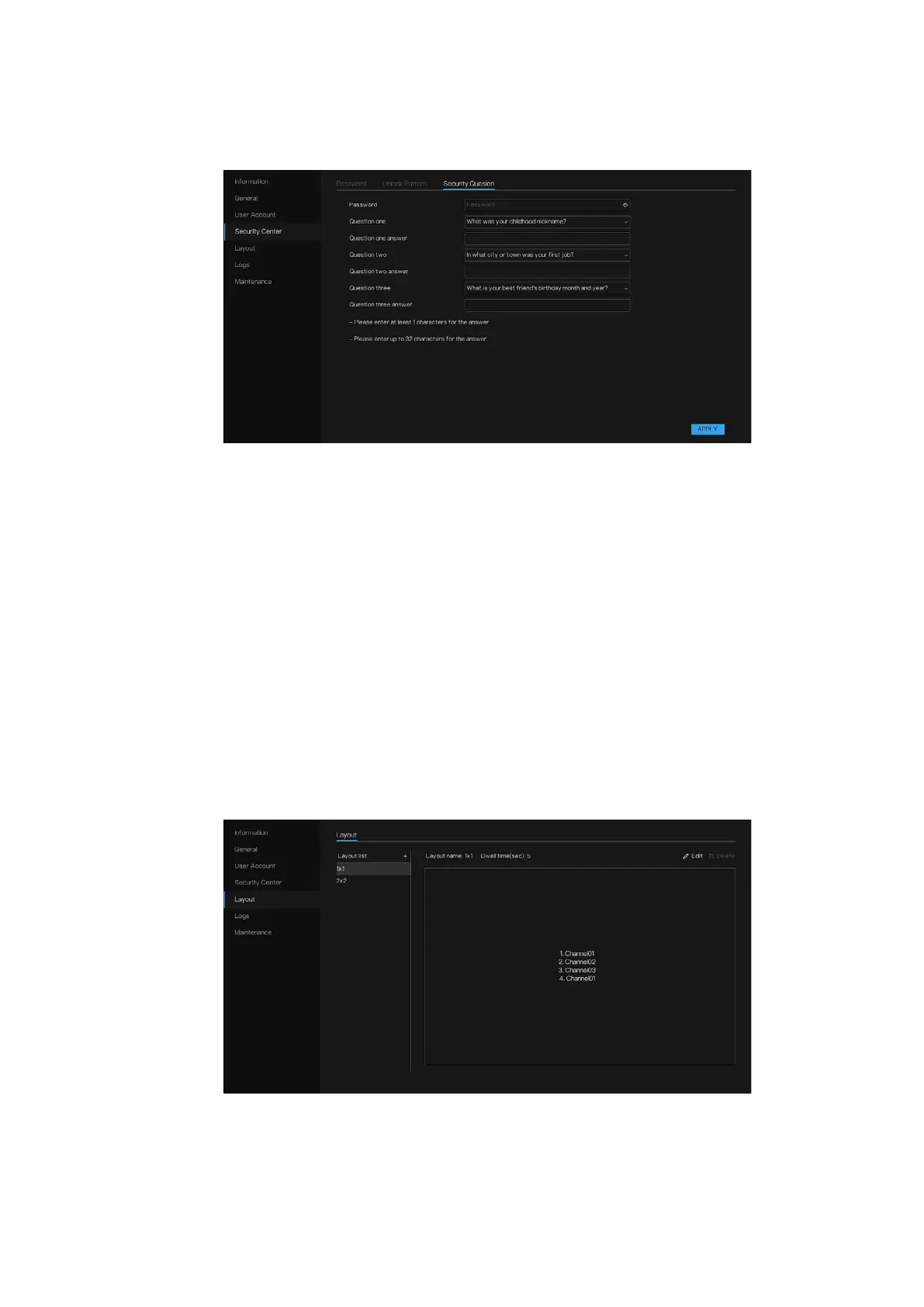

Figure 112 Security Question

2. Input the password.

3. Input proper security questions and answers.

4. Click APPLY.

After you successfully set security questions, you can answer the

security questions to reset admin password.

Layout

Set viewing video mode, dwell time in display screen. The layout is set

multiple pages to auto sequence.

1. Go to Main Menu > System > Layout.

The Layout interface is displayed.

Figure 113 Layout

2. Click + to add a new layout. The default layout is one splitting screen.

3. Input the layout name, select dwell time from the SEQ Dwell time

drop-down list (the display screen will loop play the real time video

according to setting time).
