Honeywell 35 Series Network Video Recorder User Guide
8
No. Name Description
2 Network port
10M/100Mbps self-adaptive Ethernet port. Connect to
the network cable.
3 AUDIO OUT
Audio output port. It is to output the analog audio signal
to the devices such as the sound box.
•
Bidirectional talk output.
•
Audio output on 1-window video monitor.
Audio output on 1-window video playback.
4 AUDIO IN
Bidirectional talk input port. It is to receive the analog
audio signal output from the devices such as microphone,
pickup.
5 VGA
VGA video output port. Output analog video signal. It can
connect to the monitor to view analog video.
6 HDMI
High definition audio and video signal output port. It
transmits uncompressed high definition video and
multiple-channel data to the HDMI port of the display
device. HDMI version is 1.4.
7 USB port USB port. Connect to mouse, USB storage device and etc.
8 ALARM I/O
They receive signals from external alarm source. C is COM
port. There is one channel of alarm in; There are eight
channels of alarm out.
When your alarm input device is using external power,
make sure the device and the NVR have the same GND.
9
Power input port Power socket.
10
Power switch Power on/off button.
11
GND
HN351602xx

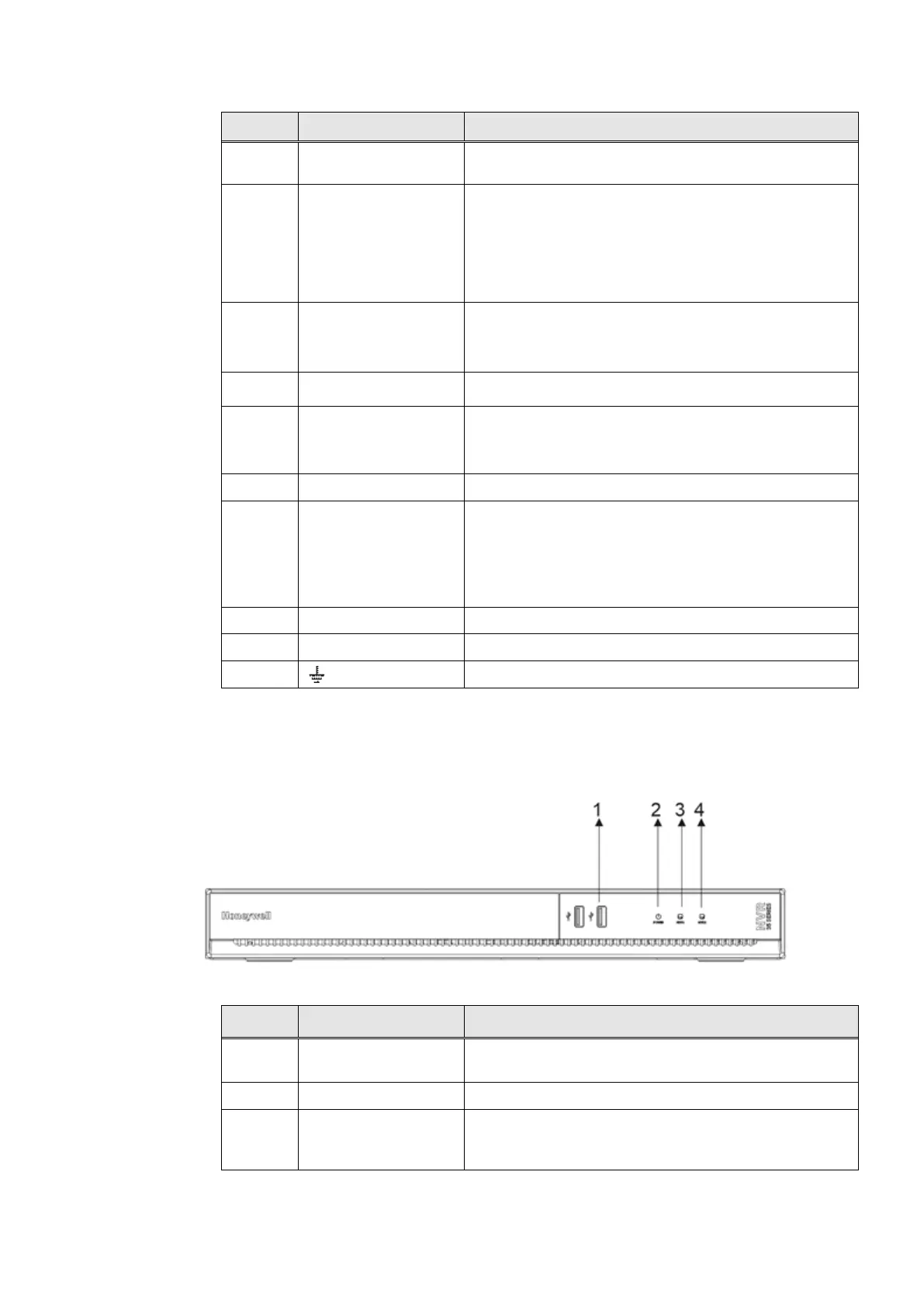

Figure 7 Front Panel (HN351602xx)
Table 8 NVR Front Panel Description (HN351602xx)
No. Name Description
1 USB port
Connect to peripheral USB 2.0 storage device, mouse and
etc.
2 POWER The light is on when the power connection is OK.
3-4 HDD1/HDD2
The green light is flash when the device is recording, if the
disk is not working, light is always bright. The light is off
without disk.
