Honeywell 35 Series Network Video Recorder User Guide
9

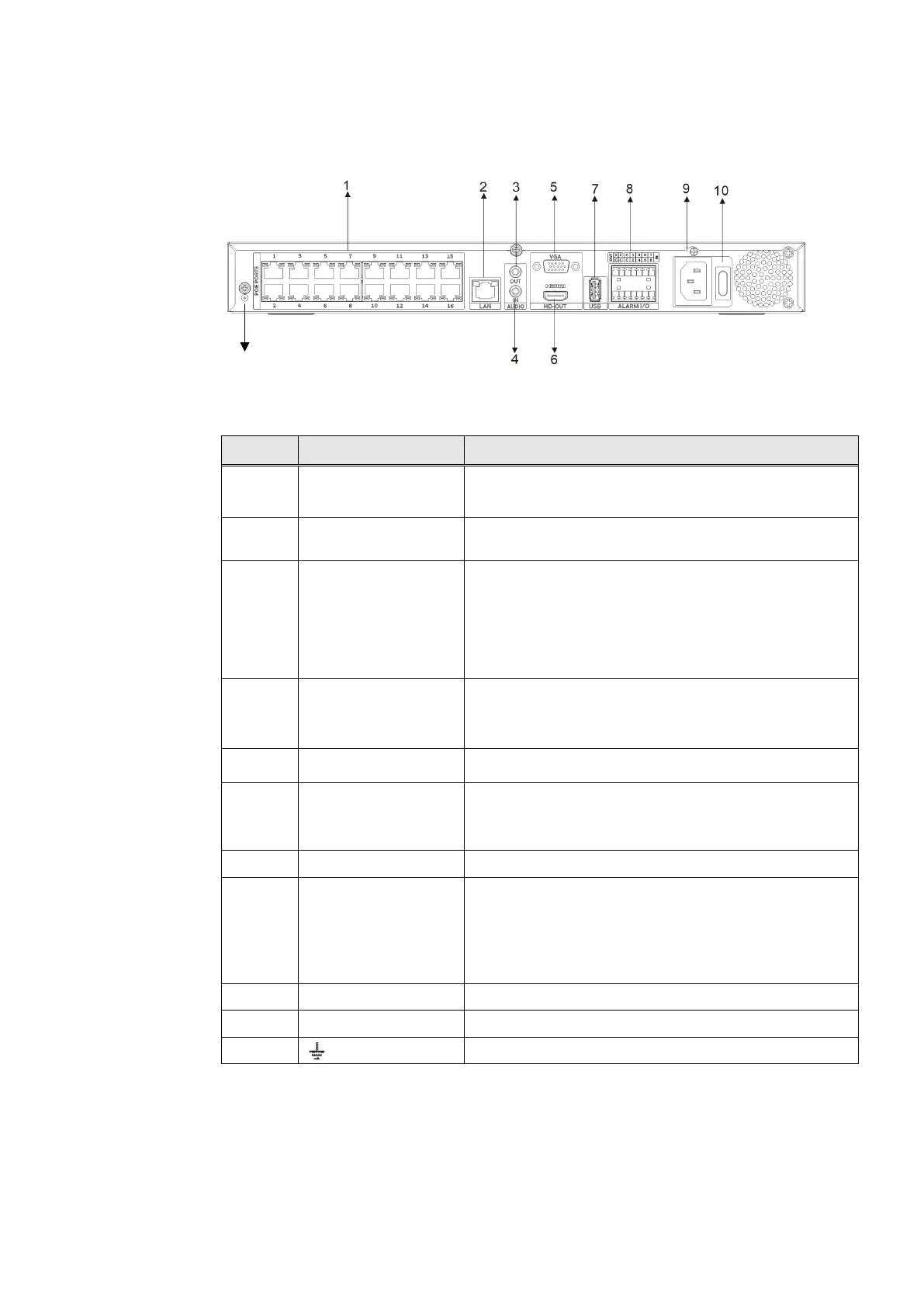

Figure 8 Rear Panel (HN351602xx)
Table 9 NVR Rear Panel Description (HN351602xx)
No. Name Description
1 PoE port
Built-in switch. Support PoE function.
For PoE series product, you can use this port to provide
power to the network camera.
2 Network port
100M/1000Mbps self-adaptive Ethernet port. Connect to
the network cable.
3 AUDIO OUT
Audio output port. It is to output the analog audio signal
to the devices such as the sound box.
Bidirectional talk output.
Audio output on 1-window video monitor.
Audio output on 1-window video playback.
4 AUDIO IN
Bidirectional talk input port. It is to receive the analog
audio signal output from the devices such as microphone,
pickup.
5 VGA
VGA video output port. Output analog video signal. It can
connect to the monitor to view analog video.
6 HDMI
High definition audio and video signal output port. It
transmits uncompressed high definition video and
multiple-channel data to the HDMI port of the display
device. HDMI version is 1.4.
7 USB port USB port. Connect to mouse, USB storage device and etc.
8 ALARM I/O
They receive signals from external alarm source. C is COM
port. There is one channel of alarm in; There are eight
channels of alarm out.
When your alarm input device is using external power,
make sure the device and the NVR have the same GND.
9 Power input port Power socket.
10 Power switch Power on/off button.
11
GND
11
