Honeywell 35 Series User Manual

Honeywell 35 Series Network Video Recorder User Guide
27

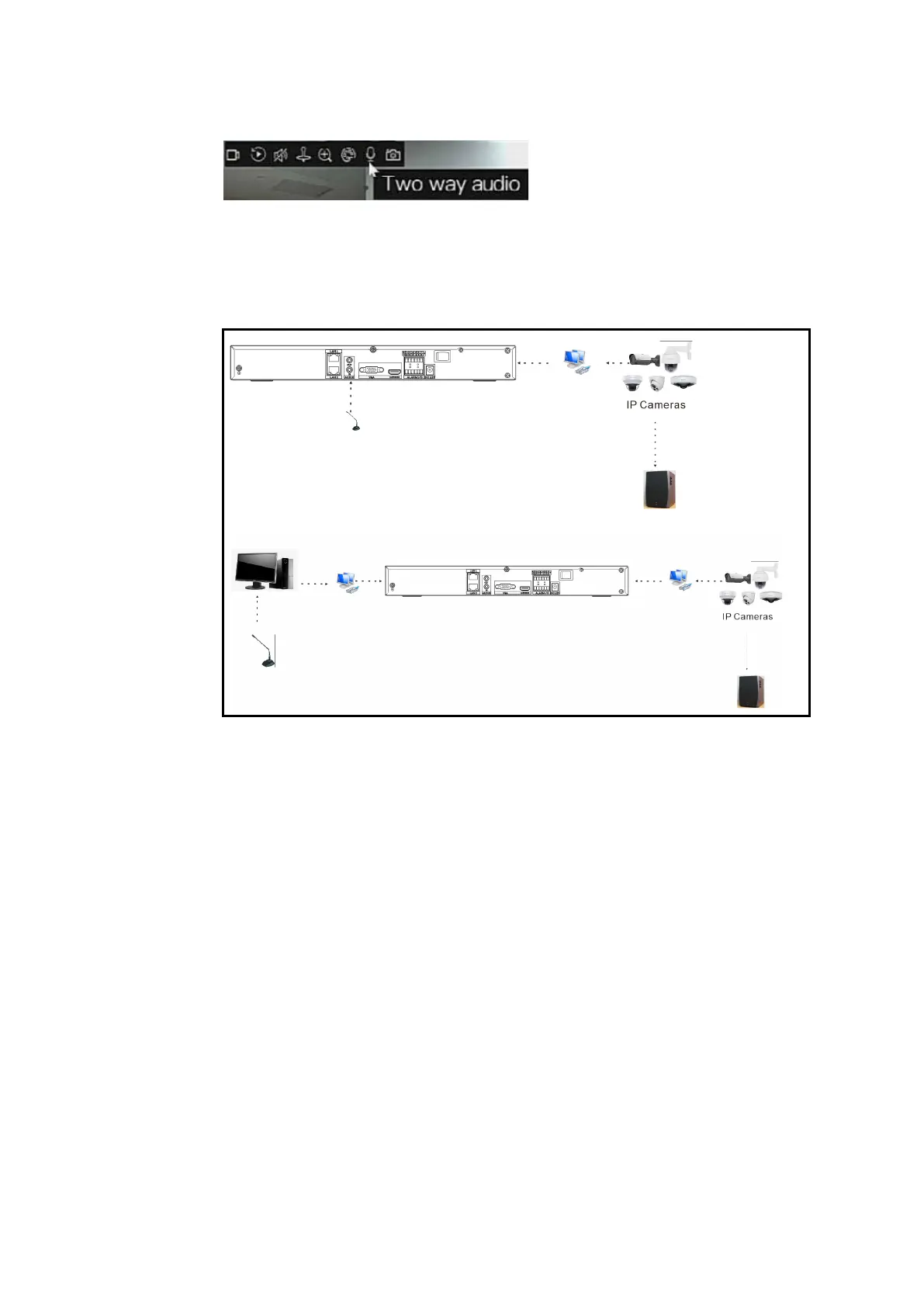

Figure 32 Enable Two-way Talk
Please refer to the following interface to enable two-way talk.
At the device end, speak by the speaker or the pickup, and then you can get
the audio from the earphone or sound box at the IPC-end.
Figure 33 Device to IPC
IPC-end to the Device-end
Device Connection
Connect the speaker or the pickup to the audio output port in the IPC and
then connect the earphone or the sound box to the first audio input port in
the device rear panel.
Login the Web and then enable the corresponding channel real-time
monitor.
Listening Operation
At the IPC-end, speak by the speaker or the pickup, and then you can get
the audio from the earphone or sound box at the device-end.

Honeywell 35 Series Specifications

General

Video Compression	H.264
Night Vision	Yes
Power Source	Wired
Motion Detection	Yes
Storage	MicroSD card (up to 128GB)
Weather Resistance	Yes
Lens	2.8mm
