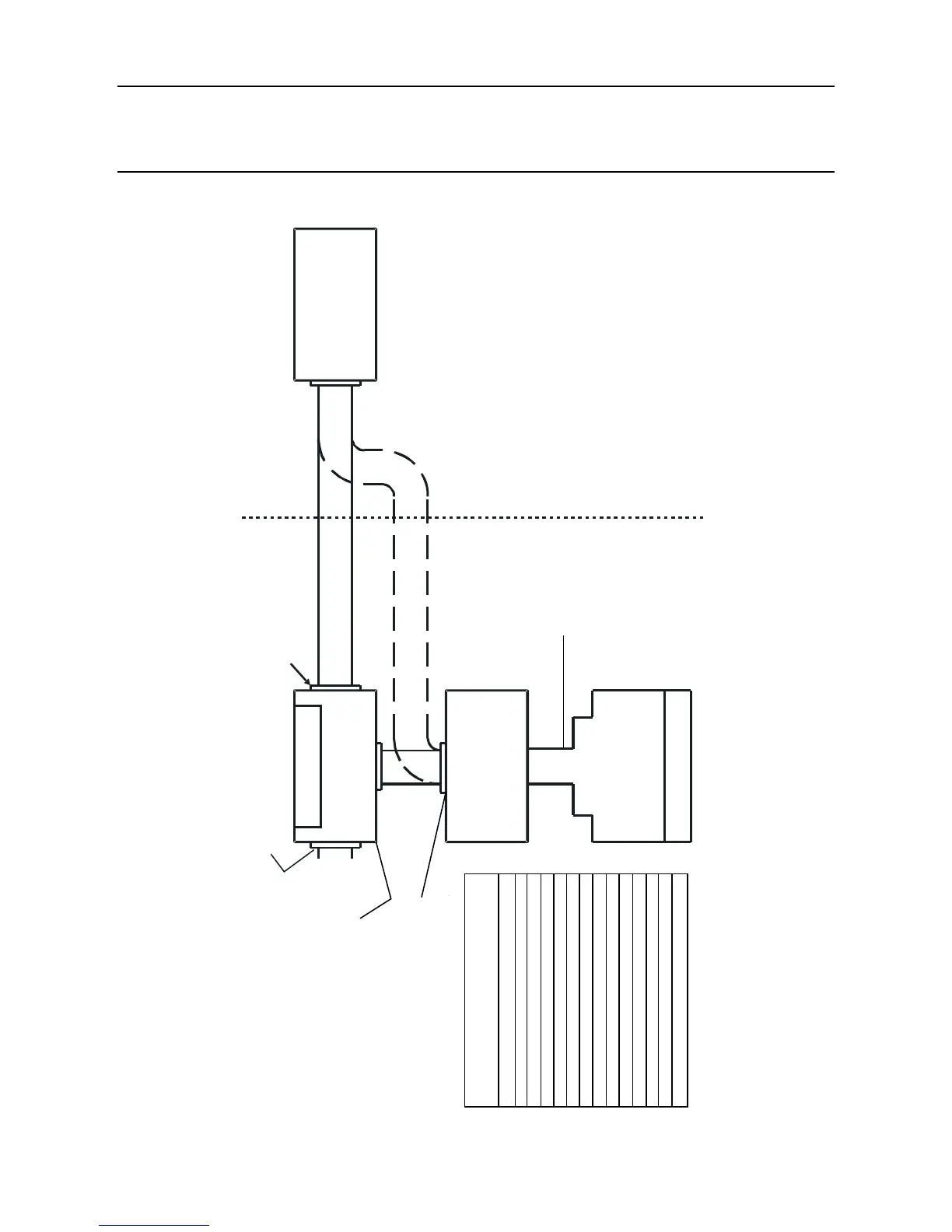

STOPPING PLUG FACTORYFITTED. ONLY
REMOVE IF RELAYCONNECTIONS REQUIRED.
(CSA LISTED CONDUIT SEAL REQUIRED WITHIN 18”)
VMAX 28V dc IMAX 1A
RESISTIVE LOAD ONLY
NON-HAZARDOUS
CONTROLEQUIPMENT
NOTE 1
SENSOR ENTRY
NOTE 2
TRANSMITTER UNIT
TYPE:APEX
JUNCTIONBOX
TYPE:APEX/MATRIX
SENSOR
TYPE:APEX/MATRIX SENSOR
NOTES:
1. APPARATUS WHICHISUNSPECIFIED EXCEPT THAT IT
MUST NOTBESUPPLIEDFROM, NORCONTAIN IN NORMAL
OR ABNORMAL CONDITIONSASOURCEOFPOTENTIAL
WITH RESPECTTOEARTH IN EXCESSOF250vrms OR
250V d.c.
2. SENSOR(TYPE: APEX/MATRIX SENSOR)CAN BE
DIRECTLY CONNECTED TO THETRANSMITTER UNIT (TYPE:
APEX)
3. FORINSTALLATIONNOT REQUIRINGANAPEX
TRANSMITTER, THE APEX/MATRIX SENSORAND JUNCTION
BOXMAY BE DIRECTLY CONNECTED TO THECONTROL
EQUIPMENTINTHE NONHAZARDOUS AREA.
4. SENSORCARTRIDGESARE SUPPLIEDFROM
INTRINSICALLY SAFECIRCUITSWITHINTHE SENSOR
BODY.CARTRIDGESMAY THEREFOREBEREPLACED IN
THEHAZARDOUS LOCATION,WITHOUT NECESSITY OF
POWERING DOWN THE APEX SYSTEM.FIT ONLY
CART RIDGES PART Nos. 2110B3XXX - SEE MANUAL.
SENSOR ENTRY (CSA LISTED
CONDUIT SEAL
REQUIRED WITHIN 18”)
SENSOR CARTRIDGE
SEENOTE4
ALTERNATIVE ROUTING
SEENOTE3
JUNCTION BOX ENTRY (CSA
LISTED CONDUIT SEAL
REQUIRE WITHIN 18”)
OR ANY SUITABLY
APPROVED CSA
JUNCTION BOX
DISPLAY/KEYPAD
SEE NOTE 5
SUPPLY ENTRY (CSA LISTED
CONDUIT SEAL
REQUIRED WITHIN 18”)
5. TRANSMITTER PROVIDES I.S. CIRCUITS FOR DISPLAY/KEYPAD.
COMBUSTIBLE CARTRIDGES
COMPLIANT WITH C22.2 No. 152
Gas Range Part No.
1* 100%LEL 2110B3930
2* 100%LEL 2110B3931
3* 100%LEL 2110B3932
4* 100%LEL 2110B3933
5* 100%LEL 2110B3934
6* 100%LEL 2110B3935
7* 100%LEL 2110B3936
8* 100%LEL 2110B3937
Butane 100%LEL 2110B3752
Ethylene 100%LEL 2110B3758
Hydrogen 100%LEL 2110B3757
Methane 100%LEL 2110B3754
Propane 100%LEL 2110B3751
