3. INSTALLATION
3.1.3 Installing the Gas Sensing Cartridge
(1) RemovethecapfromtheCertiedSensorbody.
Rotate the cap or accessory 1/4 turn in an anticlockwise direction to release the bayonet
tting.

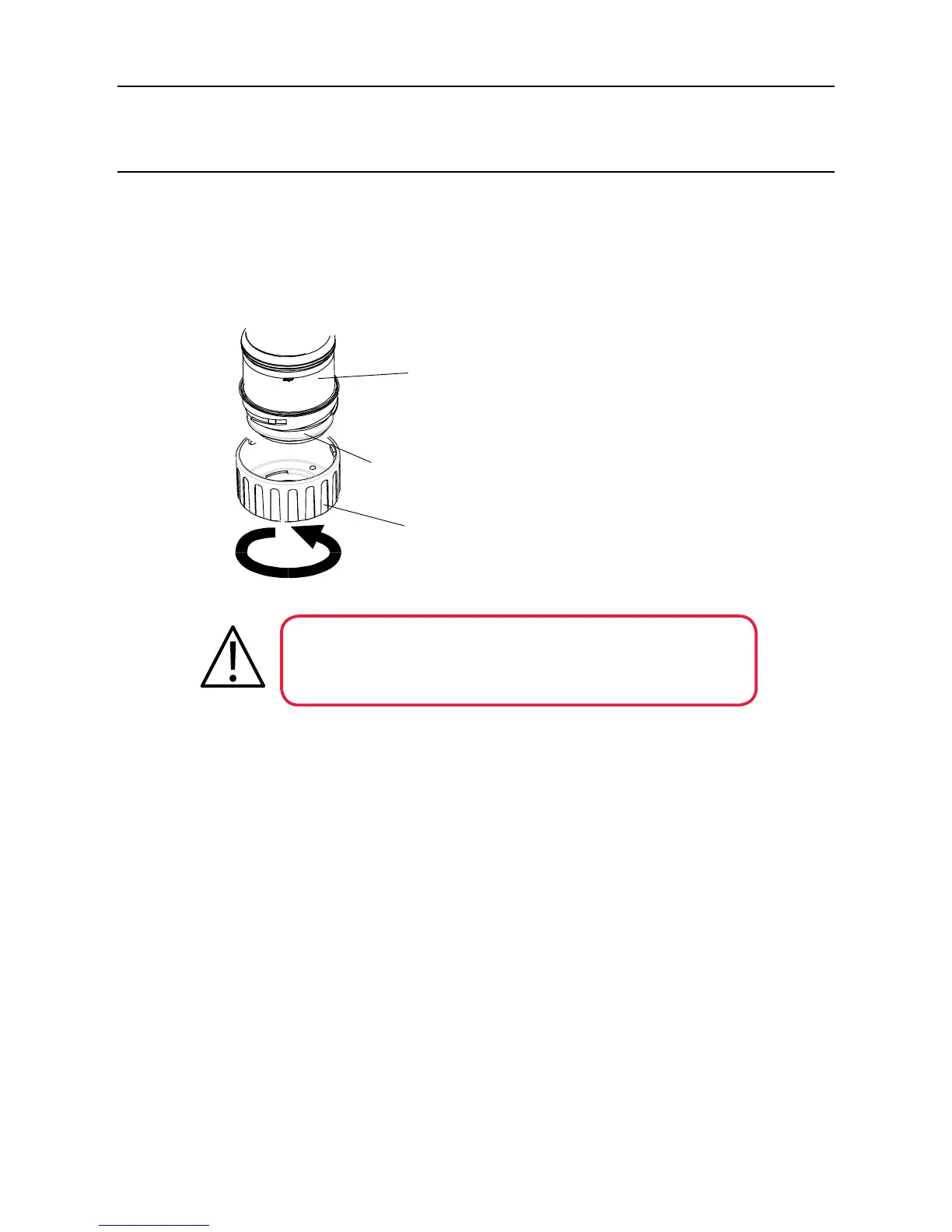

(2) Fit the gas sensing cartridge into the sensor body.
Sensor body
Cartridge fitted to sensor
body
Sensor cap
WARNING
Sensor Cartridges may contain corrosive solutions.
Dispose of according to local and national regulations.
Eachcartridgeisprovidedwithacerticateofcalibration(printedonthereverseofthe
instruction sheet, Part No: 2110M8015, supplied with the cartridge) that guarantees that the
cartridgeiscalibratedandreadyforuse.Beforeinstallingacartridgecheckthatthenumber
on the cartridge label matches the gas type and range for the function required.
Caution: OnlycartridgeswiththefollowingpartnumberscanbettedtotheCertied
Sensor:
2110B30x0, 31x0, 32x0, 33x0, 34x0, 35x0 series
2110B3700 - 2110B3999 range
Note: Conforms to CSA C22.2 No. 152onlywhenttedwithspeciccartridges.Seespecications
for details.
CarefullyplugthecartridgeintotheCertiedSensorbodyensuringthatthecartridgetab
lines up with the recess in the sensor body and push the cartridge, without twisting, until it is
fully home.
If the cartridge will not push fully home, re-check that the locating tab is correctly aligned with
the recess in the sensor body. Position the tab so it is resting on the tab recess wall to the
right or left of the tab recess and then turn the cartridge until the tab drops into the recess.
