Honeywell Apex User Manual

41
MAN0604_Issue 09_02-2013 Apex
2110M8030

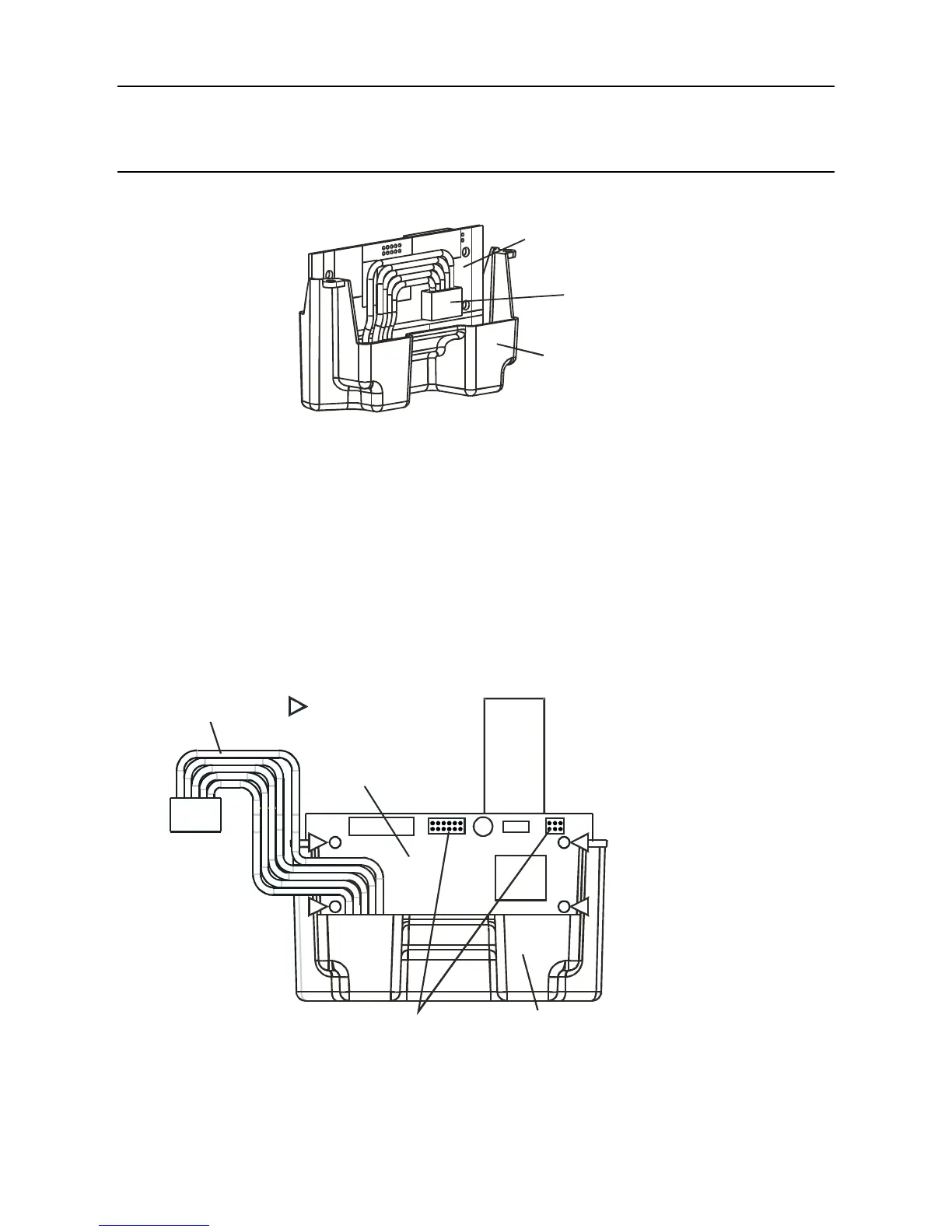

3.3.3 Fitting the LonWorks Communication Board to the Main PCB
Main PCB
Potted assembly
Main PCB
Flying
lead
(1) PlacetheMainPCBPottedassemblyonaatsurfacewiththeyingleadandplugontop.
PushtheyingleadtoonesidesothatthereisclearaccesstotheMainPCB.
(2) Remove the LonWorks Communication Board from its antistatic bag.
(3) Position the Communication Board over the Main PCB.
Ensure the mounting pillars point downwards. Check that the two plugs on the
CommunicationBoardarecorrectlyalignedwiththesocketsontheMainPCBandthe
mounting pillars are aligned with their mounting holes.
(4) Carefully press the Communication Board down evenly onto the Main PCB.
Ensure that the pillars locate in their mounting holes and the electrical plugs are fully home.
3. INSTALLATION
Sockets
Main PCB
Ribbon
cable
Holefor communication
board mountingpillar
Flyinglead
Pottedassembly
