Honeywell Apex User Manual

38
MAN0604_Issue 09_02-2013 Apex
2110M8030
3. INSTALLATION
(5) Check for correct operation of the system by carrying out the procedures described in
Chapter 4.
3.2.4 Certied Junction Box Conguration
ThefollowinginformationspeciestheCertiedJunctionBoxcongurationoptions.
Controller Area Network (CAN )Termination Link - J1
Terminated
Unterminated (default)
Note: Leave the link in the Unterminated position.
3.3 LONWORKS COMMUNICATIONS BOARD
The LonWorks Communications Board can be installed in the Transmitter Unit by a single person.
ItisttedintothetopoftheunittoformpartoftheMainPCBassembly.
Note: DonotinstallacommunicationsboardintoaULorCSAcertiedTransmitterUnit.
Refer to the General Installation Guidelines at the beginning of this chapter.
Fittingtheboardshouldbecarriedoutbyaqualiedtechnician.
Electrical interconnections for the communications board are made at the same time as mechanical
installation by means of plugs attached to the communications board. These plugs mate with existing
socketsonthemainPCBttedtotheApexTransmitterUnitlid.
OncetheboardisttedanyexternalLonWorksnetworkwiringrequiredisconnected.

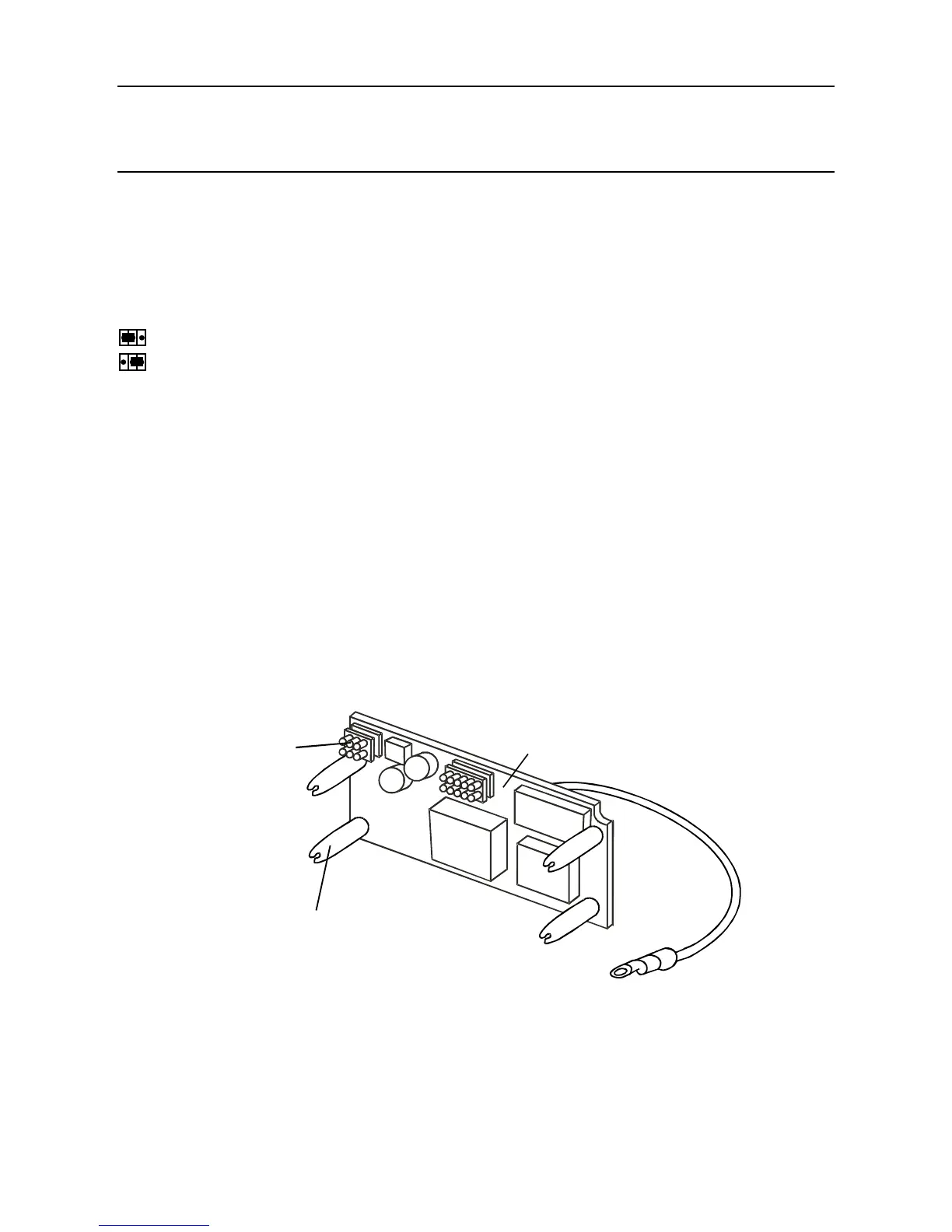

Plug
(2 off)
Mounting pillar (4 off)
LonWorks board
Earth lead
