Caution: Onlycartridgeswiththefollowingpartnumberscanbettedtothe
CertiedSensor:
2110B30x0, 31x0, 32x0, 33x0, 34x0, 35x0 series
2110B3700 - 2110B3999 range
Note: ForremoteCSACertiedSensorinstallationscombustiblecartridgesintherangeofpart
numbers 2110B3700 to 2110B3799 MUST NOT BE FITTED.
CarefullyplugthecartridgeintotheCertiedSensorbodyensuringthatthecartridgetab
lines up with the recess in the sensor body and push the cartridge, without twisting, until it is
fully home.
If the cartridge will not push fully home, re-check that the locating tab is correctly aligned with
the recess in the sensor body. Position the tab so it is resting on the tab recess wall to the
right or left of the tab recess and then turn the cartridge until the tab drops into the recess.
Caution: Do not force the cartridge as this may cause damage to the pins of the connecting
plugs. Twisting and pushing can bend the pins and make the cartridge inoperative.

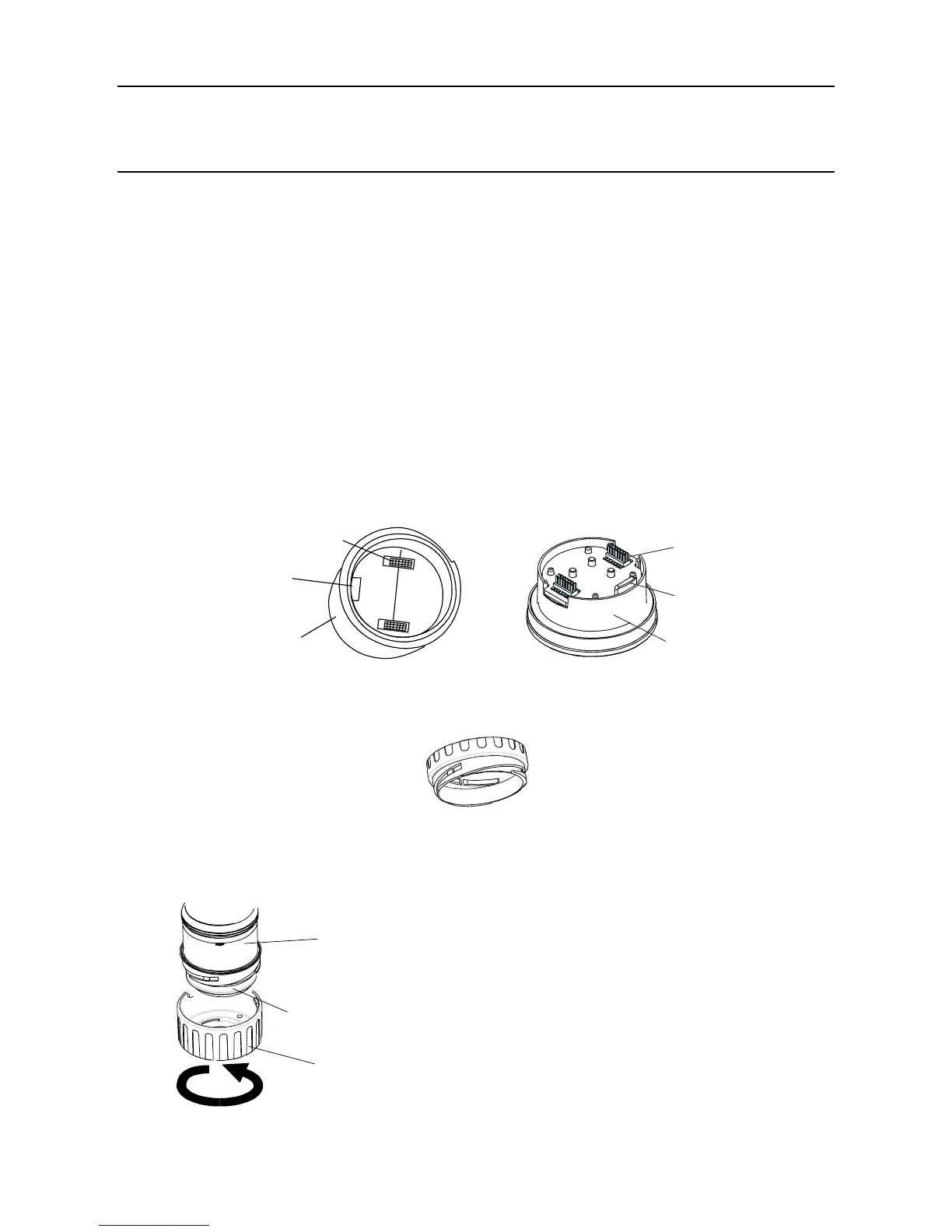

Socket (2 off)
Locating
tab
recess
Sensor body
Plug
(2 off)
Locating
tab
Cartridge
Note: IfttinganOxygencartridgeensurethattheOxygenTransducerAdaptorsuppliedwiththe
OxygencartridgeisttedtotheCertiedSensorbody.Theadaptoristtedtothesensor
bodyviaabayonettting.
53mm
18mm
(3) RetthecaptotheCertiedSensor.
Reverse the removal procedure.
3. INSTALLATION
Sensor body
Cartridge fitted to
sensor
body
Sensor cap
