2. OVERVIEW
AllthegascartridgesarethesamesizeexceptfortheOxygencartridge,whichislargerthanthe
rest. To allow for its extra length an Oxygen Transducer Adaptor, supplied with the cartridge, mounts
onthesensorbayonetxing.TheOxygencartridgeistheninsertedandthecaporaccessorytted.

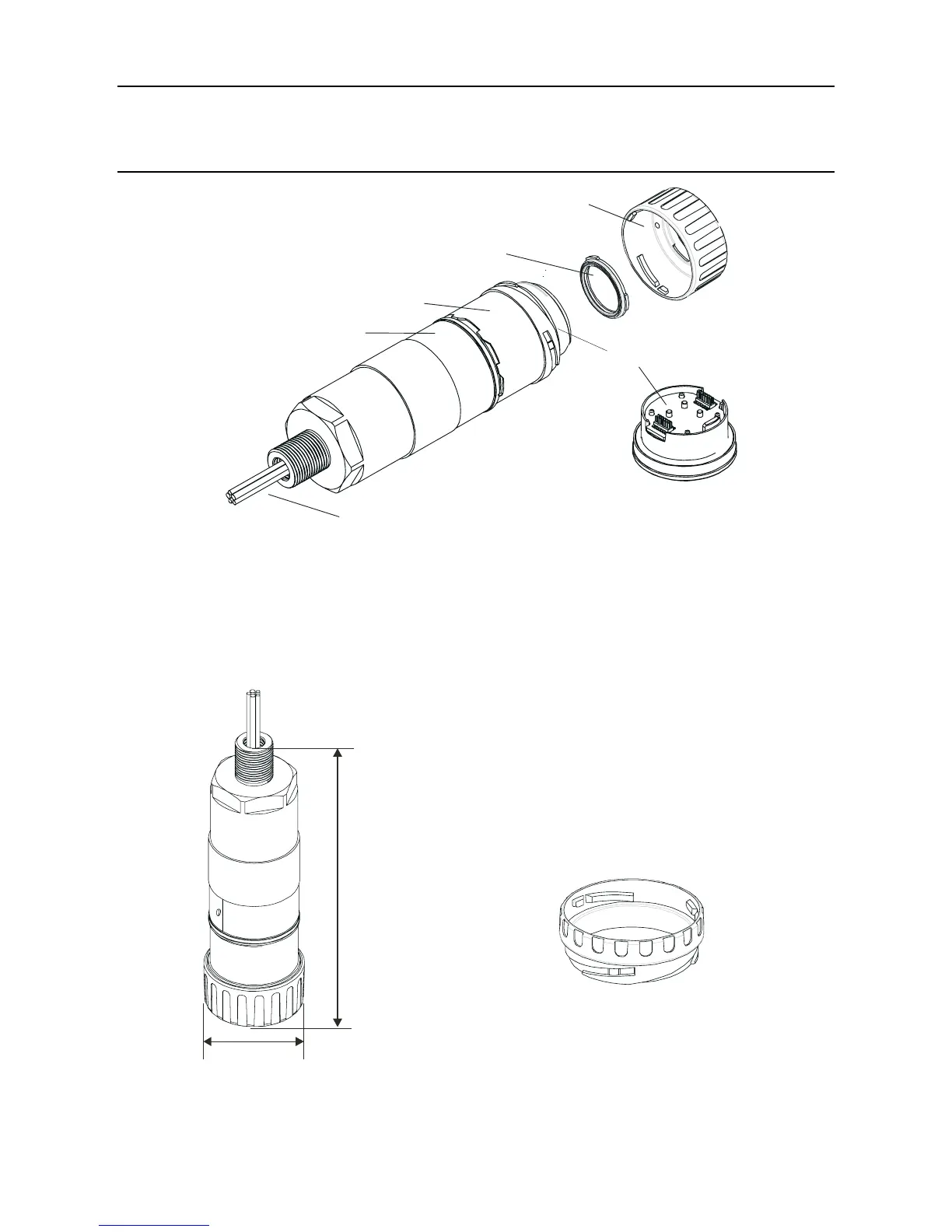

Cartridge
Cap or accessory
Seal or
filteroptional
Sensor body
Sensor cable
Certification
label
L
W
L
G
E
R E
E
Z
53mm
165mm
(177mm
with
Oxygen
transducer)
Oxygen
transducer
adaptor

Honeywell Apex Specifications

General

Type	Addressable Fire Alarm Control Panel
Power Supply	120/240 VAC, 50/60 Hz
Operating Temperature	32°F to 120°F (0°C to 49°C)
Humidity Range	10% to 93% non-condensing
Compatibility	Honeywell Notifier devices and compatible peripherals
Certifications	UL, FM, CSFM
