35
MAN0604_Issue 09_02-2013 Apex
2110M8030

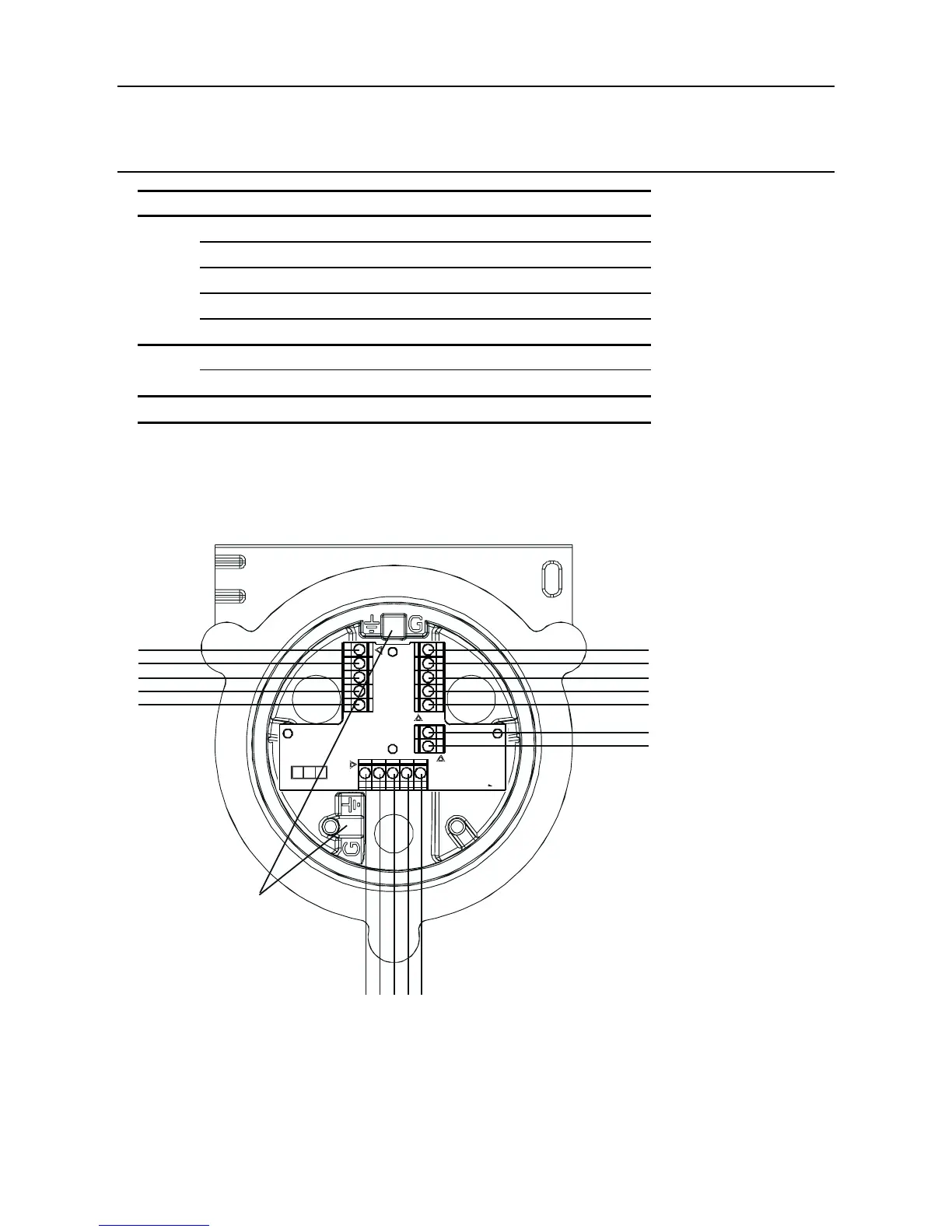

3. INSTALLATION
Terminal/Number Function Colour
SK1 1 CAN_L White
SK2
2 CAN_H Green or Blue
SK3
3 +V Red
4 0V Black
5 Not used -
SK4 1 Screen * -
2 Screen * -
G - Earth Green/Yellow
* Only connect cable screens to these terminals if they are isolated at the
remote end.
Note: Three sensor wiring terminal blocks are provided (SK1, SK2 SK3), any
two can be used.
1
2
3
4
5
5
4
3
2
1
2
1
12345
Internal earth
SK4
SK3
SK2 SK1
J1
(3) ConguretheCertiedJunctionBoxifrequired.
