Honeywell EXCEL 5000 User Manual

EXCEL CARE CONTROL ICONS ALPHABETIC REFERENCE
117 74-5577–33 (US)
EN2B-0184 GE51 R0518 (Europe)
HC (Excel Web / Excel Web II)
Functions Legacy RACL function: Calculates an output according to a user-defined heating
compensation curve.

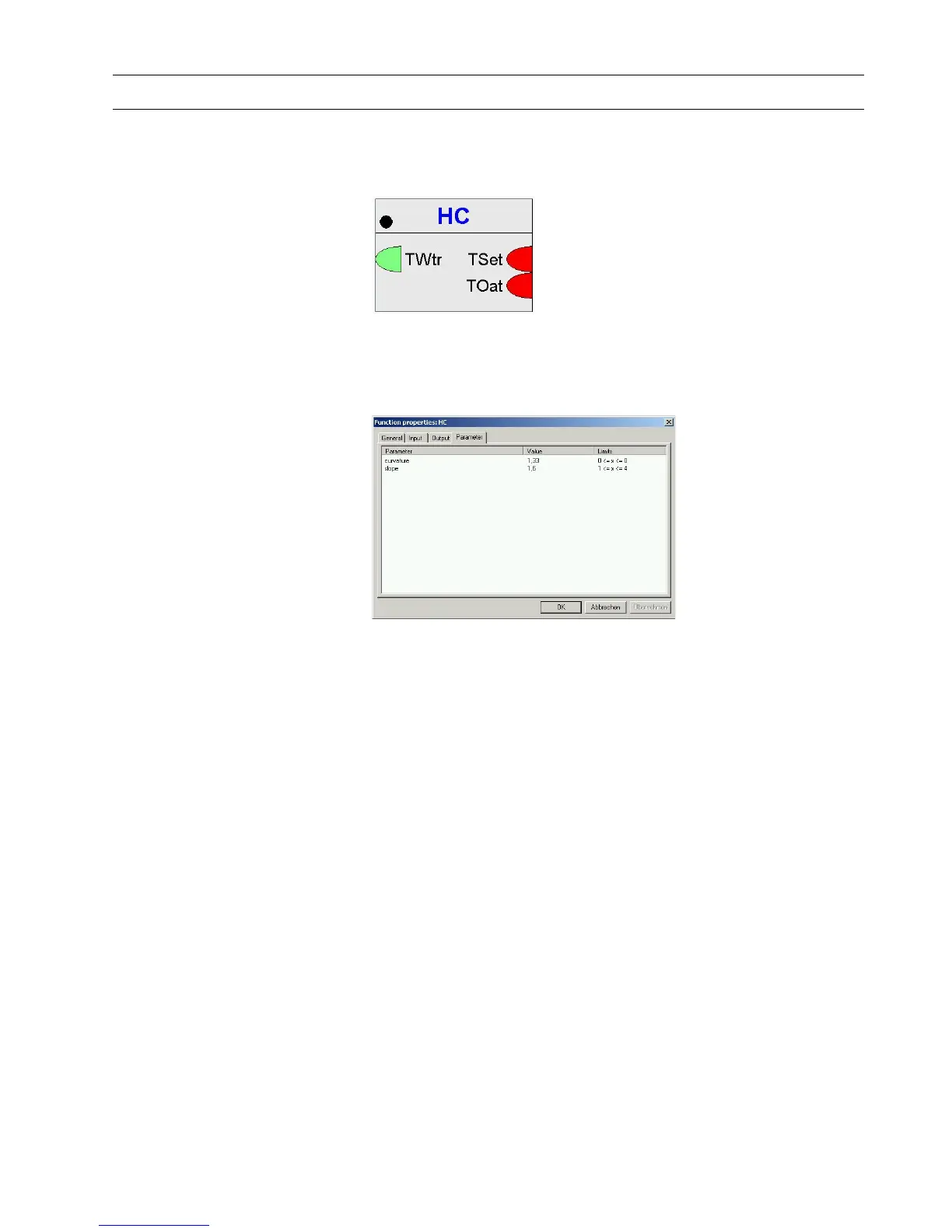

I/O Dialog Box
Inputs TSet = room temperature setpoint.
TOat = outside air temperature.
Outputs TWtr = supply water temperature.
Internal parameters
Parameter Description curvature = curvature with value 1,33 and a limit of 0 < = x < = 0 min="0.6"
max="0.8" curvature.
slope = slope with value 1,6 and a limit of 1 < = x < = 4 min="1" max="4" slope.
