Honeywell EXCEL 5000 User Manual

ALPHABETIC REFERENCE EXCEL CARE CONTROL ICONS
74-5577–33 (US) 26
EN2B-0184 GE51 R0518 (Europe)

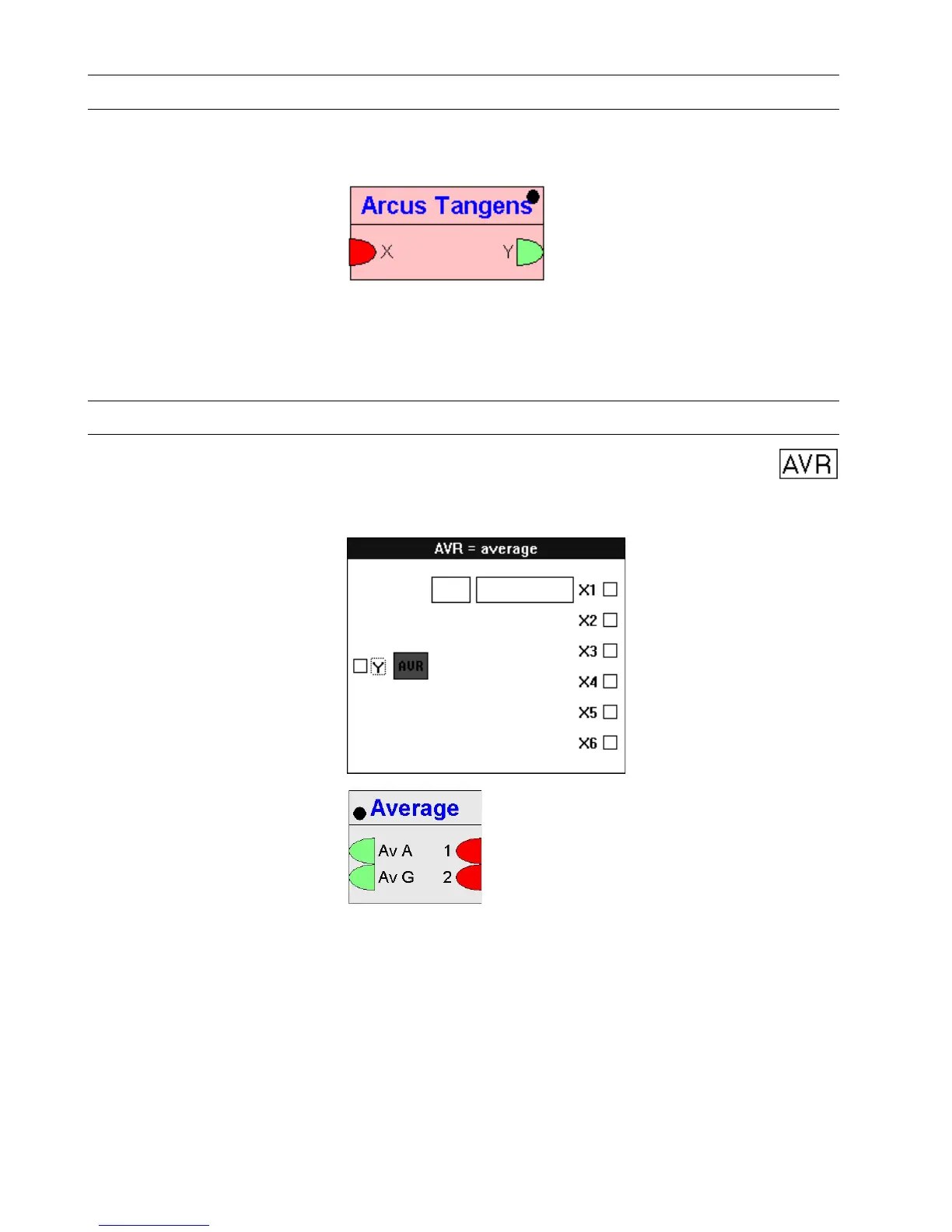

Arcus Tangens (Excel Web / Excel Web II)
Function Calculates the arcus tangens function of X. Output value will be returned in radian.
I/O Dialog Box
Input One analog input. Range: –
∞ to ∞.
Output One analog output. –
π/2 to π/2.
Internal Parameters None.
Average / AVR
Function Calculate the average of multiple analog inputs.
I/O Dialog Box
Excel Web / Excel Web II
Inputs Two through six analog inputs (X1 through X6).
You can enter the first input as a parameter (engineering unit index number and
value).
Two through thirty two analog inputs (1 through 32, Excel Web / Excel Web II).
Output One analog output (Y).
Arithmetical (AvA) and geometrical (AvG) average as analog outputs (Excel Web /
Excel Web II).
Internal Parameters None.
