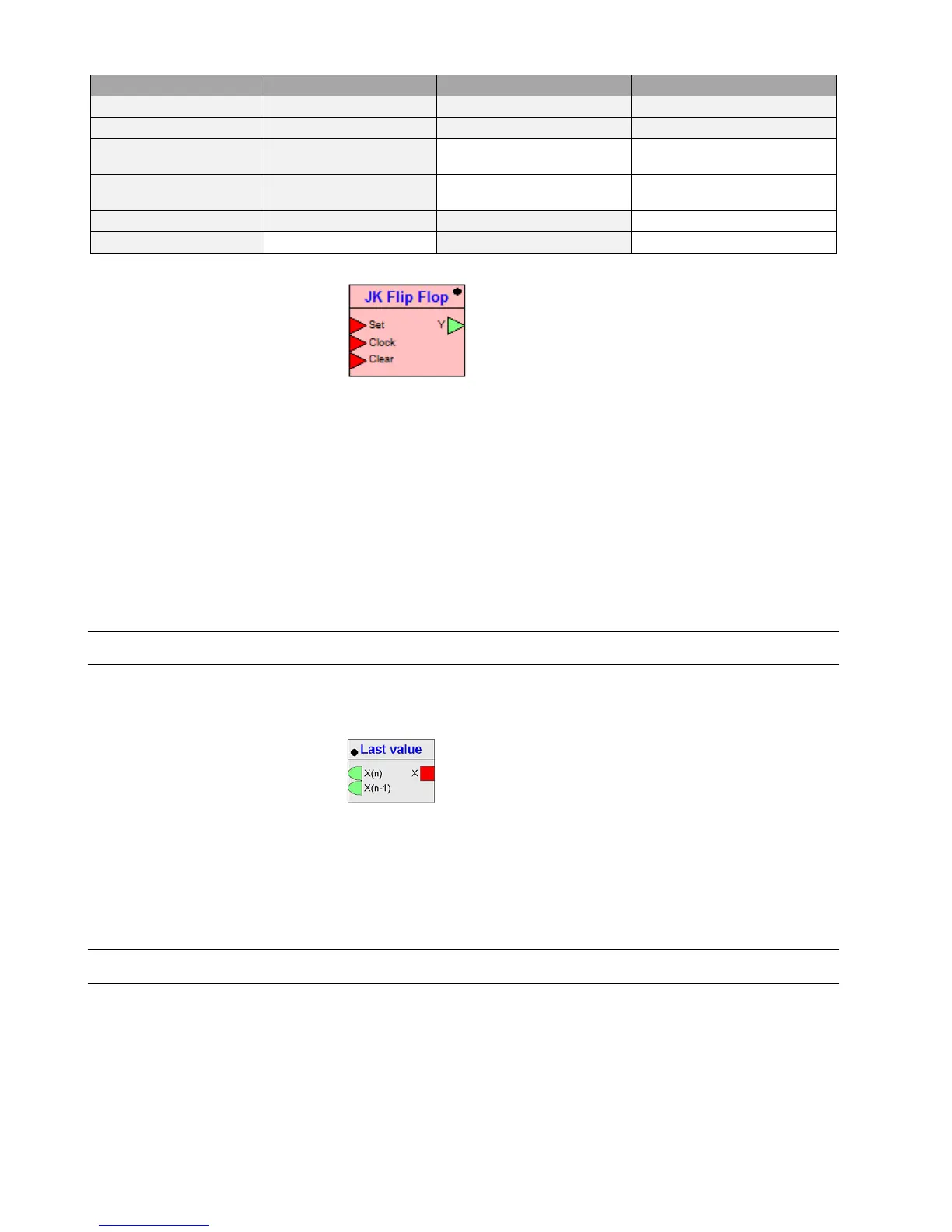

ALPHABETIC REFERENCE EXCEL CARE CONTROL ICONS

74-5577–33 (US) 124

EN2B-0184 GE51 R0518 (Europe)

Set Clear Clock Y

FALSE FALSE TRUE or FALSE "Last output"

TRUE TRUE TRUE or FALSE "Last output"

FALSE

changes from FALSE to

TRUE

Y = NOT Y

TRUE TRUE

changes from FALSE to

TRUE

Y = NOT Y

TRUE FALSE don’t care 1

FALSE TRUE don’t care 0

I/O Dialog Box

Inputs Set = Set output

Clock = Toggle output

Clear = Clear output (Reset)

Outputs Y = output signal

Internal parameters None

Registers Last clock: clock input in last cycle

Last output: output in last cycle

Special conditions First loop: "Last clock" register is initialized with TRUE (avoid unintentional edge

detection in first loop

"Last output" register is initialized with 0

Last Value (Excel Web / Excel Web II)

Function Provides the current value and the value of the last control cycle.

I/O Dialog Box

Inputs One input (X).

Outputs Two outputs where:

“X(n)" = current value and

“X(n-1)" = value of last control cycle.

Internal parameters None

Linear Converter (Excel Web II)

Prerequisite Controller OS 3.01.00 or higher

Function Converts an input value within definable limits to an output value

Formula y = y1 + (x – x1) / (x2 – x1) * (y2 – y1)
