EXCEL CARE CONTROL ICONS ALPHABETIC REFERENCE
25 74-5577–33 (US)
EN2B-0184 GE51 R0518 (Europe)

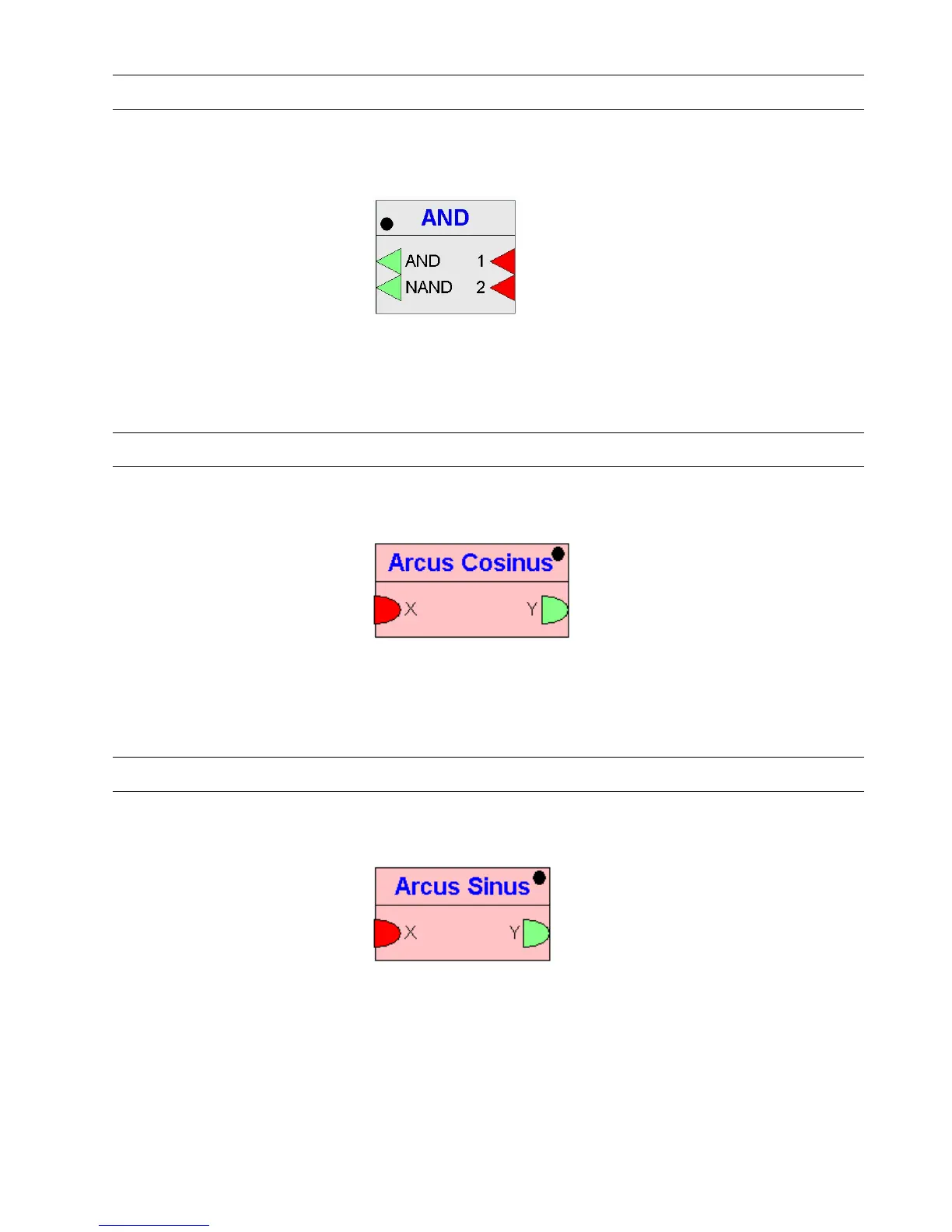

AND (Excel Web / Excel Web II)
Function AND output becomes TRUE(1) if all inputs are TRUE(1). NAND output is the
inverted AND output.
I/O Dialog Box
Inputs Two through thirty two digital inputs (1 through 32).
Output Two digital outputs.
Internal Parameters None.
Arcus Cosinus (Excel Web / Excel Web II)
Function Calculates the arcus cosinus function of X. Output value will be returned in radian.
I/O Dialog Box
Input One analog input. Range: –1 to 1. Values out of range will be adopted.
Output One analog output. Range: 0 to
π.
Internal Parameters None.
Arcus Sinus (Excel Web / Excel Web II)
Function Calculates the arcus sinus function of X. Output value will be returned in radian.
I/O Dialog Box
Input One analog input. Range: –1 to 1. Values out of range will be adopted.
Output One analog output. Range: –
π/2 to π/2.
Internal Parameters None.
