EXCEL CARE CONTROL ICONS ALPHABETIC REFERENCE
81 74-5577–33 (US)
EN2B-0184 GE51 R0518 (Europe)

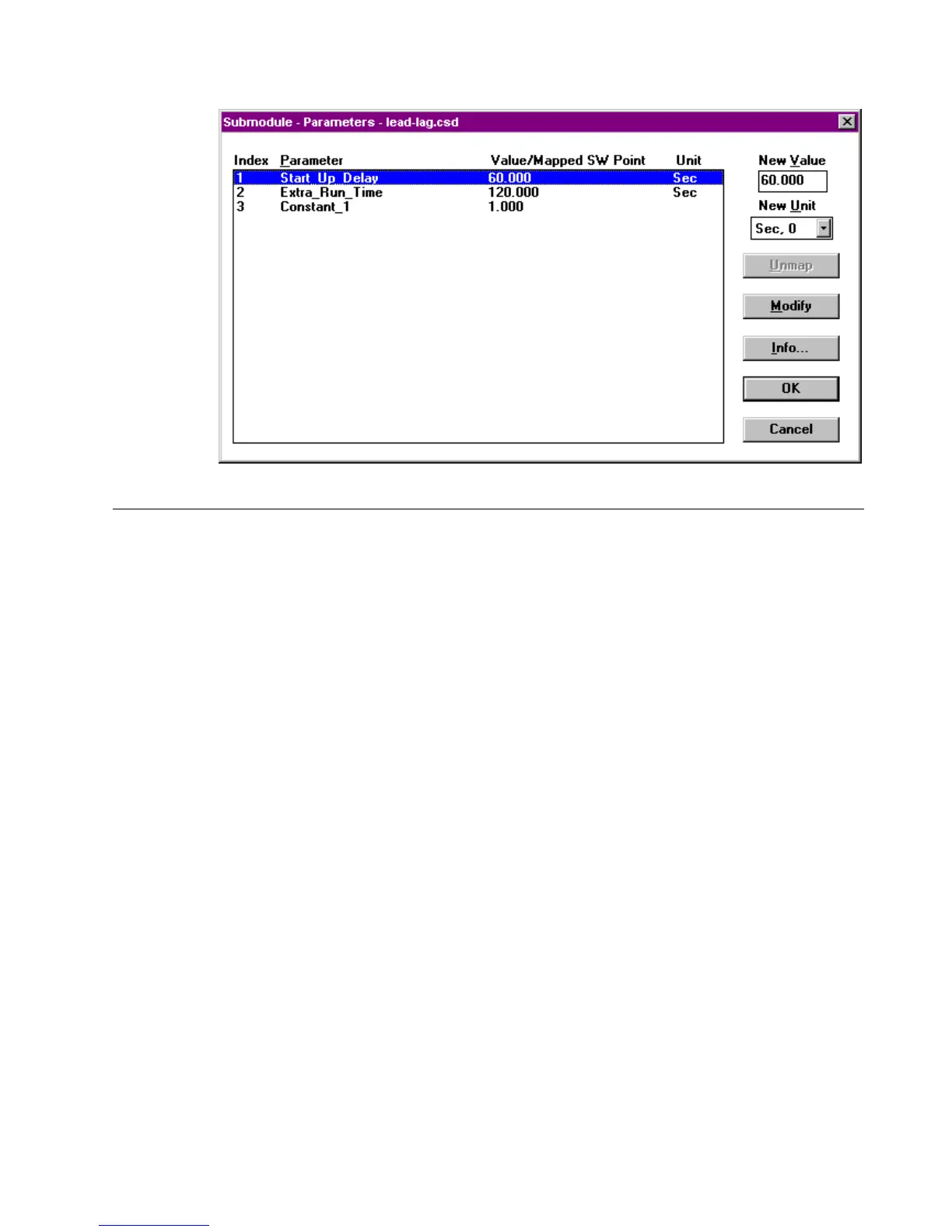

Internal Parameters
Power Demand Control XFMs
Function The power demand control functions measure the energy consumption of the plant
electrical units. They then calculate current power consumption, compare it to a
power limit, and decide which loads to switch on or off.
Power demand control consists of four XFMs: XFM 35, XFM 36-1, XFM 36-1S and
XMF 36-1R. Many load switching behaviors are available because multiple XFM 36-
1, XFM 35-1S and XFM 36-IRs with various parameter settings can connect to a
single XFM 35.
XFM 35 is the strategy program. It takes in the totalizer point values, applies them to
the chosen algorithm, and outputs control signals to the XFM 36-1/S/R single-stage
load programs in each of up to three priority groups. Each priority group can contain
up to 50 single-stage load programs (XFM 36-1/S/Rs) connected in a loop.
NOTE: Although 50 XFM 36-1/S/Rs are allowed, controller cycle time will be long
with large numbers of XFM 36-1s. Use the smaller XFM 36-1R or XFM 36-
1S to use less controller memory and cycle time. A total of 127 XFMs are
allowed in a controller.
