Honeywell EXCEL 5000 User Manual

EXCEL CARE CONTROL ICONS ALPHABETIC REFERENCE
123 74-5577–33 (US)
EN2B-0184 GE51 R0518 (Europe)

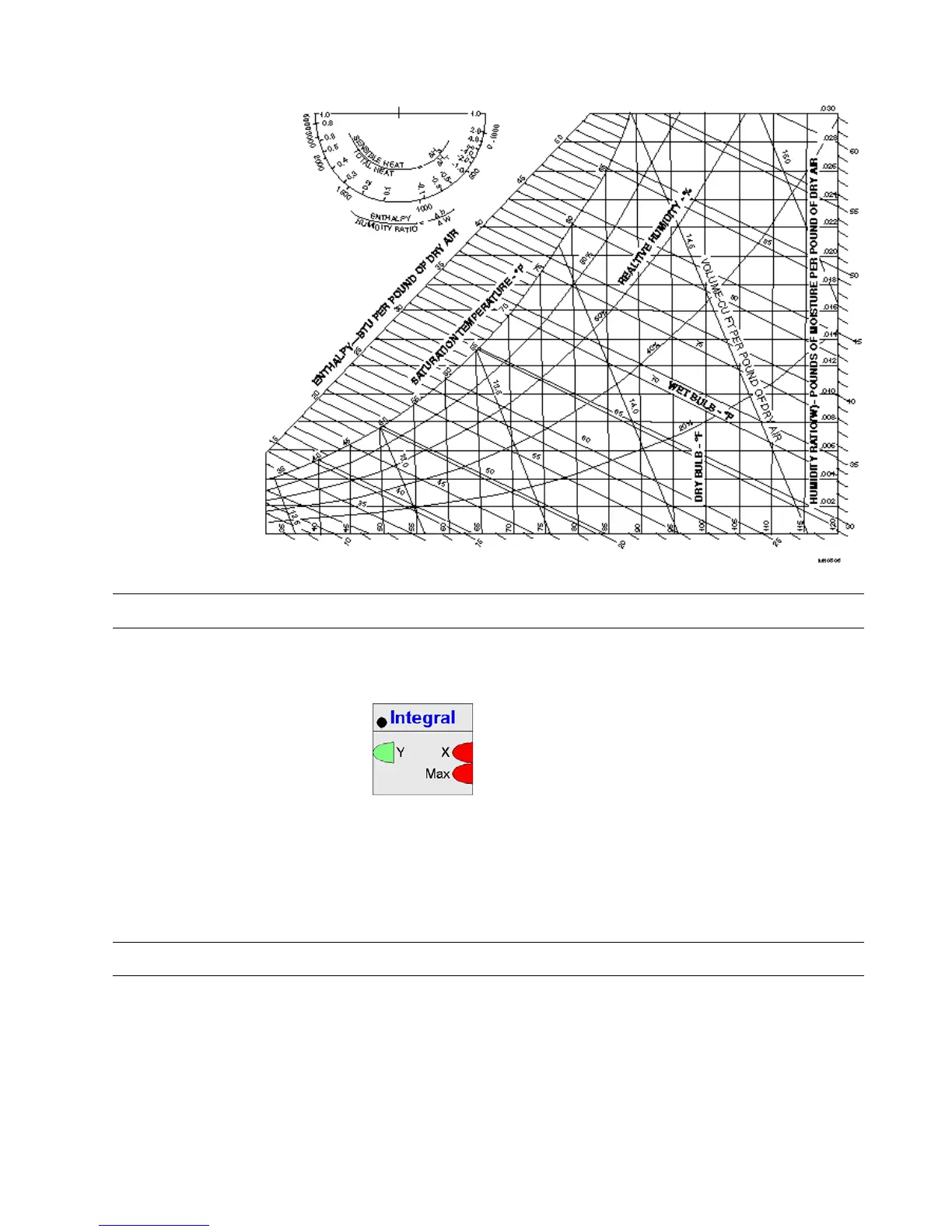

The following diagram illustrates h,x operation:
Integral (Excel Web / Excel Web II)
Function Calculate the integral (sum) of the input signal.
I/O Dialog Box
Input Two analog inputs, where:
X = input
Max = maximum value of Y (integral limit)
Output One analog output (Y = integral output).
Internal Parameters Integral action time (Tn).
J-K Flip Flop (Excel Web / Excel Web II)
Prerequisite Controller OS 3.01.00 or higher
Function Toggles an output depending to the set, clear command and clock conditions
Formula An input is read as TRUE if the value is >= 0.5 and FALSE if the value is < 0.5
