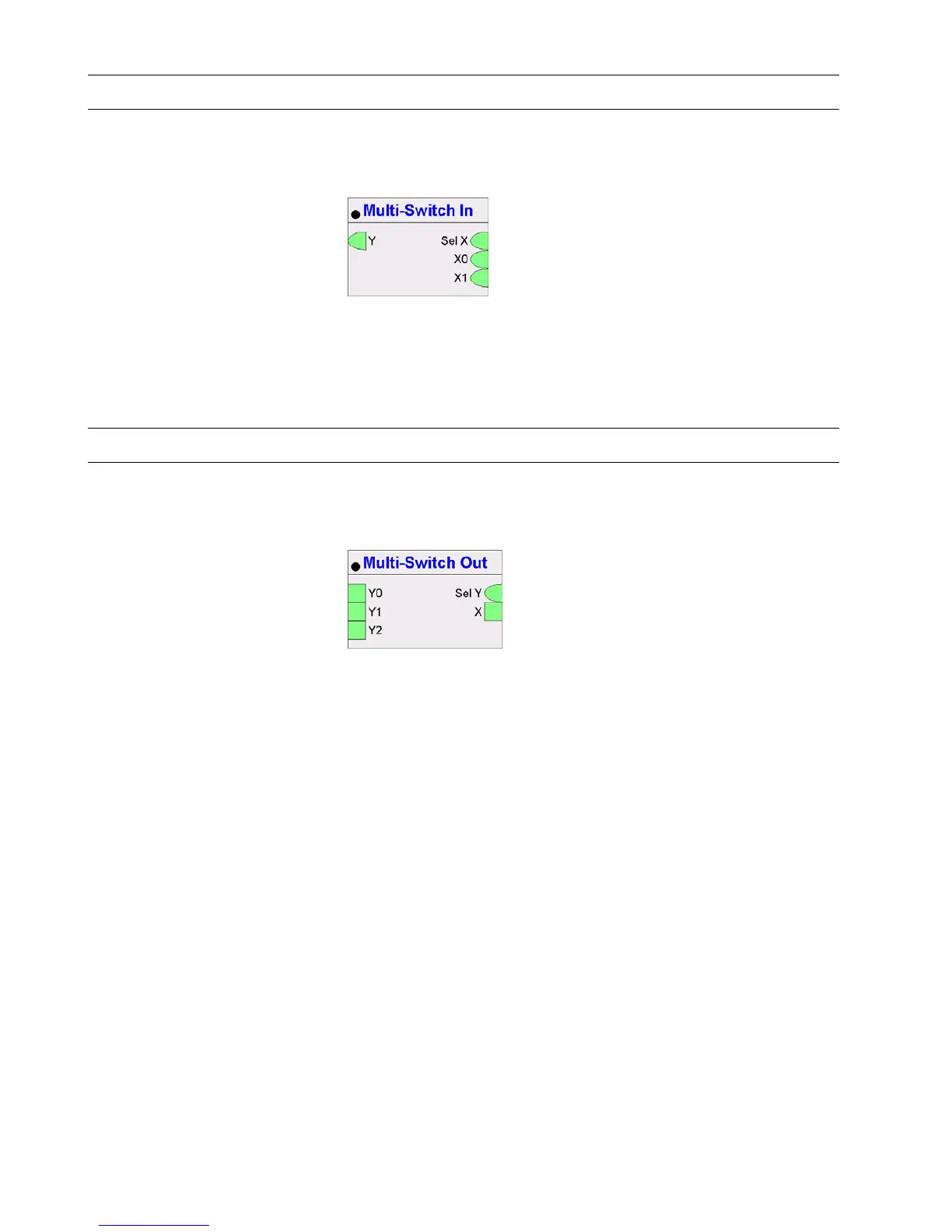

Multi-Switch In (Excel Web / Excel Web II)
Function Conditional switch. Switches the value of a specified input to the output, depending
on the "Sel X" input.
I/O Dialog Box
Input Two through thirty two analog inputs.
One analog input (Sel X) to select the active input.
Output One analog output (Y).
Internal Parameters None.
Multi-Switch Out (Excel Web / Excel Web II)
Function X input is copied to the output selected by the "Sel Y" input. The parameter defines
if the other outputs are left unchanged or set to 0
I/O Dialog Box
Input One analog input.
One analog input (Sel Y) to select the active output.
Output Two through thirty two analog outputs.
Internal Parameter Defines if the unselected outputs are left unchanged or set to 0.
