Honeywell EXCEL 5000 User Manual

EXCEL CARE CONTROL ICONS ALPHABETIC REFERENCE
125 74-5577–33 (US)
EN2B-0184 GE51 R0518 (Europe)
Inputs X = Value to convert
X1 = input value limit 1
X2 = input value limit 2
Y1 = output value limit 1
Y2 = output value limit 2
Outputs Y = converted value
Internal Parameters none
Special conditions a) (x1 <= x2) AND (x <= x1): y = y1
b) (x1 <= x2) AND (x >= x2): y = y2
c) (x1 > x2) AND (x >= x1): y = y1
d) (x1 > x2) AND (x <= x2): y = y2

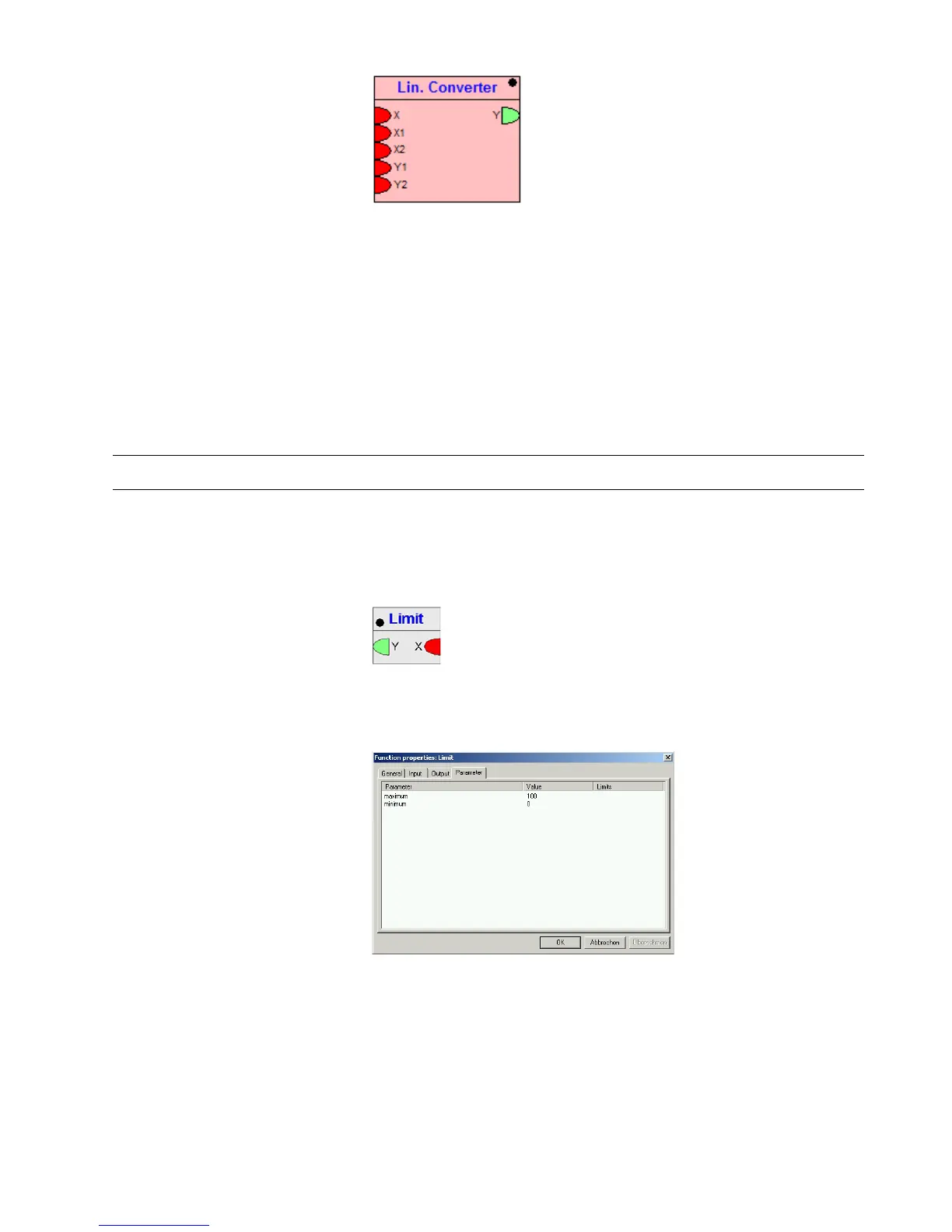

Limit (Excel Web / Excel Web II)
Function Limits input X to a range between minimum and maximum. E.g. Y becomes 79 if
X = 102 and the maximum is set to 79.
Formula Min = “0” Max = “100”
I/O Dialog Box
Inputs One analog input (X)
Outputs One analog output (Y) counting the limited input value.
Internal Parameters
Parameter Description P1 Maximum “100”
P2 Minimum “0”
