Internal Parameters
Excel Web / Excel Web II

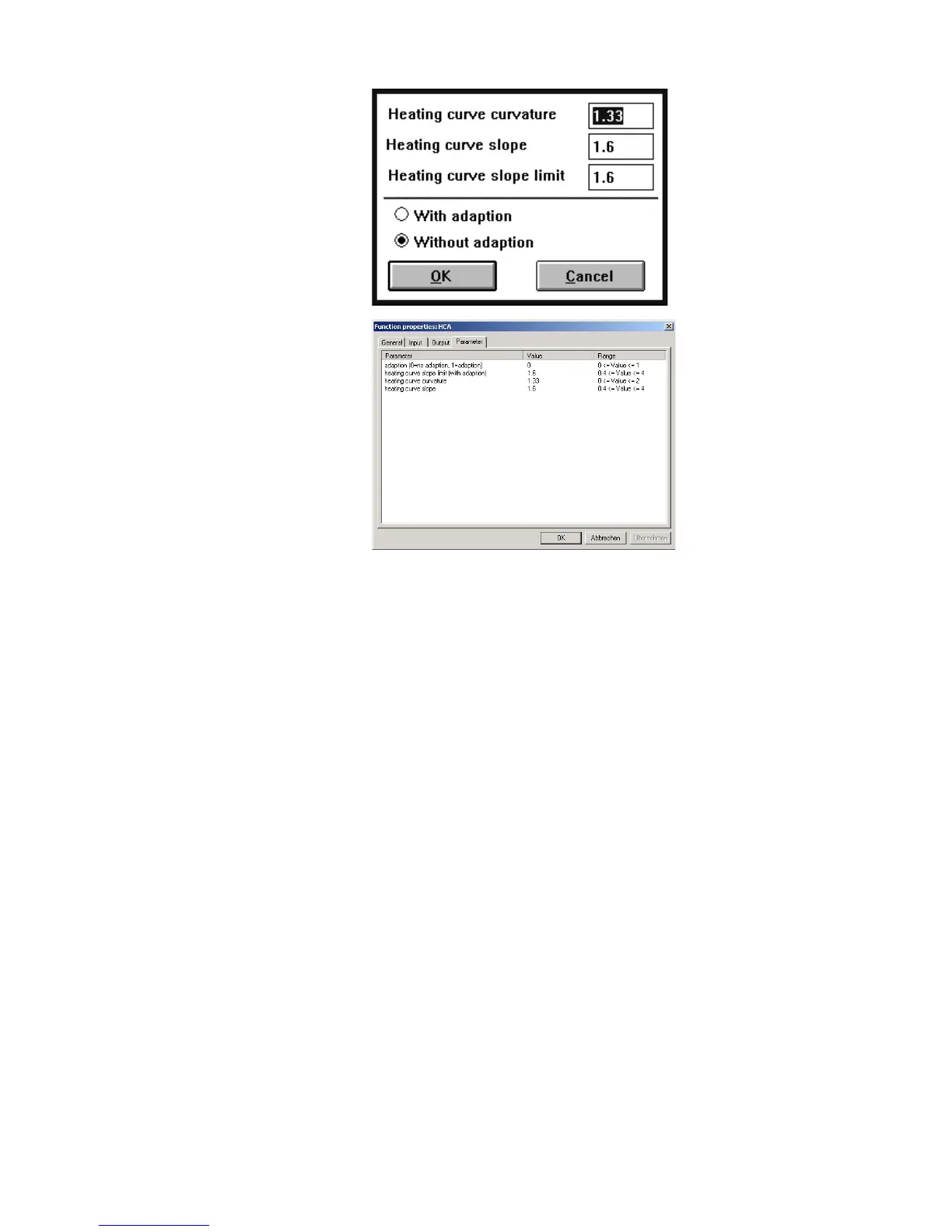

Heating curve curvature P1 Number type: Decimal, Unit: None
Default: 1.33, Range: 0 to 2.
Heating curve slope P2 Number type: Decimal, Unit: None
Default: 1.6, Range: 0.4 to 4.5
Heating curve slope limit P3 Number type: Decimal, Unit: None
Default: 1.6, limits: 0.4 to 4.5
Adaption (radio button) P4 Selection whether operation is with or without adaptation.
Range: 0 through 2, default: 0 (1= with adaption, 0= no adaption)
Parameter Number
Descriptions With Adaptation
P1 Heating curve curvature
P2 Heating curve slope
P3 Heating curve slope limit
P4 1 if adaptation is selected
Without Adaptation
P1 Heating curve curvature
P2 Heating curve slope
HCA Operation HCA is a weather-compensated discharge air temperature calculator, that is,
software assigns discharge air temperature setpoints to temperatures by means of a
heating curve. If a room temperature sensor is connected, the controller can adapt
this heating curve automatically. Control example:
