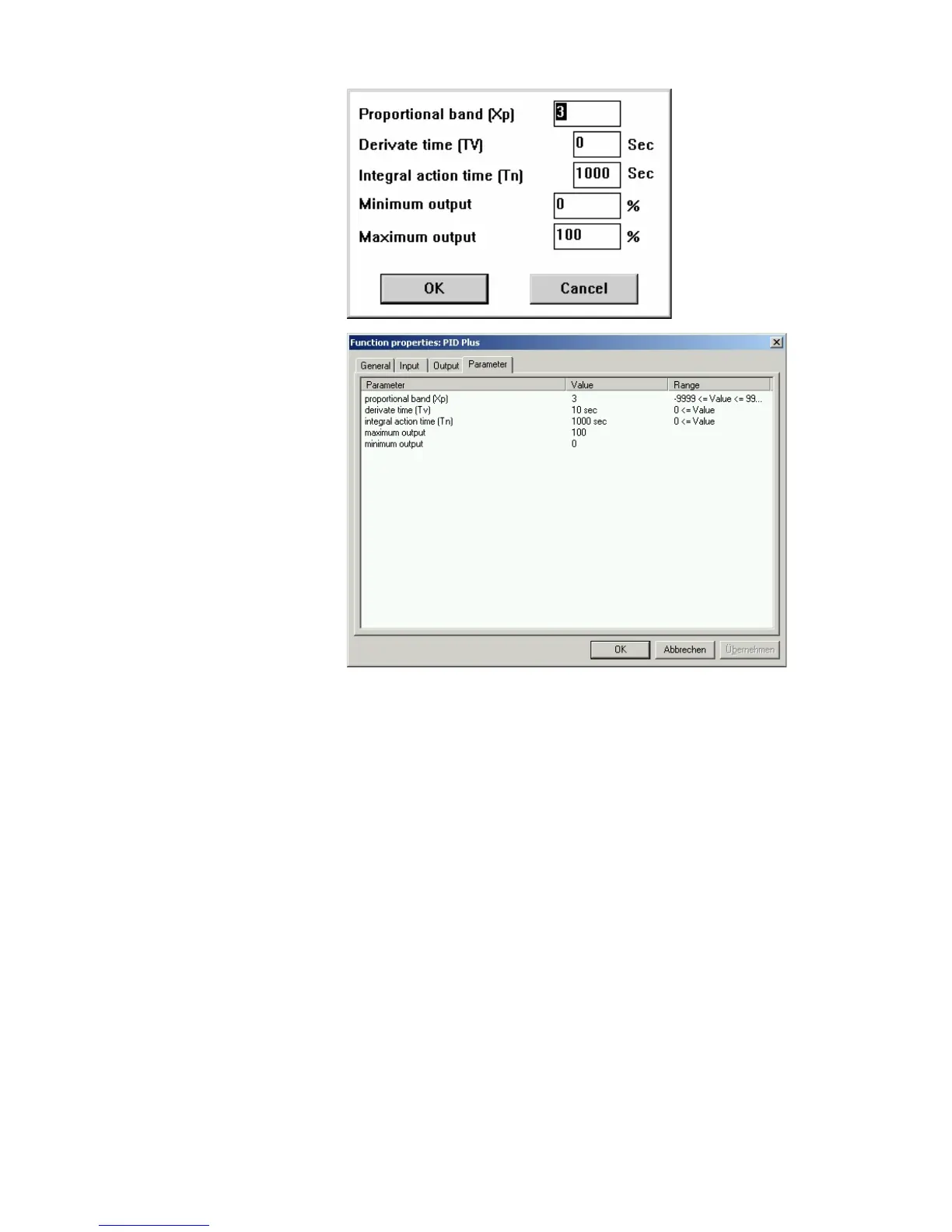

Internal Parameters
Proportional band Xp Number type: decimal, Unit: same as the controlled variable (X)
Default: 3.0, Range: -9999.0 through 9999.0
Proportional band value is equivalent to the throttling range.
NOTE: Negative values will accomplish an opposite action on the output. DO NOT
use zero. This does not apply to Derivative or Integral.
Derivative time Tv Number type: whole number, Unit: seconds
Default: 0 sec, Range: 0 through 7200 sec
Integral action time Tn Number type: whole number, Unit: seconds
Default: 1000 sec, Range: 0 through 7200 sec
If Integral action time is less than 15 seconds, integral control is disabled.
Minimum output Number type: decimal, Unit: percent
Default: 0.0 percent, Range: 0 through 100.0 percent
Minimum output must be less than Maximum output.
Maximum output Number type: decimal, Unit: percent
Default: 100.0 percent, Range: 0 through 100.0 percent
To Next Page
