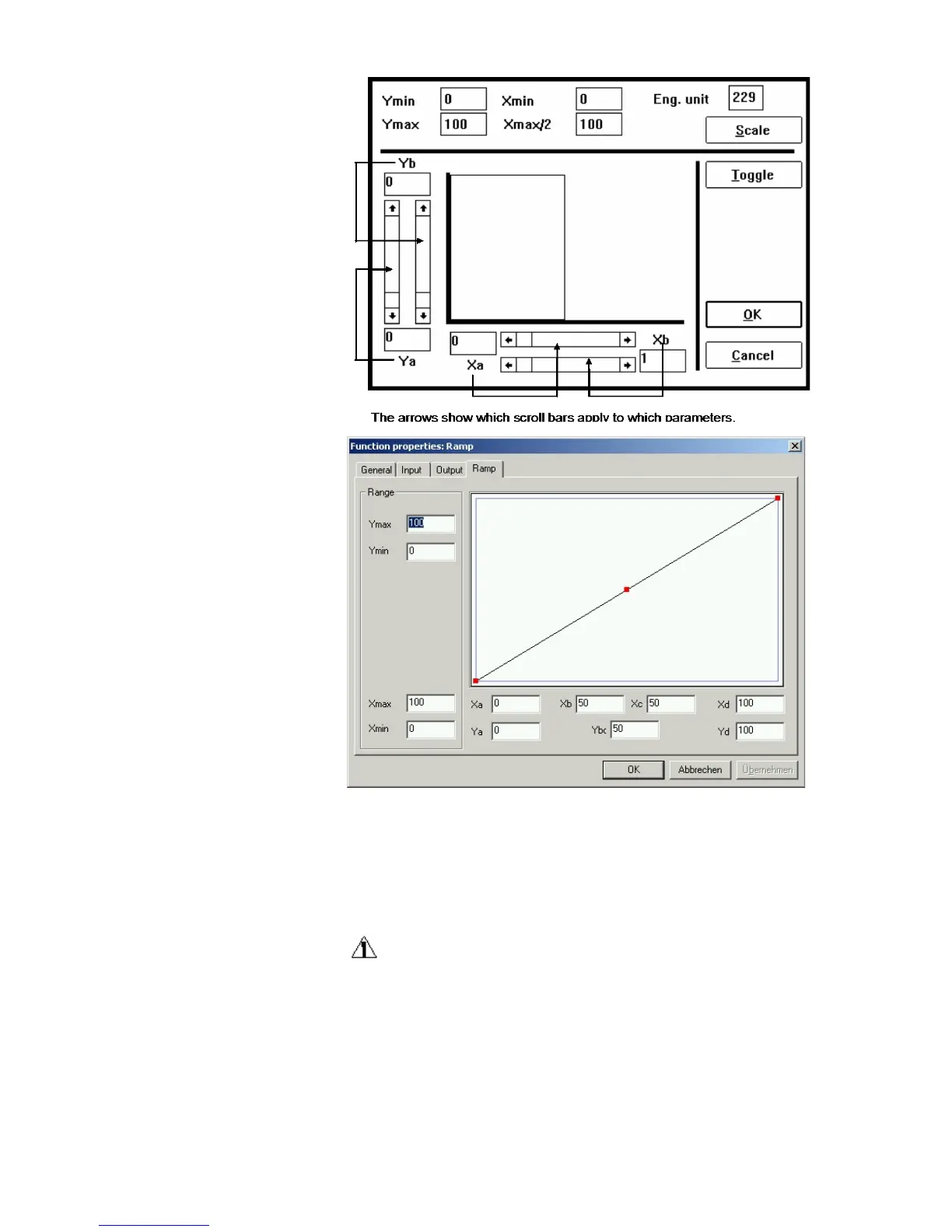

Use the following procedure to create two curves for the desired Y output. For
creating a ramp for Excel Web / Excel Web II, please refer to the “Creating a ramp
(Excel Web / Excel Web II)“ section after the following procedure.
Creating a Ramp 1. Enter the scale limits (Ymin, Ymax, Xmin, Xmax/2 and the engineering unit in
the editing boxes.
2. Click Scale to save the scale limits.
CAUTION
Do not forget to click the Scale button to save the scale limit entries.
