EXCEL CARE CONTROL ICONS ALPHABETIC REFERENCE
39 74-5577–33 (US)
EN2B-0184 GE51 R0518 (Europe)
Descriptions P3 On time (seconds)
P4 Off time (seconds)
CYC Operation On time establishes the duration of the high level while Off time establishes the
duration of the low level. Software sends the sequence to Output Y as long as a

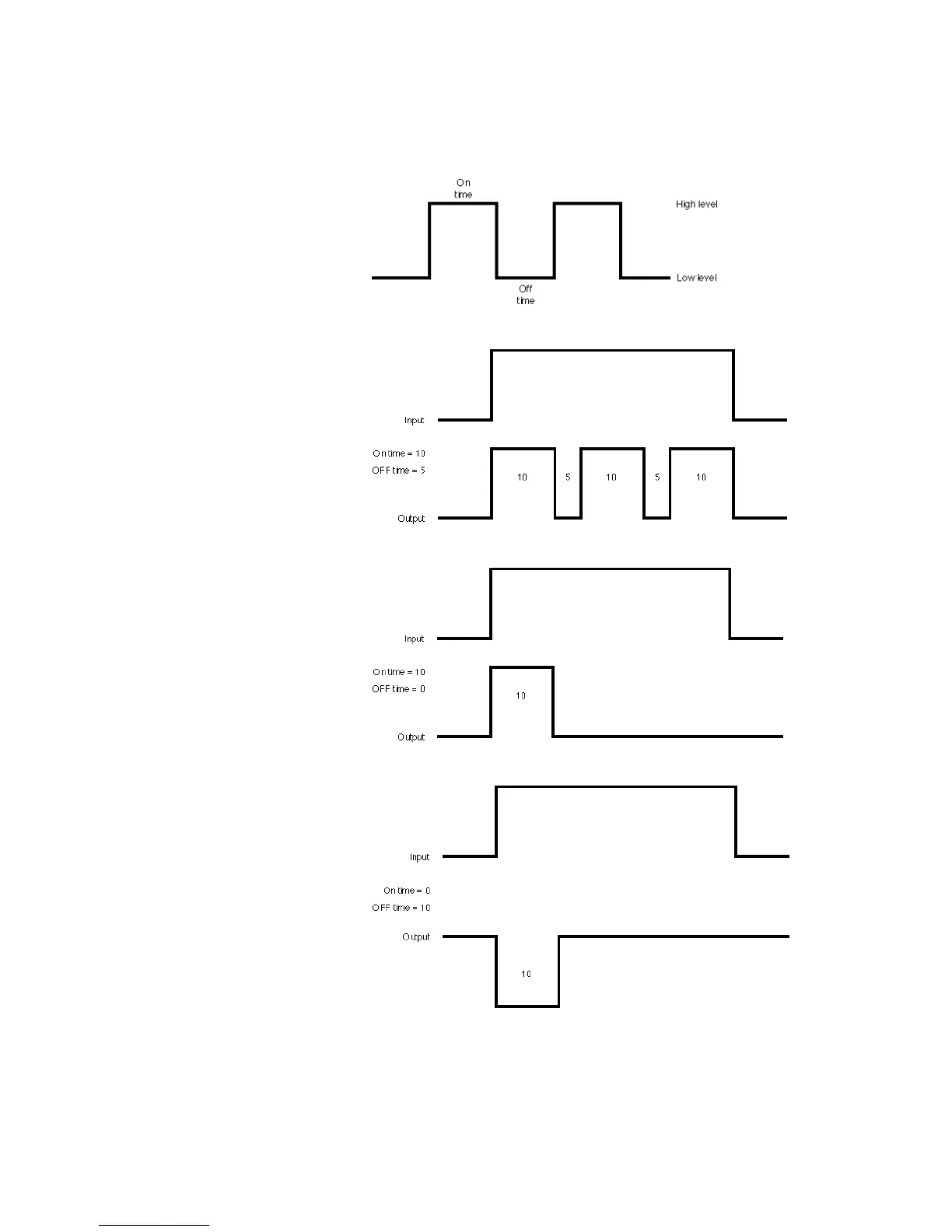

signal greater than or equal to 1 is present in Input X. Illustration:
Output Variations The output cycles only while the input is 1:
If the OFF time is set to 0, a single positive pulse is generated:
If the ON time is set to 0, a single negative pulse is generated:
If the input is removed mid-cycle, the output continues to complete that cycle.
