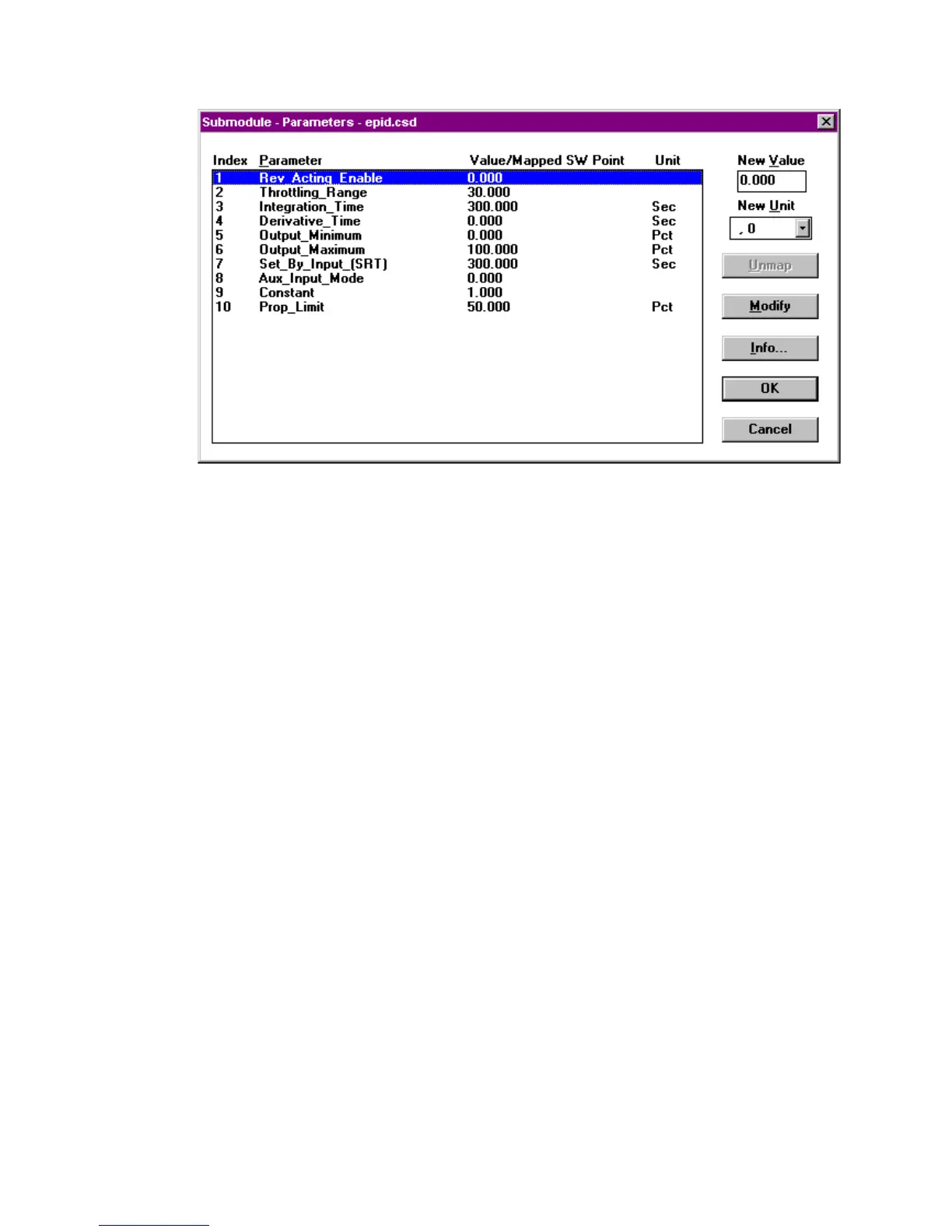

Internal Parameters
Rev Acting Enable P1 Controls the action of an output
0 = direct action
1 = reverse action
Throttling Range (Xp) P2 Equivalent to the proportional band value
NOTE: Do not set this parameter to 0
Integration Time (Tn) P3 If this parameter is set to 0, the integral control is disabled
Derivative Time (Tv) P4 If this parameter is set to 0, the derivative control is disabled
Output Minimum P5 The minimum of the output will be limited to this value. Output minimum must
be < Output maximum.
Output Maximum P6 The maximum of the output will be limited to this value. Output minimum must
be < Output maximum. Output maximum must be > Output minimum.
Set by Input (SRT) P7 Do not change or set this parameter.
Aux Input Mode P8 see pevious Aux Input Function description
0 = auxiliary input value is ignored
-1 = for direct-acting low limit or reverse-acting high limit
+1 = for reverse-acting low limit or direct-acting high limit
Constant P9 Do not change this parameter.
Prop Limit P10 Limits the maximum calculated output of the proportional control. If the
parameter is set to 0, the proportional control is disabled.
