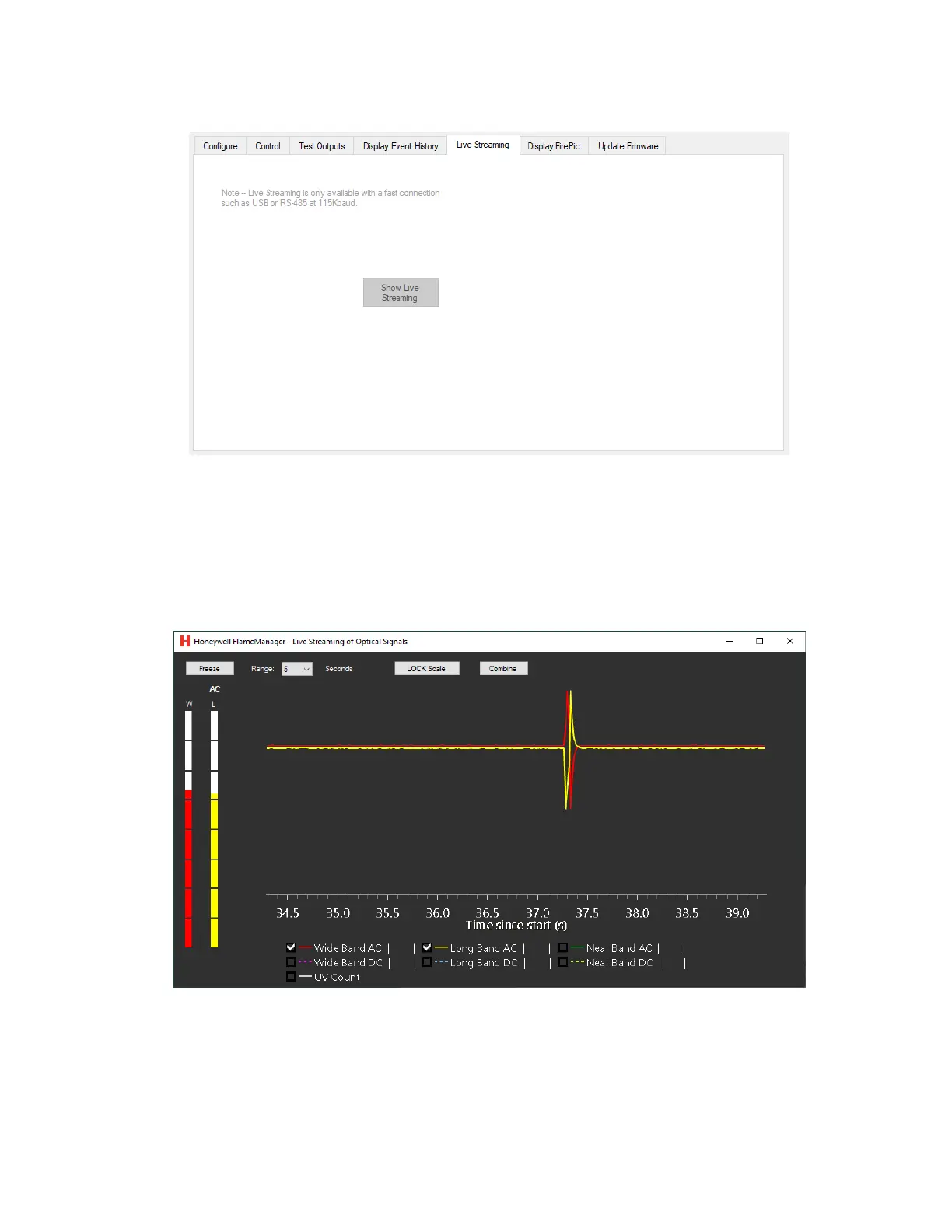

The Live Streaming tab is very simple as shown below. It may be useful to press the button [Disable
Basic Status Updates] at the top right of the main form in order to conserve network bandwidth and
produce more smoothly scrolling graph.
When the button [Show Live Streaming] shown in the previous image is pressed, a new form will
open like the one shown below. This automatically scales vertically to accommodate the huge 32-bit
dynamic range of the FS24XPlus™. The large pulse shown is the self-test pulse which occurs twice
per minute. At times when the self-test pulse is not visible, the graph will zoom in and appear noisier.
The vertical bars on the side of the graph show the relative signal amplitude in a log scale. It is often
useful to disable the DC graphs to reduce clutter. One of the buttons facilitates separating the DC
and AC signals into different regions of the form.
