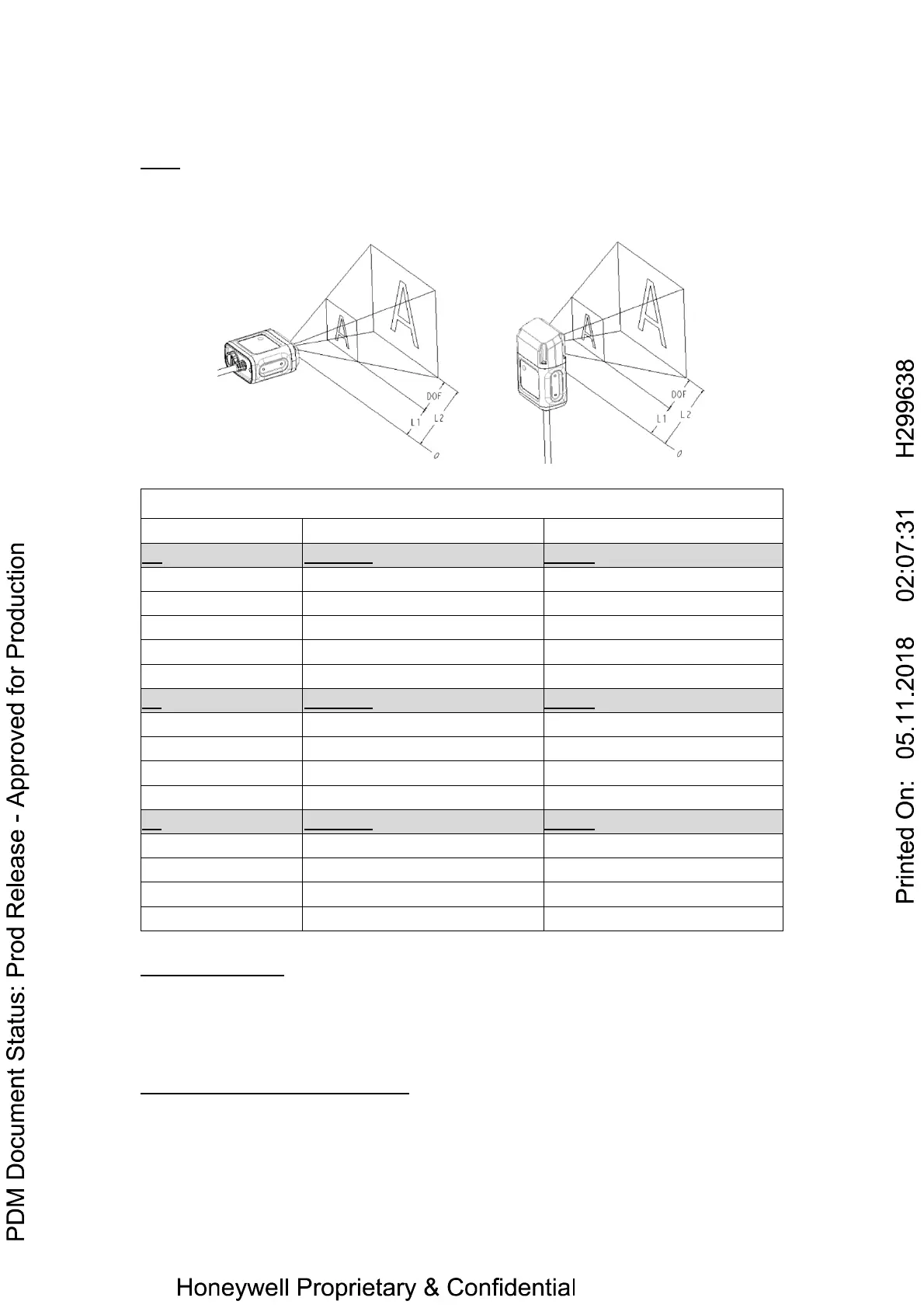

Optic Characteristics
DOF
Refer the data in the following table to adjust the installation distance for your
application.
DOF= L1~L2
Depth of Field (DOF)
Symbology
H
V
HD
Horizontal (L
1
~L
2
)
Vertical (L
1
~L
2
)
4mil Code 38
50~80 mm
25-55 mm
5mil Code 39
30~115 mm
25-90 mm
13 mil UPC
40~175 mm
25-150 mm
10 mil Data Matrix
22~ 128 mm
25-105 mm
20 mil Data Matrix
23~195 mm
25-170 mm
SR
Horizontal
Vertical
5mil Code 39
64~140 mm
39-115 mm
13 mil UPC
55~405 mm
30-380 mm
10 mil Data Matrix
62~190 mm
37-165 mm
20 mil Data Matrix
47~375 mm
25-350 mm
ER
Horizontal
Vertical
5mil Code 39
147~218 mm
122-193 mm
13 mil UPC
71~480 mm
46-455 mm
10 mil Data Matrix
135~250 mm
110-225 mm
20 mil Data Matrix
102~400 mm
77-375 mm
FOV Calculation
Use the data in the following table into formula to calculate the FOV for your
application.
!"#
$%&'(
) *+
,
-
.
/ -
0
1 234
5
6
*
7 8
9
Example: HF800HD-1-1H @ 50mm
!"#
:
) *
;
,
< / <=
0
1 234
5
>*?*
*
7
8@
)
31.7mm
!"#
A
) *;
,
< / <=
0
1 2345
BC?B
*
7 8@ )41.6mm
