Introduction
About This Manual
This Reference Manual provides installation and programming instructions for the
HF800 fixed mount barcode reader.
Product specifications, dimensions, warranty and customer support information are
also included.
Suggest to configure the reader with DataMax
®
Configuration Tool to make the
reader working properly.
Model Description
The model type of HF800 can be separated into horizontal model and vertical model.
Each model type includes the version of HD, SR and ER to meet different DOF
requirement.
HF800 barcode reader series are all listed in the below table:
SKU
Description
HF800HD-1-1H
KIT, BLACK, HD, ETHERNET, STANDARD CAMERA
HF800SR-1-1H
KIT, BLACK, SR, ETHERNET, STANDARD CAMERA
HF800ER-1-1H
KIT, BLACK, ER, ETHERNET, STANDARD CAMERA
HF800HD-1-1V
KIT, BLACK, HD, ETHERNET, VERTICAL CAMERA
HF800SR-1-1V
KIT, BLACK, SR, ETHERNET, VERTICAL CAMERA
HF800ER-1-1V
KIT, BLACK, ER, ETHERNET, VERTICAL CAMERA

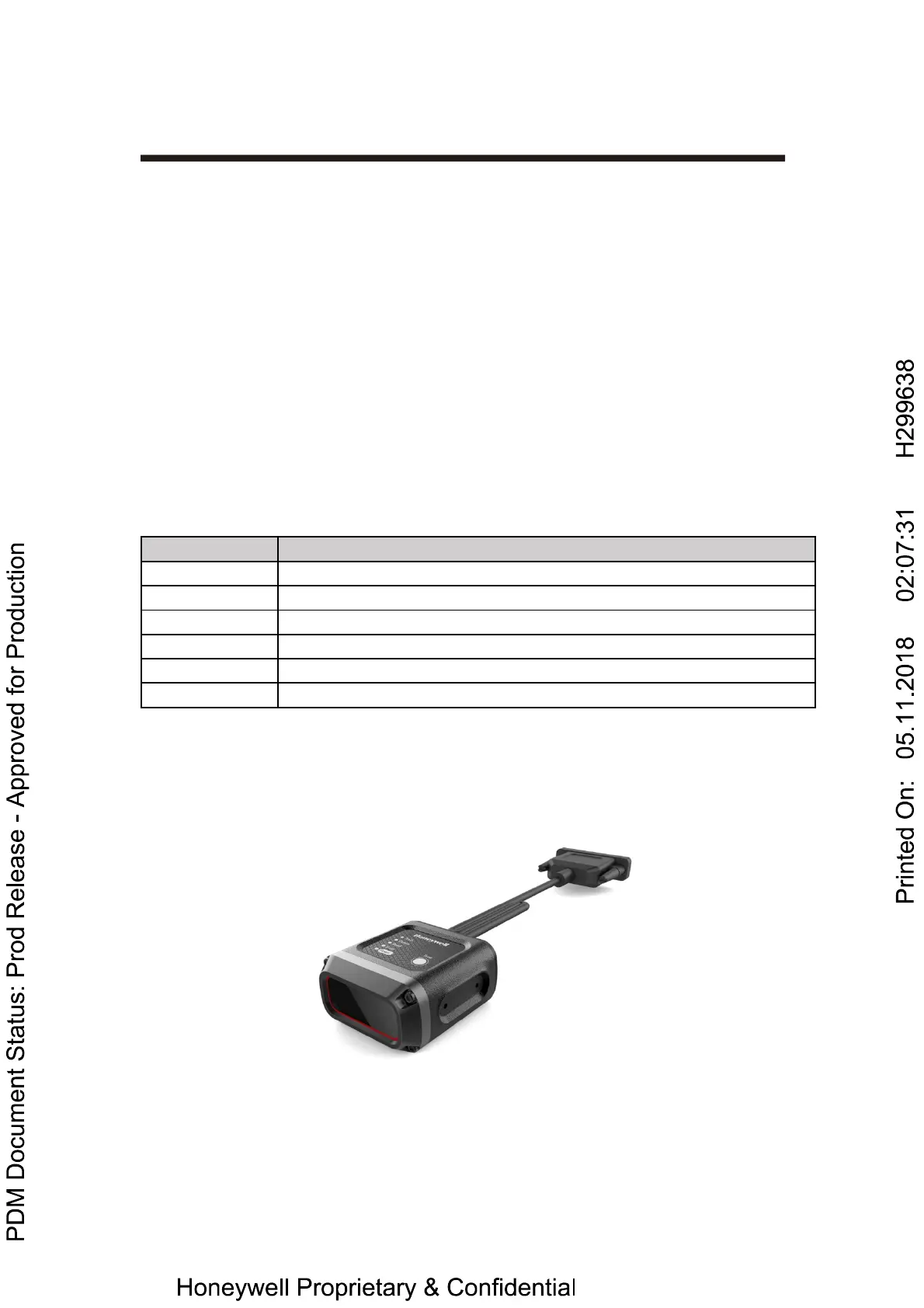

1. Horizontal model
This horizontal model type is uesed for most use cases . This model provides a laser
aimer which helps user to locate the central position of the decoding area.
○
1
Lens ○
2
Aiming System (Laser pattern) ○
3
Mounting Holes(4)
○
4
Internal Illuminator ○
5
Human Machine Interface ○
6
Power-Serial-I/O Cable
○
7
Ethernet Connector ○
8
Device label
