Getting Started
Mounting and Positioning

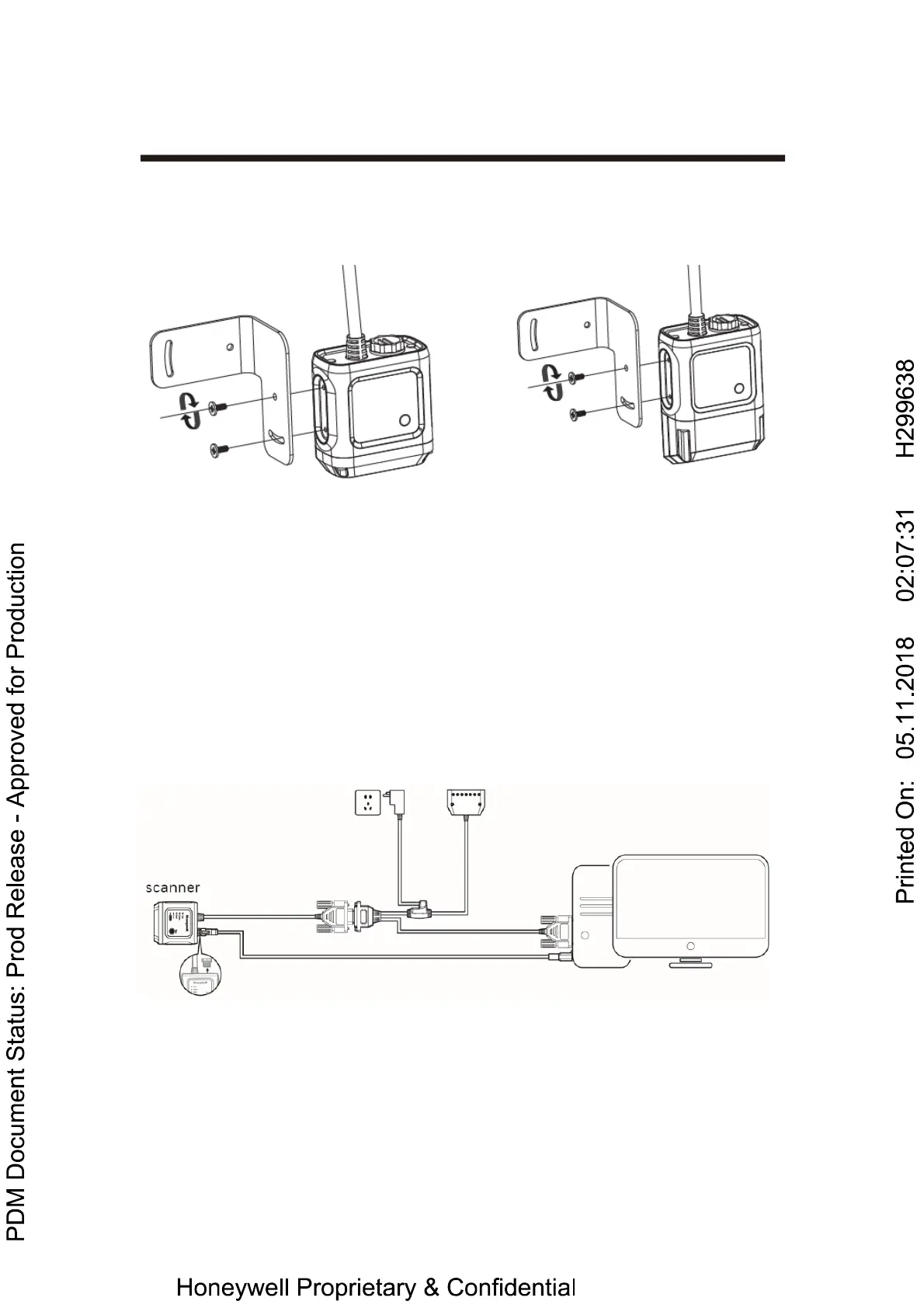

Using the HF800 mounting brackets you can obtain rotation on the various axes of
the reader as shown in the diagrams below:
• Mounting screw size : M2.5
Connections
Connecting with Ethernet
To connect the system in an Ethernet point to point configuration, you need
the hardware indicated as below.
In this layout, the data is transmitted to the Host from the HF800 on-board
Ethernet interface by use the Ethernet Cable and powered by the External 232/485
Cable.
Note: if the device is not powered by the customer device, a power adaptor is need
in this case.
Connecting with RS232
To connect the system in a serial point to point configuration, you need the
hardware indicated as below.
In this layout, the data is transmitted to the Host from the HF800 RS232
interface.
Note: the IO connector is combined with the RS232 interface, and if the device is not
powered by the customer device, a power adaptor is need in this case.
