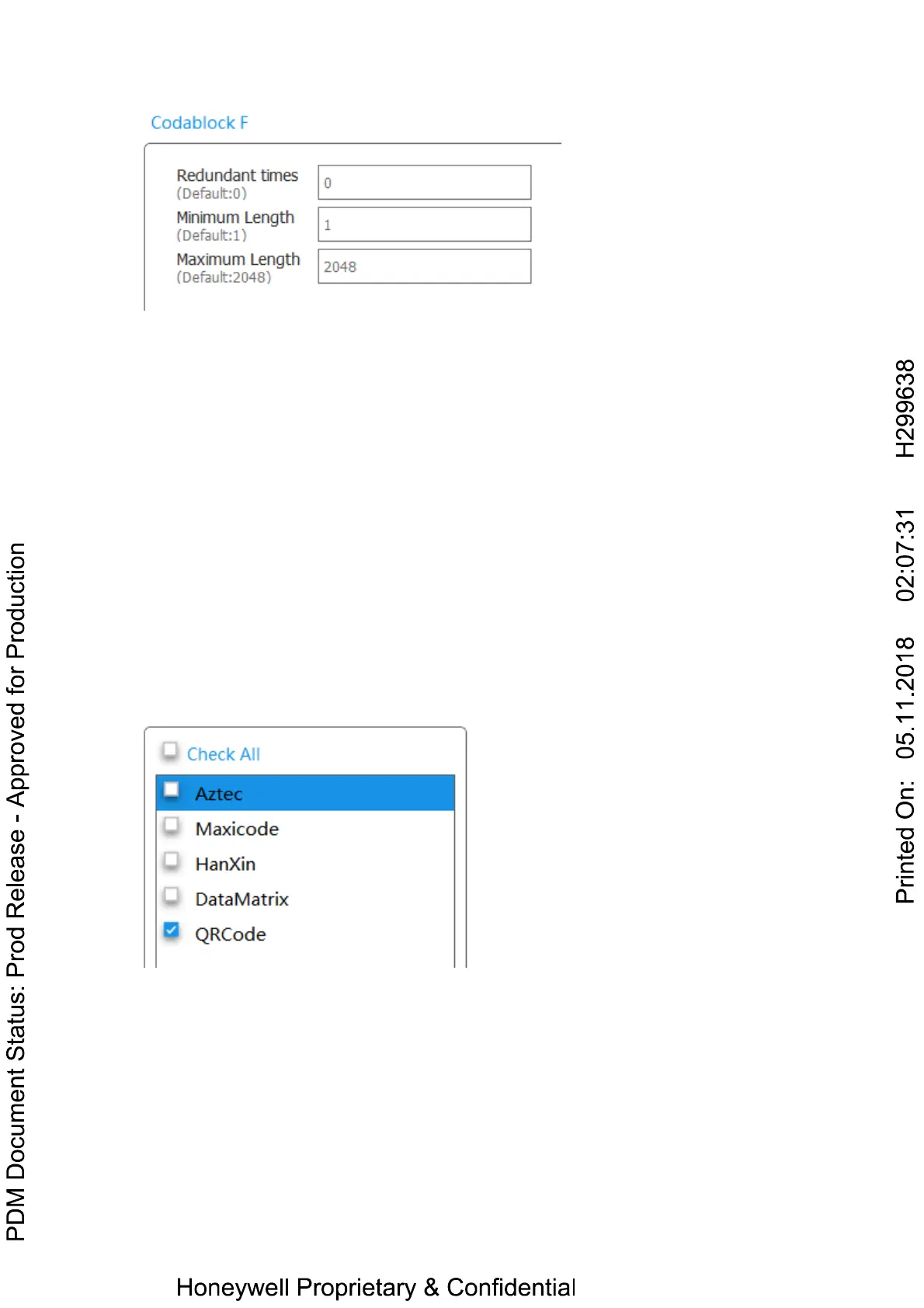

Redundant times: output the decode result only when got identical barcodes
information for specific times.
Minimum Length: output the decode result when the symbology length equal or
larger than the minimum length.
Maximum Length: output the decode result when the symbology length equal or
shorter than the maximum length.
2-D Symbologies
Enable/Disable all 2-D symbologies
Open DataMax
®
Configuration Program and connect the device first.
Go to the tab page “Symbologies” and click the “2D” sub page.
Check the check box “Check All” will enable all the 2-D symbologies present in the
list.
Uncheck it will disable all the 2-D symbologies present in the list.
Aztec
Click the “Aztec” in the left list then all its related parameters will be shown on the
right.
