Honeywell HF800 Series User Manual

14

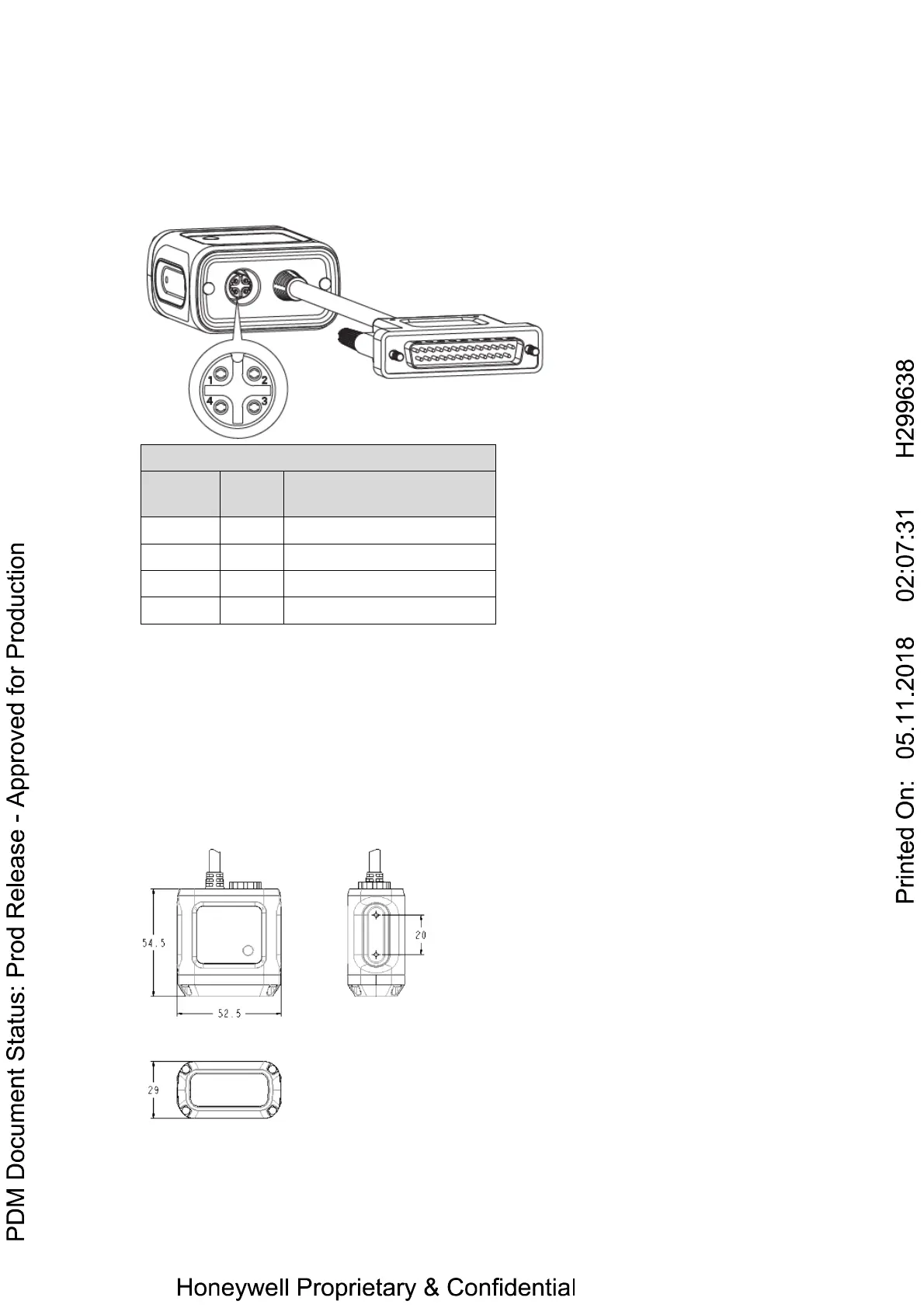

Ethernet M12 Connector
HF800 support one 10/100M adaptable Ethernet, DHCP is enabled by
default. If disabled, default IP is 192.168.1.110, net mask 255.255.255.0. M12 A
coding connector for water proof, user should buy a M12 to RJ45 Ethernet transform
cable from Honeywell in accessory list.
HF800 Ethernet Connector Pinout
Pin
number
Name
Function
1
TX+
Transmitted data (+)
2
TX-
Transmitted data (-)
3
RX+
Received data (+)
4
RX-
Received data (-)
Power requirements
HF800 reader supports a wide range of input power, from 10VDC to 30VDC,
maximum power consumption is 5W (internal illumination).
Mechanical Dimensions
1. Horizontal model: 54.5*52.5*29mm (L*W*H, Tolerance ±1mm)
2. Vertical model: 73.2*52.5*29mm (L*W*H, Tolerance ±1mm)
