Honeywell HF800 Series User Manual

6

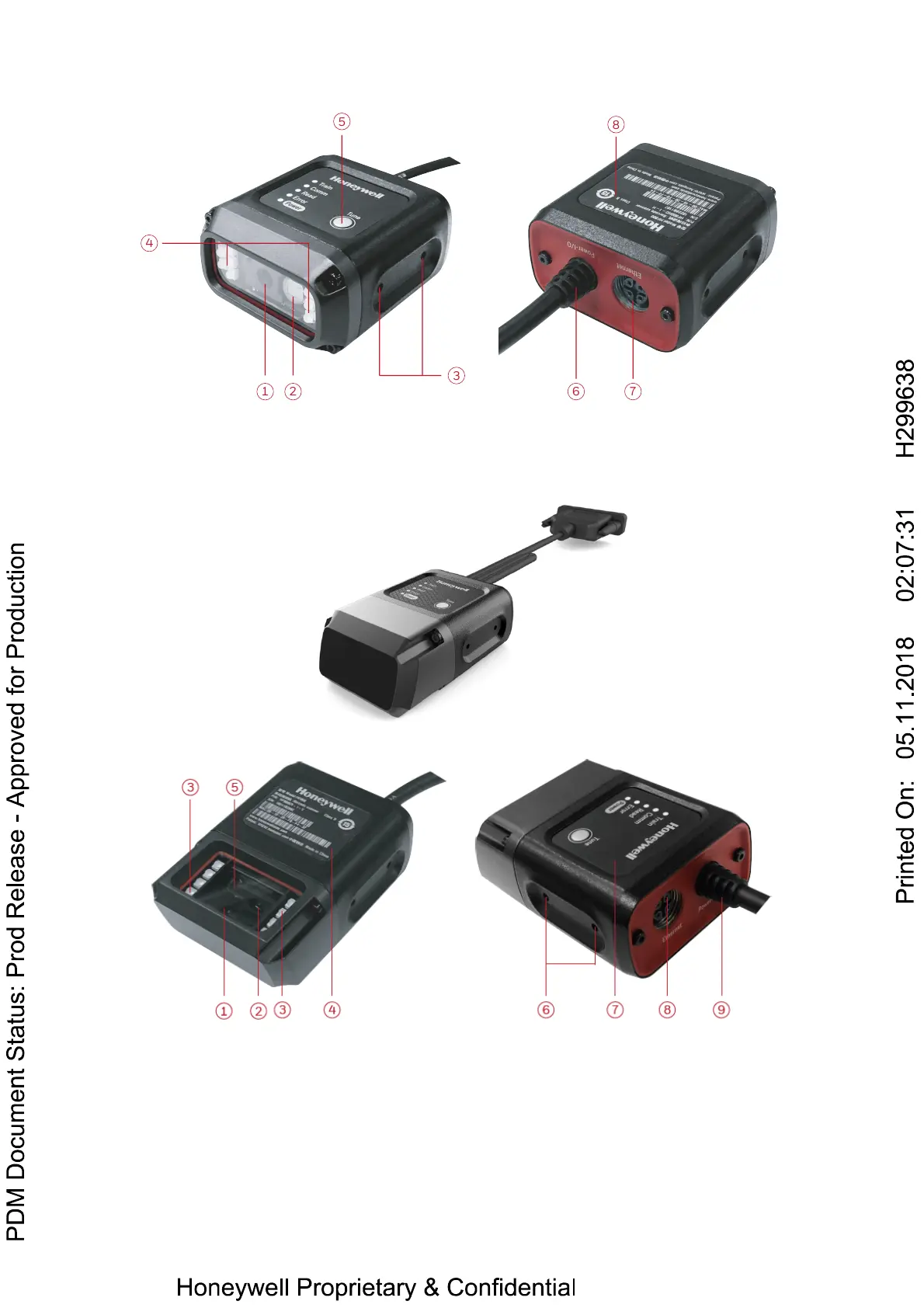

2. Vertical model
This vertical model type provide a kind of different way for mounting, which is usually
can be used in narrow space in vertical direction. This model provides a Green LED
aimer which helps user to locate the central position of the decoding area.
○
1
Internal Mirror ○
2
Lens ○
3
Internal Illuminator
○
4
Device label ○
5
Aiming System ○
6
Mounting Holes(4)
○
7
Human Machine Interface ○
8
Ethernet Connector ○
9
Power-Serial-I/O Cable
1 2
6 7
8
3
4
5
