2.2.5 Downstream Devices Tab
The NetAXS™ downstream devices are Monitorable Input Relay Output (MIRO)
boards. These boards provide the NetAXS™ panel with additional inputs and outputs.
The NetAXS™ panel supports two MIRO types:
• 32/0 – Provides 32 inputs and no outputs. The 32/0 MIRO boards must be
assigned network addresses 1 and 2.
• 2/16 – Provides two inputs and 16 outputs. The 2/16 MIRO boards must be
assigned network addresses 3-6.
Note: The MIRO network addresses are set by the DIP switches on each board. Refer
to the “Downstream I/O” section in the NetAXS™ Access Control Unit NX4L1
Installation Guide or the NetAXS™ Access Control Unit NX4S1 Installation Guide for
more information about setting MIRO DIP switches.
A NetAXS™ panel supports a maximum of six daisy-chained MIROs – two 32/0
boards and four 2/16 boards. The boards connect to the NetAXS™ panel’s
Downstream port (Terminal Block 10).
Click the
Downstream Devices tab:

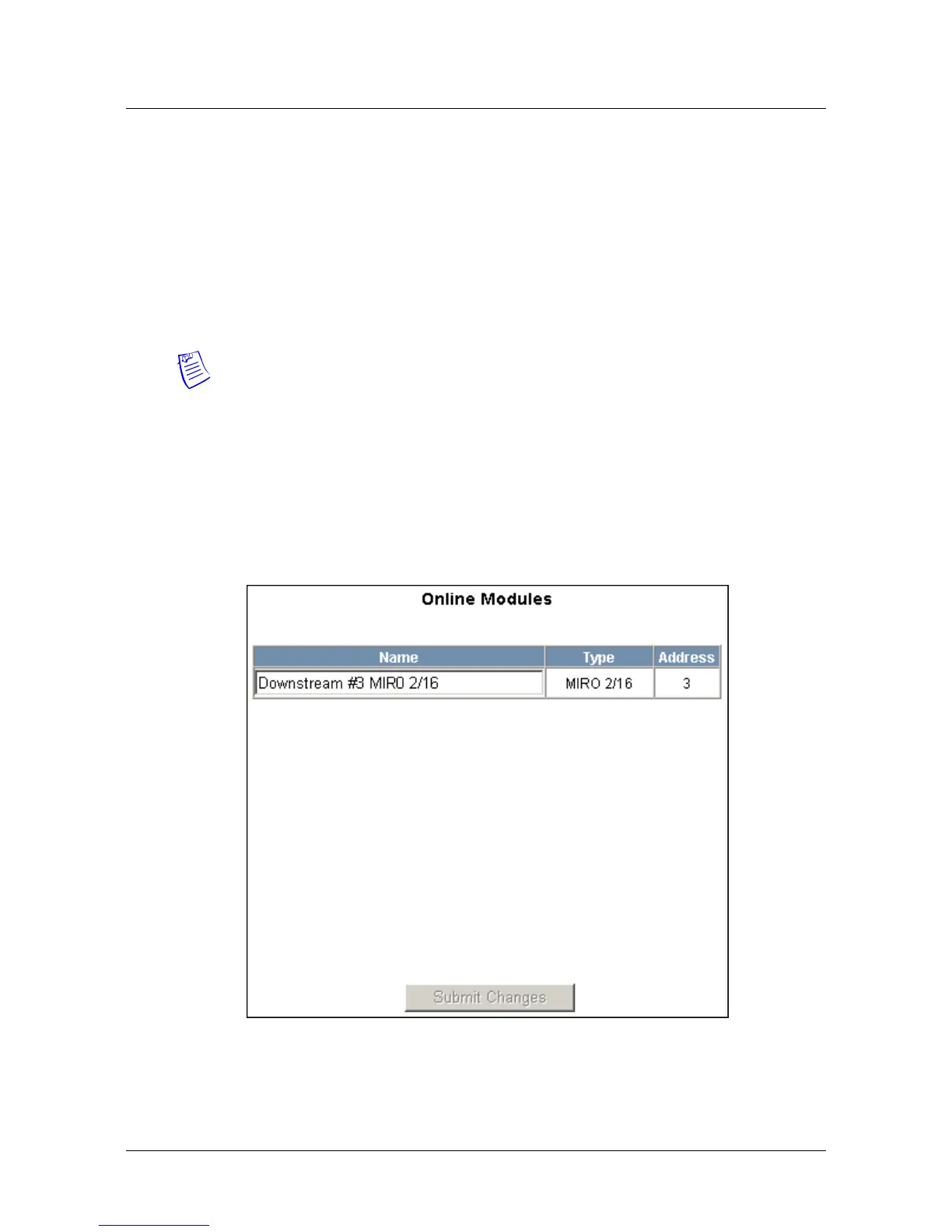

Figure 2-5: Configuration > System > Downstream Devices Tab
